MS20426AD3-3.5

Military Standard Solid Rivet

email this to someone
Description:

length: 7/32", diameter: 3/32", countersunk precision head, aluminum alloy, roughly 5600 pieces per pound, MS20426 series rivet

* Manufacturer certifications are shipped with your order FREE of charge
MS20426AD3-3.5
MS20426AD3-3.5
MS20426AD3-3.5
MS20426AD3-3.5
Add to Cart
Up to qty 12 ships same day if ordered before 4pm EST
MS20426AD3-3.5 Price:
buy now
$85.73 Pound
Quantity:
Pre-packaged bag qty: 1 ea
Add item to quote

MS20426AD3-3.5 Datasheet Features and Specification

Surface Treatment Specification:
Mil-a-8625 military specification 1st treatment response or mil-c-5541 military specification 2nd treatment response
Shank Style:
Straight w/radius chamfered tip
Shear Strength:
26000 single pounds per square inch
Surface Treatment:
Anodize or chromate
Shank Diameter:
Between 0.093 inches and 0.097 inches
Material Specification:
Qq-a-430 federal specification single material response
Material:
Aluminum alloy 2117
Head Major Diameter:
Between 0.175 inches and 0.183 inches
Head Style:
Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)
Fastener Length:
Between 0.209 inches and 0.229 inches
Countersink Angle:
Between 99.5 degrees and 100.5 degrees
Quick Specs
Material Aluminum

Additional Information

SKU / Model: MS20426AD335
NSN: 5320-01-005-4079
FSC: Rivets / 5320
Product Series: MS20426AD3
Pack Weight (Approx.) 1.000 lb
Minimum Qty (MOQ): 1 Pound
Schedule B: 7616.10.3000
ECCN: EAR99
National Motor Freight: 013630, Alum Rivets
Download PDF Version
MS20426AD3-3.5_Military-Fasteners-com.pdf
Worldwide Shipping In stock and ready to ship!

* report an issue on this page

Frequently bought together

Other customers frequently bought these along with MS20426AD3-3.5

Picture of MS20426AD3-3

MS20426AD3-3
Solid Rivet

in Rivets

Length: 3/16", diameter: 3/32", countersunk precision head, aluminum alloy, roughly 6400 pieces per pound, MS20426 series rivet

Picture of MS20426AD3-4

MS20426AD3-4
Solid Rivet

in Rivets

Length: 1/4", diameter: 3/32", countersunk precision head, aluminum alloy, roughly 5,000 pieces per pound, MS20426 series rivet

Picture of MS20426AD3-4.5

MS20426AD3-4.5
Solid Rivet

in Rivets

length: 9/32", diameter: 3/32", countersunk precision head, aluminum alloy, roughly 4300 pieces per pound, MS20426 series rivet

Picture of MS20470AD3-4.5

MS20470AD3-4.5
Solid Rivet

in Rivets

length: 9/32", diameter: 3/32", universal head, aluminum alloy, roughly 3575 pieces per pound, MS20470 series rivet

Picture of MS20470AD4-4.5

MS20470AD4-4.5
Solid Rivet

in Rivets

length: 9/32", diameter: 1/8", universal head, aluminum alloy, roughly 1920 pieces per pound, MS20470 series rivet

Picture of MS21059L3

MS21059L3
Self-Locking Nutplate

in Nuts

thread: 10-32, locking nutplate, two lug, floating, low height, cadmium plated carbon steel, with dry film lube, plain rivet holes, MS21059 series nut

More MS20426AD3 solid rivets

MS20426AD3-9

Length: 9/16in., diameter: 3/32in., countersunk precision head aluminium alloy, 5320-00-117-6943

MS20426AD3-8A-5

Solid Rivet

MS20426AD3-8-5

$0.20 Ea

MS20426AD3-8

Length: 1/2in. diameter: 3/32 inch countersunk precision head aluminium alloy

MS20426AD3-7A

5320-01-542-1577 Solid Rivet

MS20426AD3-7.5

Length: 15/32in., diameter: 3/32in., countersunk precision head aluminium alloy

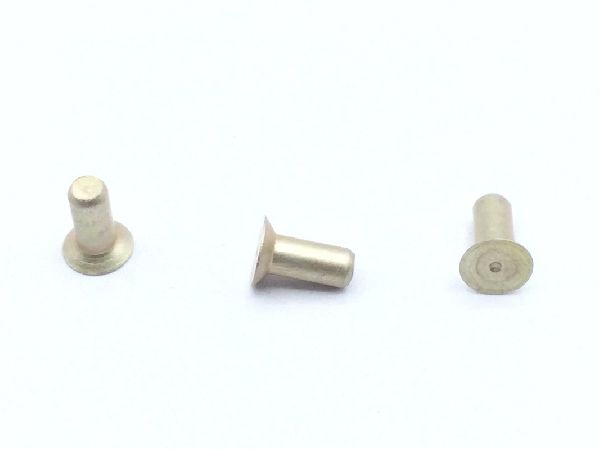

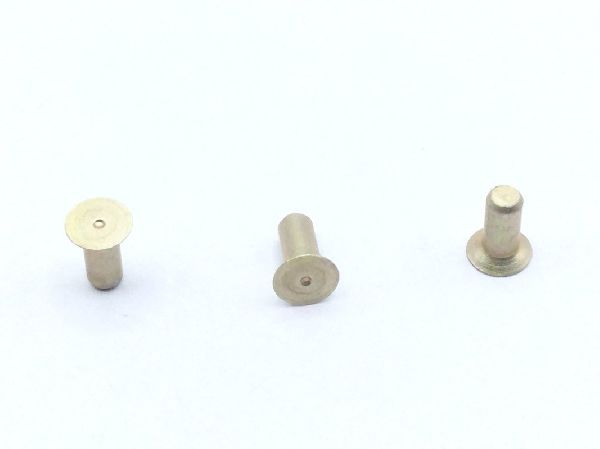

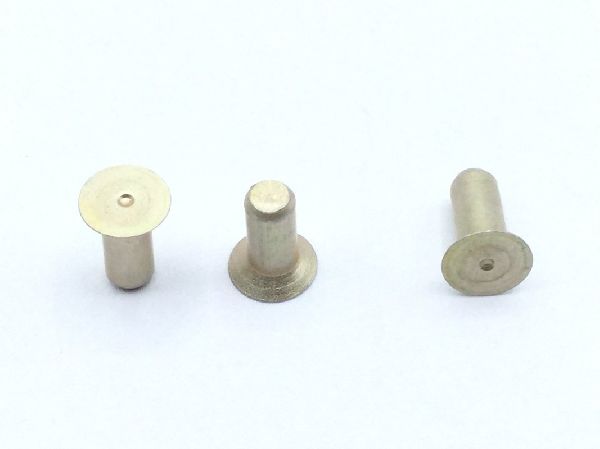

Product Image Gallery
