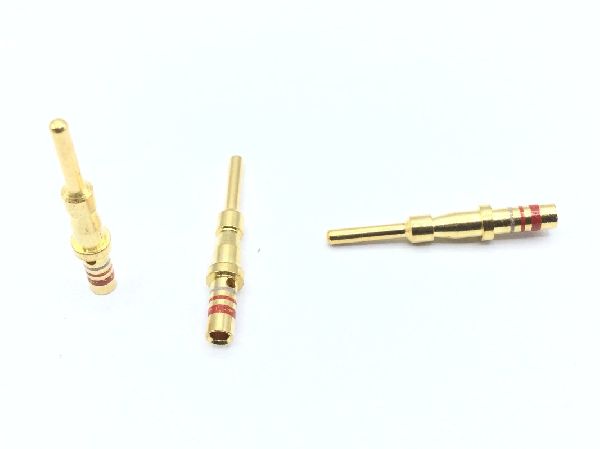

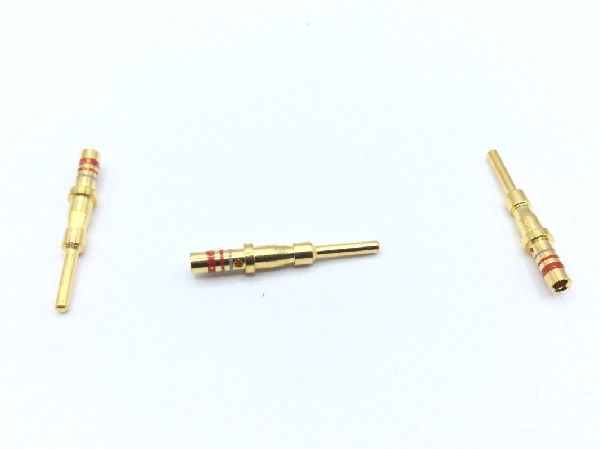

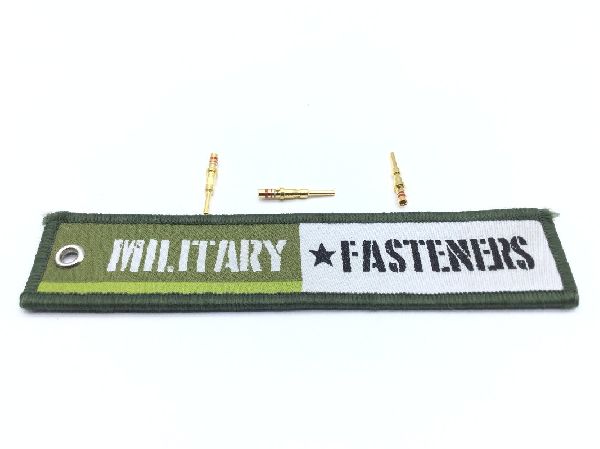

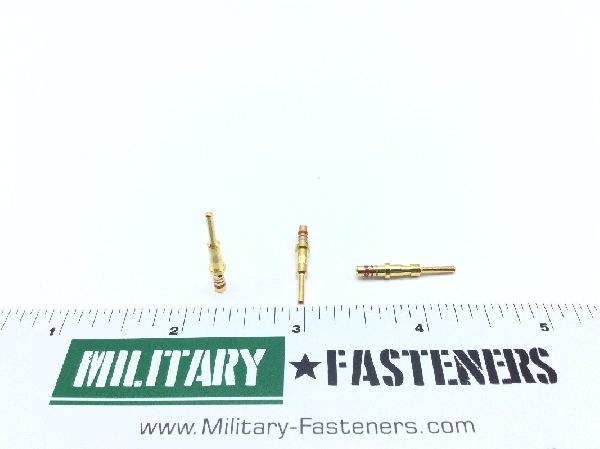

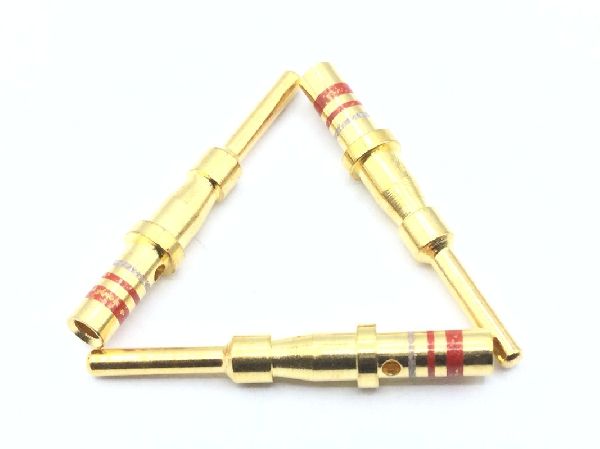

M39029/31-229

Electrical Contact

email this to someone
Description:

pin, size 16, fits series: mil-c-26482 ser i, mil-c-26500, mil-c-26518, use insertion / removal tool m81968/14-03

* Manufacturer certifications are shipped with your order FREE of charge
M39029/31-229
M39029/31-229
M39029/31-229
M39029/31-229
M39029/31-229
M39029/31-229
Add to Cart Up to qty 475 ships same day if ordered before 4pm EST
M39029/31-229 Price:
buy now
$2.08 Each
Quantity:
Pre-packaged bag qty: 25 ea
* Sold in increments of 25
Add item to quote

M39029/31-229 Datasheet Features and Specification

Special Features:
Basic item identification number bin-229
Precious Material And Weight:
Troy 0.005 rhodium grains
Precious Material And Location:
Contact rhodium
Precious Material:
Rhodium
Pin Length:
Between 0.311 inches and 0.315 inches
Pin Diameter:
Between 0.061 inches and 0.063 inches
Pin Accommodation Length:
Between 0.234 inches and 0.266 inches
Overall Length:
0.905 inches
Overall Diameter:
Between 0.144 inches and 0.148 inches
Mounting Method:
Any acceptable
Material:
Copper alloy contact
Material:
Copper alloy body
Iii Style Designator:
Pin crimp contact
Identification Code Color:
Red and red and white
Cable Entrance Diameter:
Between 0.085 inches and 0.087 inches
Crimping Tool Identifying Number:
M22520/1-01
Specification Data:
81349-mil-c-39029/31 government specification
Surface Treatment:
Rhodium contact
Terminal Type And Quantity:
1 crimp axially at one end
Test Data Document:
Etc.). individual manufactureer standards 96906-ms24254 standard (includes industry or association standards
Quick Specs
Material Copper

Additional Information

Alternate Part Numbers

  • M39029-31-229
SKU / Model: M3902931229
NSN: 5999-00-901-3238
FSC: Miscellaneous Electrical and Electronic Components / 5999
Product Series: M39029/31
Pack Weight (Approx.) 0.411 lb
Minimum Qty (MOQ): 25
ECCN: EAR99
National Motor Freight: 061300, Circuit Breaker / Switch Noi
Download PDF Version
M39029/31-229_Military-Fasteners-com.pdf
