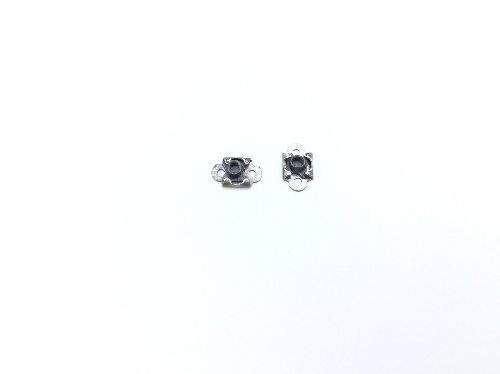

NAS1068RC04M

Locking Nutplate Self

email this to someone
Description:

Thread Size: 7/64", Nut Length: 31/64", Nut Height: 9/64", two lug

* Manufacturer certifications are shipped with your order FREE of charge
NAS1068RC04M
NAS1068RC04M
NAS1068RC04M
Add to Cart Up to qty 60 ships same day if ordered before 4pm EST
NAS1068RC04M Price:
buy now
$6.86 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

NAS1068RC04M Datasheet Features and Specification

Center To Center Distance Between Mounting Holes Along Length:
Between 0.294 inches and 0.298 inches
Distance From Aperture Center To Mounting Hole Center:
Between 0.147 inches and 0.149 inches
Features Provided:
Floating nut
Locking Feature:
Prevailing torque all metal design
Lubrication:
Dry film lubricant
Material:
Iron alloy 660
Material Specification:
Ams 5525 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response
Mounting Hole Arrangement Style:
2 holes
Mounting Hole Diameter:
Between 0.066 inches and 0.071 inches
Thread Size:
0.112 inches
Nut Height:
0.153 inches
Nut Length:
0.498 inches
Nut Mounting Provision:
Straight holes
Nut Style:
Plate
Plate Thickness:
0.032 inches
Plate Width:
0.315 inches
Tempurature Rating:
450.0 degrees fahrenheit
Thread Class:
3b
Thread Direction:
Right-hand
Thread Qty Per Inch (tpi):
40
Thread Series:
Unjc
Quick Specs
Thread Size 4
Thread Qty 40
Thread Class 3B
Material Iron

Additional Information

SKU / Model: NAS1068RC04M
NSN: 5310-01-217-0708
FSC: Nuts and Washers / 5310
Product Series: NAS1068RC
Pack Weight (Approx.) 0.019 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 093486, Bolts,nuts Or Screws, Noi (sub 3)
Download PDF Version
NAS1068RC04M_Military-Fasteners-com.pdf
