HL19PB6-13

Hi-Lok™ Rivet Pin

email this to someone

Description:

flush shear head, alloy steel cadmium plated

* Manufacturer certifications are shipped with your order FREE of charge

Add to Cart Up to qty 200 ships same day if ordered before 4pm EST

HL19PB6-13 Price:	buy now $5.20 Each
Quantity: Pre-packaged bag qty: 10 ea
* Sold in increments of 10

Add item to quote

HL19PB6-13 Datasheet Features and Specification

Thread Size:

0.190 inches

Thread Series Designator:

Unjf (fine thread with external controlled root radius)

Thread Qty Per Inch (tpi):

Thread Class:

Thread Direction:

Right-hand

Shank Diameter:

Between 0.1885 inches and 0.1895 inches

Shank Style:

Threaded straight pin-rivet

Surface Treatment:

Cadmium

Surface Treatment Specification:

Cl 3 federal specification single treatment response type 2 qq-p-416

Min. Tensile Strength (psi):

160 pounds per square inch

Fastener Length:

Between 1.127 inches and 1.147 inches

Grip Length:

Between 0.807 inches and 0.817 inches

Head Major Diameter:

Between 0.2966 inches and 0.3016 inches

Head Style:

Flush countersunk

Material:

Steel

Material Specification:

Mil-s-5626 military specification 1st material response or mil-s-6049 military specification 2nd material response or mil-s-6758 military specification 3rd material response

Width Between Flats:

Between 0.0791 inches and 0.0806 inches

End Application:

T56-a-7/15 (c-130b/e/h/n/p) aircraft c-2a (reprocured); engine stratolifter c-135; aircraft galaxy c-5; aircraft f-111; aircraft hx unique; fms-a7 aircraft; joint stars target radar system; aircraft hx unique; helicopter starlifter c-141; aircraft w/s: aircraft

Countersink Angle:

100.0 degrees

Quick Specs

Thread Qty	32
Thread Series	UNJF
Thread Class	3A
Material	Steel

Additional Information

SKU / Model:	HL19PB613
NSN:	5320-00-959-7303
FSC:	Rivets / 5320
Product Series:	HL19PB6
Pack Weight (Approx.)	0.000 lb
Minimum Qty (MOQ):	10
ECCN:	EAR99
National Motor Freight:	106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version HL19PB6-13_Military-Fasteners-com.pdf

* report an issue on this page

More HL19PB6 pin-rivets

HL19PB6-9

Pin-Rivet 5320-01-164-1692, Hi-Lok Pin Flush Shear Head 3/16 diameter 10-32 Thread, 9/16in. Max

HL19PB6-8

flush shear head alloy steel cadmium plated

HL19PB6-7

Hi-Lok Pin flush shear head 3/16 diameter 10-32 Thread, 7/16in. Max, 5320-00-969-4517

HL19PB6-6

Flush shear head rivet alloy steel cadmium plated

HL19PB6-5

Flush shear head rivet alloy steel cadmium plated pin

HL19PB6-4

100 degree shear head pin rivet alloy steel cadmium plated diameter: 3/16 grip length: 1/4

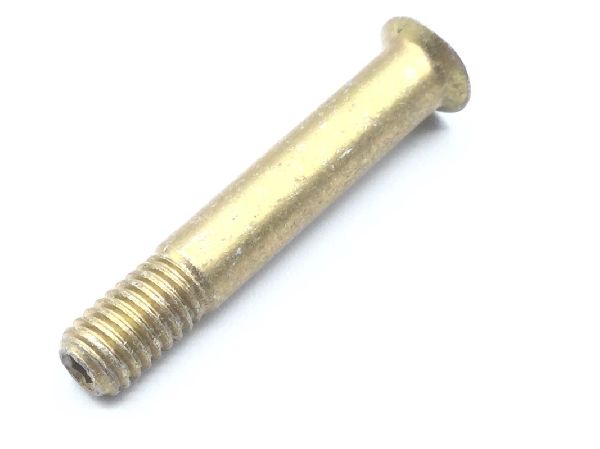

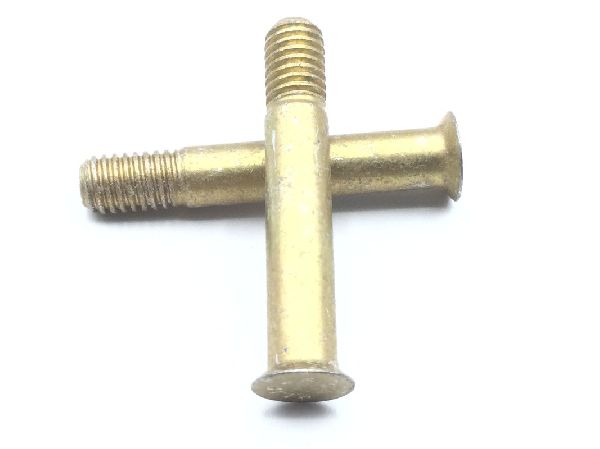

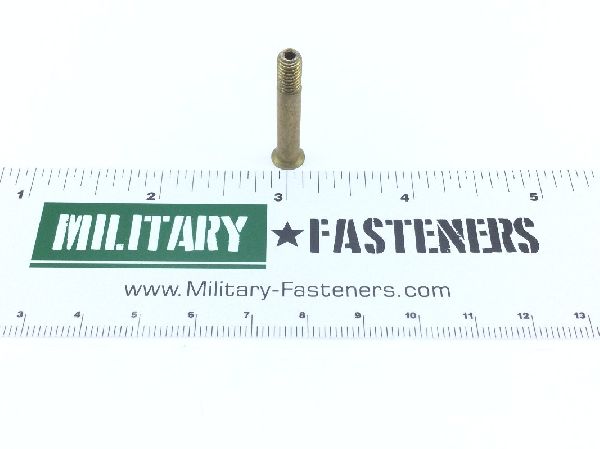

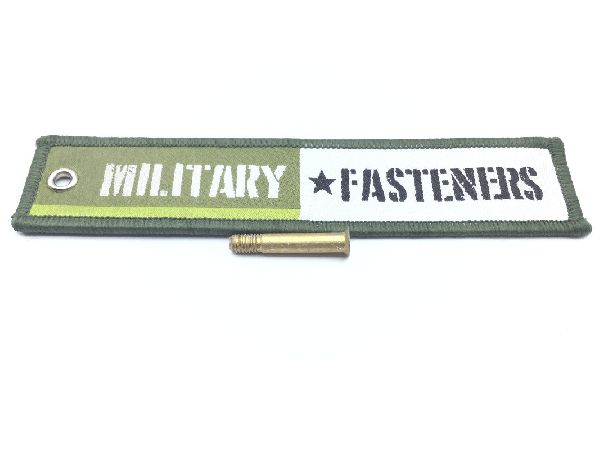

Product Image Gallery
