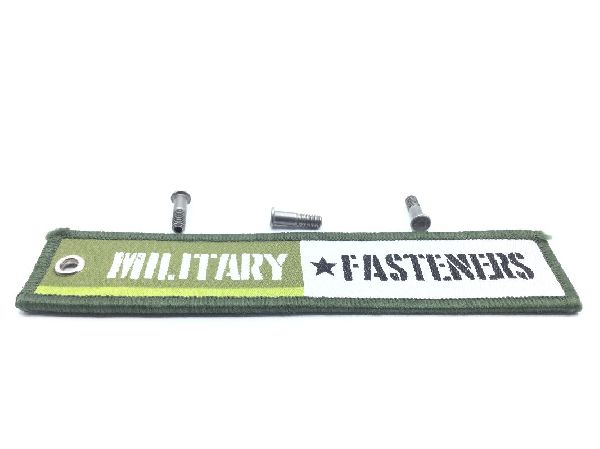

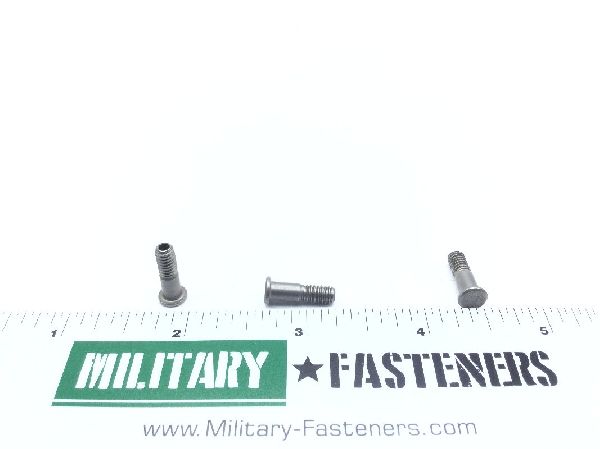

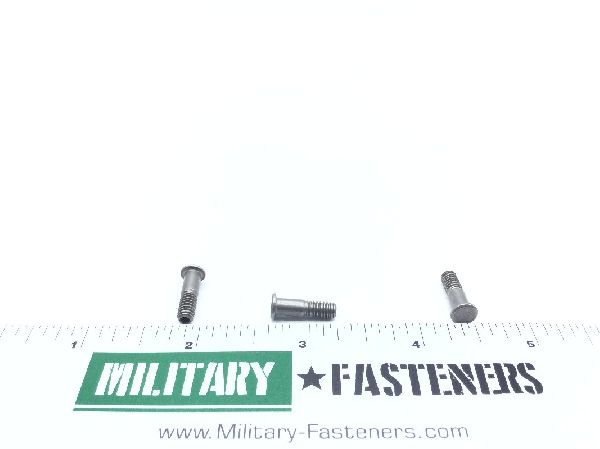

HL40-5-4

Hi-Lok™ Rivet Pin

email this to someone
Description:

Fastener Length: 9/16", Thread Size: 5/32",

* Manufacturer certifications are shipped with your order FREE of charge
HL40-5-4
HL40-5-4
HL40-5-4
HL40-5-4
HL40-5-4
HL40-5-4
Add to Cart Up to qty 80 ships same day if ordered before 4pm EST
HL40-5-4 Price:
buy now
$5.47 Each
Quantity:
Pre-packaged bag qty: 10 ea
* Sold in increments of 10
Add item to quote

HL40-5-4 Datasheet Features and Specification

Thread Class:
3a
Thread Direction:
Right-hand
Fastener Length:
0.552 inches minimum and 0.572 inches maximum
Head Style:
Err-090
Head Height:
0.037 inches minimum and 0.047 inches maximum
Width Between Flats:
0.079 inches minimum and 0.080 inches maximum
Shank Diameter:
0.1630 inches minimum and 0.1635 inches maximum
Shank Style:
Pin-rivet, straight, threaded
Head Major Diameter:
0.242 inches minimum and 0.262 inches maximum
Lubrication:
Cetyl alcohol
Grip Length:
0.255 inches maximum
Thready Qty Per Inch (tpi):
32
Thread Size:
0.164 inches
Shear Strength:
95000 single pounds per square inch
Material:
Iron alloy 660 overall
Material Specification:
Ams 5737 assn std single material response overall
Surface Treatment:
Passivate overall
Surface Treatment Specification:
258,fscm 73197 mfr ref single treatment response overall
Thread Series Designator:
Unjc

Additional Information

SKU / Model: HL4054
NSN: 5320-00-284-2172
FSC: Rivets / 5320
Product Series: HL40
Pack Weight (Approx.) 0.040 lb
Minimum Qty (MOQ): 10
ECCN: EAR99
National Motor Freight: 106510, Rivets I / S Plain / Galvanized Etc
Download PDF Version
HL40-5-4_Military-Fasteners-com.pdf
