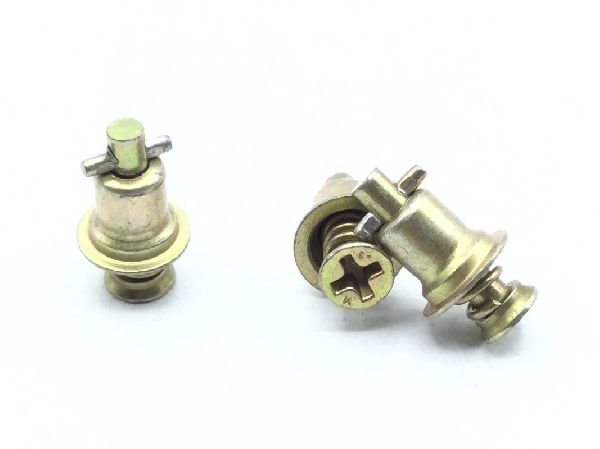

1127004-3 Turnlock Fastener Stud Assembly

1127004-3 Turnlock Fastener Stud Assembly (2)

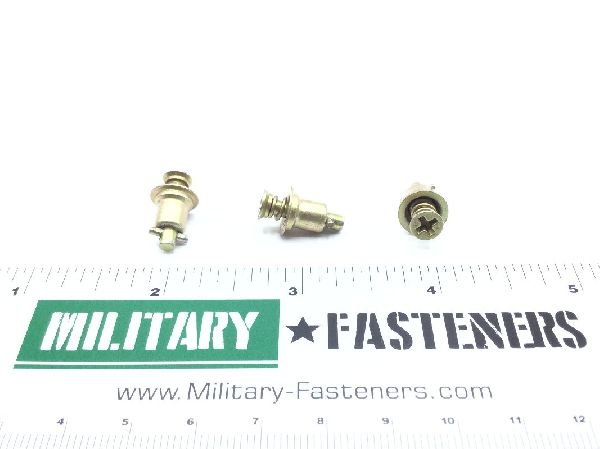

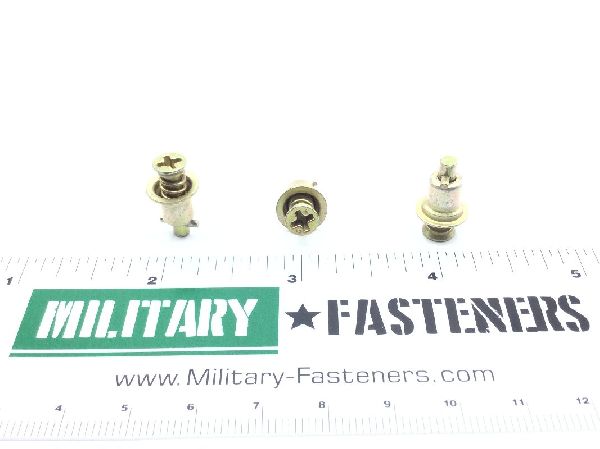

1127004-3 Turnlock Fastener Stud Assembly (3)

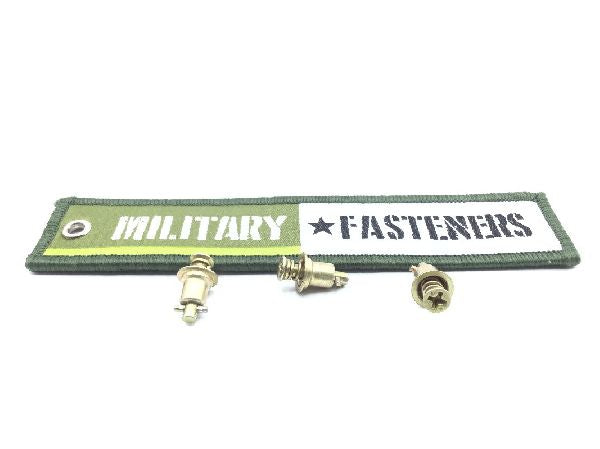

1127004-3 Turnlock Fastener Stud Assembly (4)

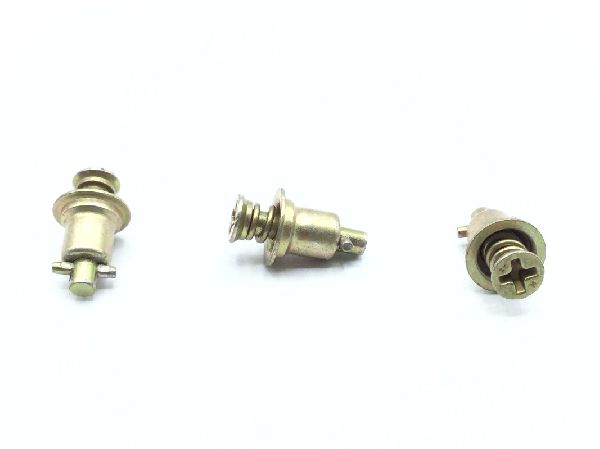

1127004-3 Turnlock Fastener Stud Assembly (5)

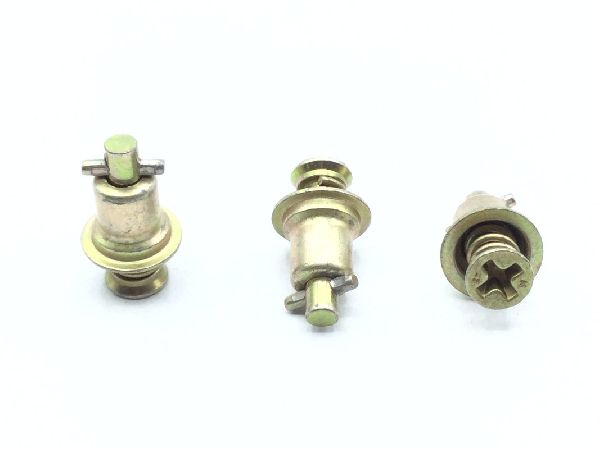

1127004-3 Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

1127004-3 Turnlock Fastener Stud Assembly

ECCN: EAR99
Schedule: 7318.15.5000

Price per Unit $9.13

Units per Pack 5

Price per Pack $45.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $45.65

Add item to quote

Material

Steel pin

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.521 inches and 0.531 inches
Drive Type: Cross recess
Eyelet Length: 0.328 inches
Eyelet Outside Diameter: Between 0.244 inches and 0.250 inches
Material Accommodated Thickness: Between 0.090 inches and 0.119 inches
Securing Device Type: Ring
Stud Assembly Style: Stud assembly
Stud Head Height: Between 0.069 inches and 0.076 inches
Turnlock Stud Head Style: Stud head
Diameter: Between 0.244 inches and 0.256 inches
