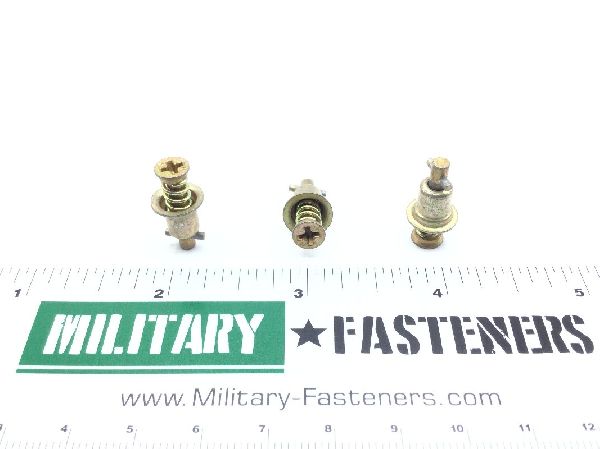

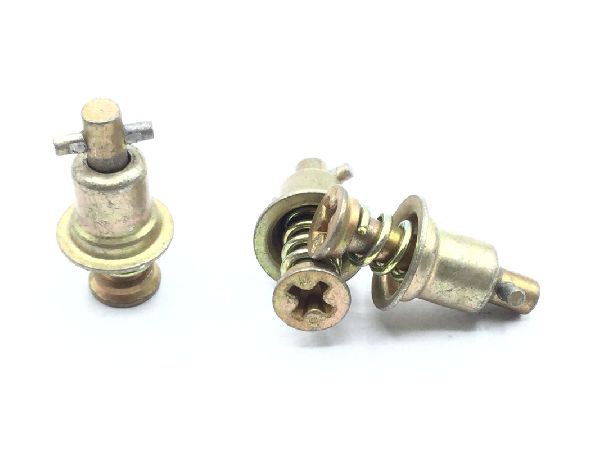

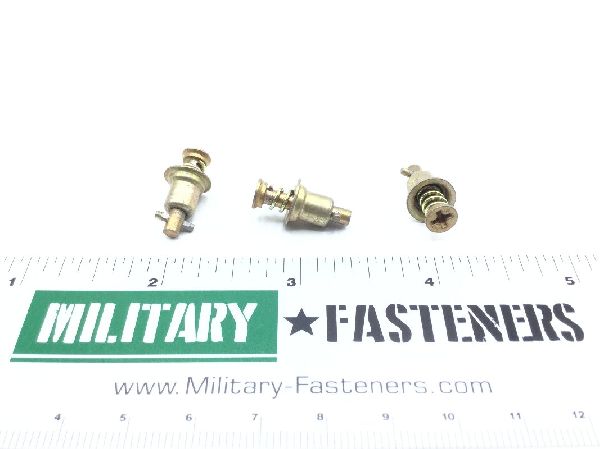

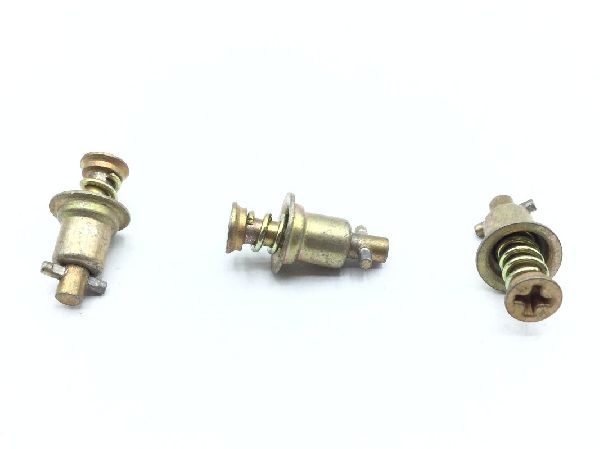

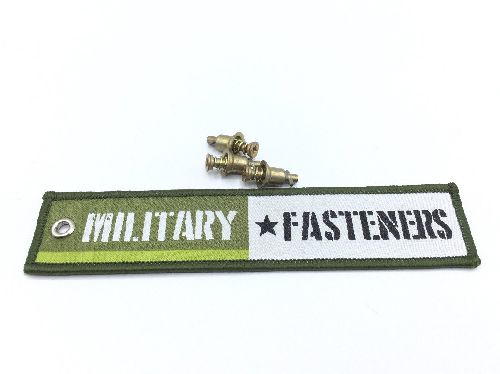

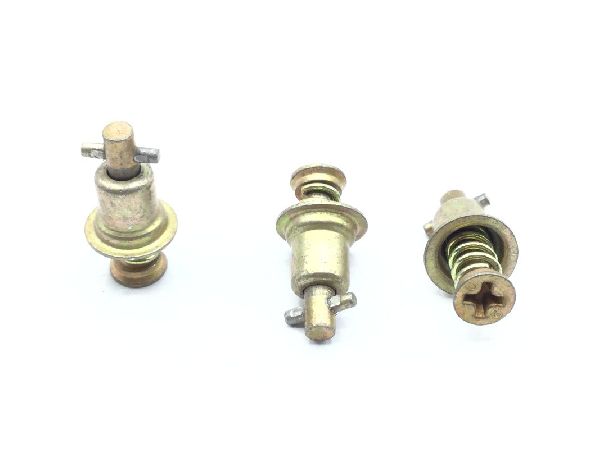

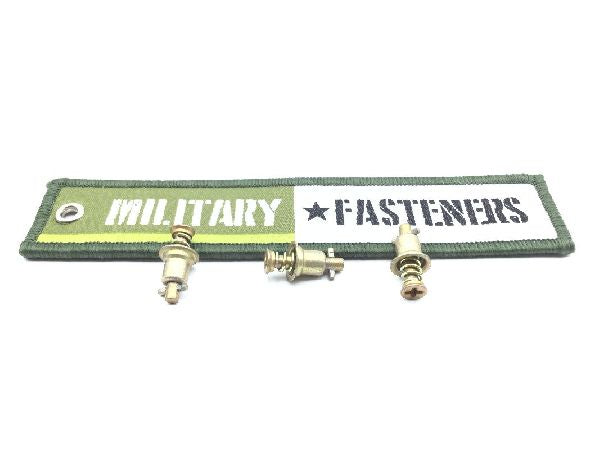

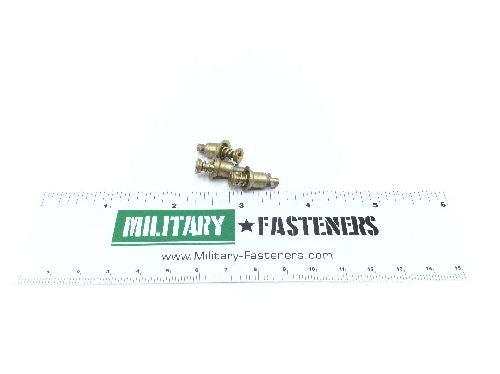

1127004-6 Turnlock Fastener Stud Assembly
- ECCN
- EAR99
- Schedule
- 7318.15.5030
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Engaging Member To Largest Bearing Surface Of Head
- Between 0.611 inches and 0.621 inches
- Drive Type
- Cross recess
- Eyelet Length
- 0.328 inches
- Eyelet Outside Diameter
- Between 0.244 inches and 0.250 inches
- Material Accommodated Thickness
- Between 0.150 inches and 0.569 inches
- Material Specification
- Astm a322 assn standard 1st material response stud or astm a331 assn standard 2nd material response stud
- Stud Assembly Style
- Stud assembly
- Stud Head Height
- Between 0.069 inches and 0.076 inches
- Turnlock Stud Head Style
- Stud head
- Diameter
- Between 0.388 inches and 0.398 inches
