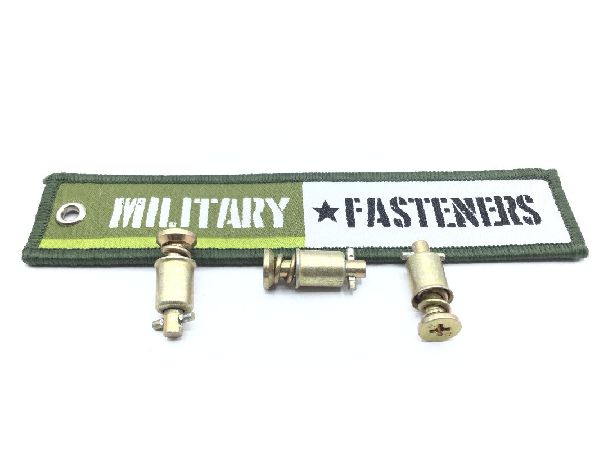

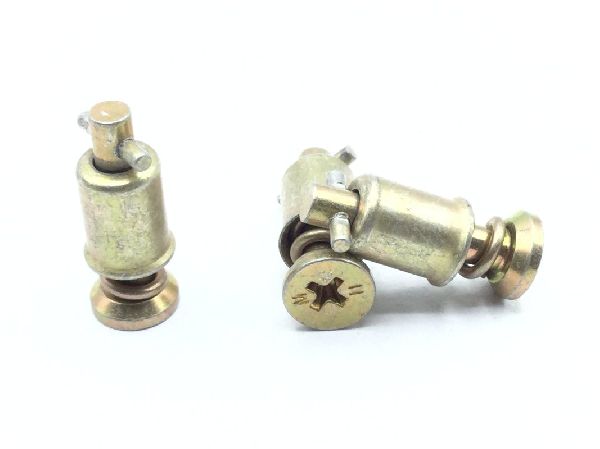

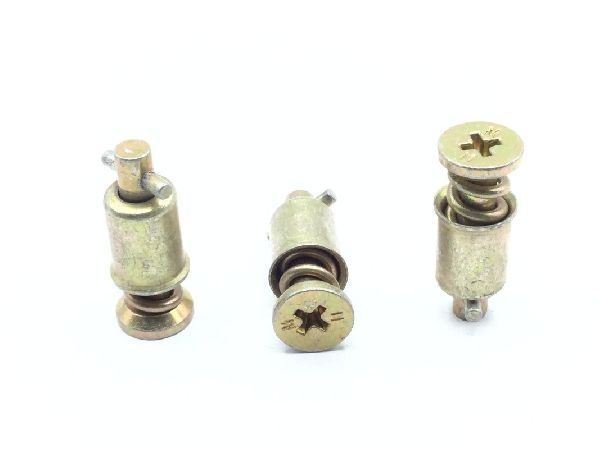

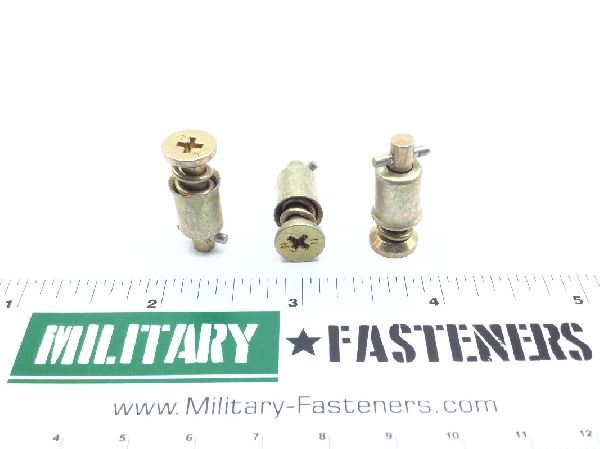

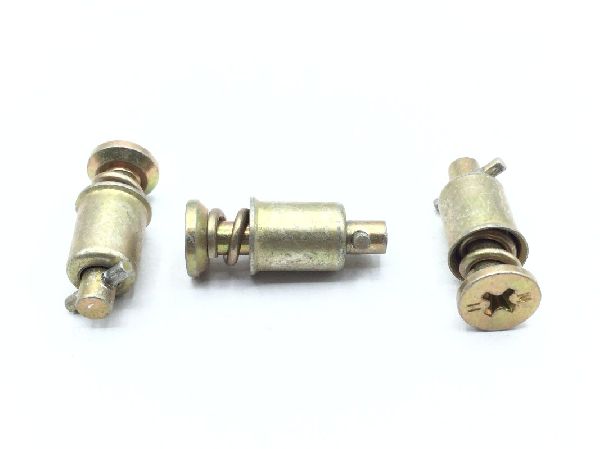

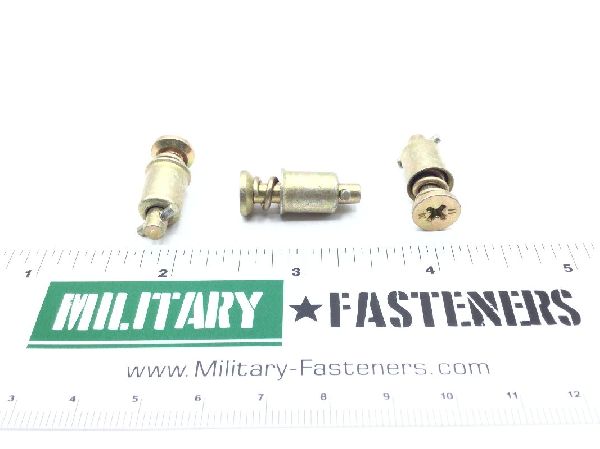

1142005-11 Turnlock Fastener Stud Assembly
- ECCN
- EAR99
- Schedule
- 7318.15.5000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Engaging Member To Largest Bearing Surface Of Head
- Between 0.643 inches and 0.653 inches
- Drive Type
- Cross recess
- Eyelet Length
- 0.472 inches
- Eyelet Outside Diameter
- Between 0.341 inches and 0.348 inches
- Material Accommodated Thickness
- Between 0.351 inches and 0.380 inches
- Material Specification
- Qq-w-470 federal specification single material response ejector spring
- Stud Assembly Style
- Stud assembly
- Stud Head Height
- 0.102 inches
- Turnlock Stud Head Style
- Stud head
- Diameter
- Between 0.377 inches and 0.384 inches
