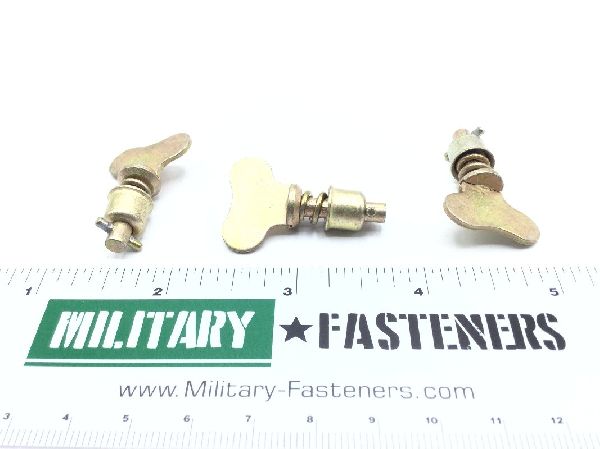

1142007-6 Turnlock Fastener Stud Assembly

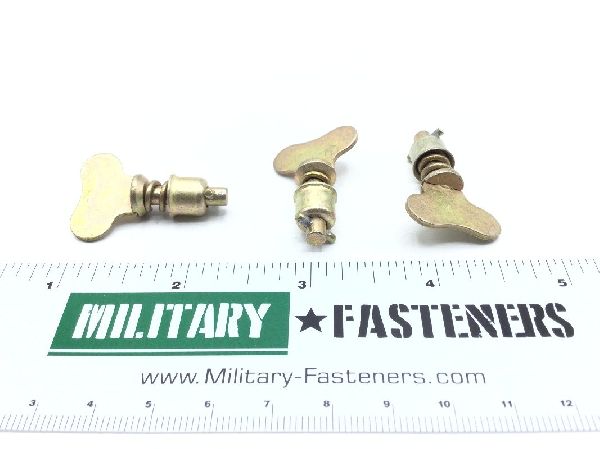

1142007-6 Turnlock Fastener Stud Assembly (2)

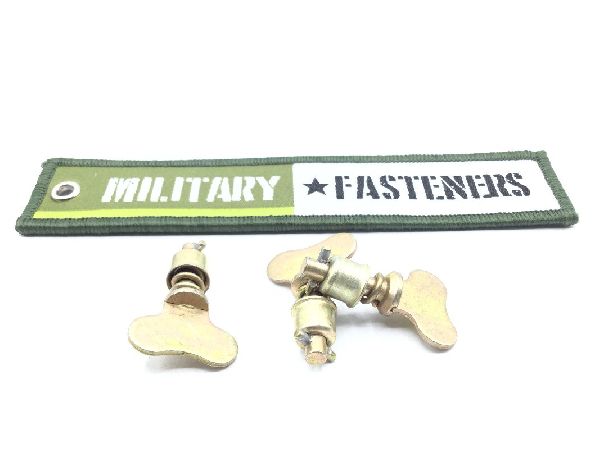

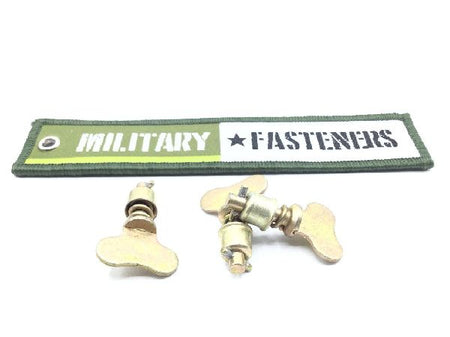

1142007-6 Turnlock Fastener Stud Assembly (3)

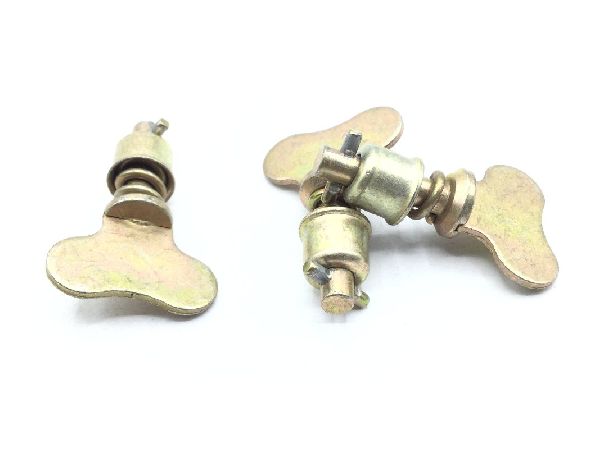

1142007-6 Turnlock Fastener Stud Assembly (4)

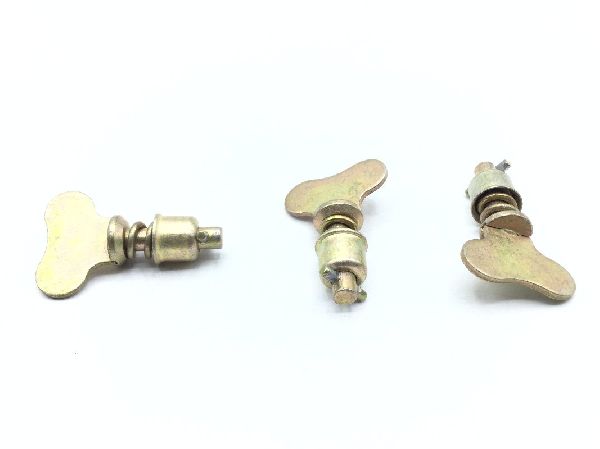

1142007-6 Turnlock Fastener Stud Assembly (5)

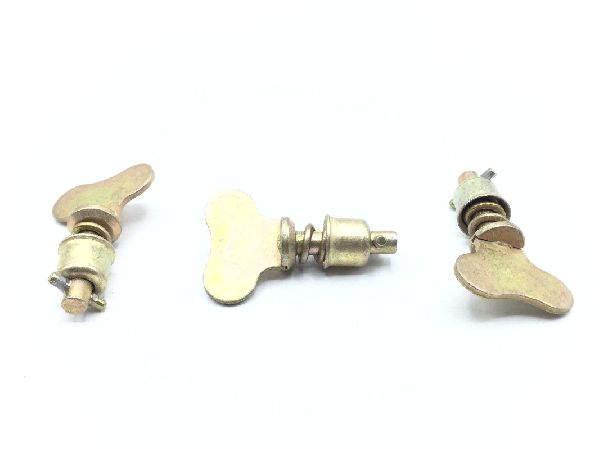

1142007-6 Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

1142007-6 Turnlock Fastener Stud Assembly

ECCN: EAR99
Schedule: 7318.15.5000

Price per Unit $13.79

Units per Pack 5

Price per Pack $68.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $68.95

Add item to quote

Material

Steel pin

Surface Treatment

Cl 2 federal specification all treatment responses type 2 qq-p-416

Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.573 inches and 0.588 inches
Eyelet Length: 0.322 inches
Eyelet Outside Diameter: Between 0.341 inches and 0.348 inches
Head Length: Between 0.850 inches and 0.890 inches
Material Accommodated Thickness: Between 0.201 inches and 0.230 inches
Material Specification: Qq-w-470 federal specification single material response pin
Stud Assembly Style: Stud assembly
Turnlock Stud Head Style: Flat countersunk wing
