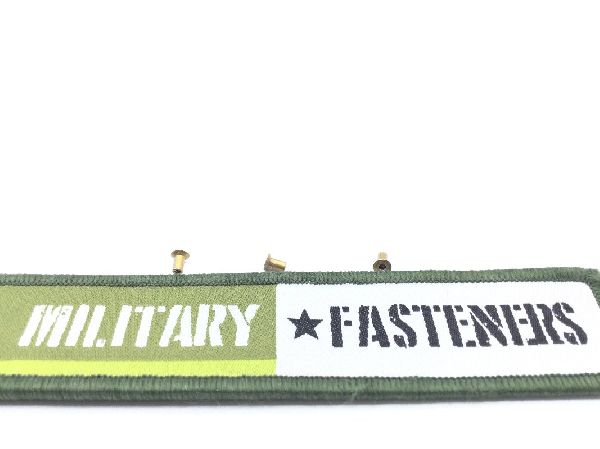

1204-0306 Blind Rivet (4)

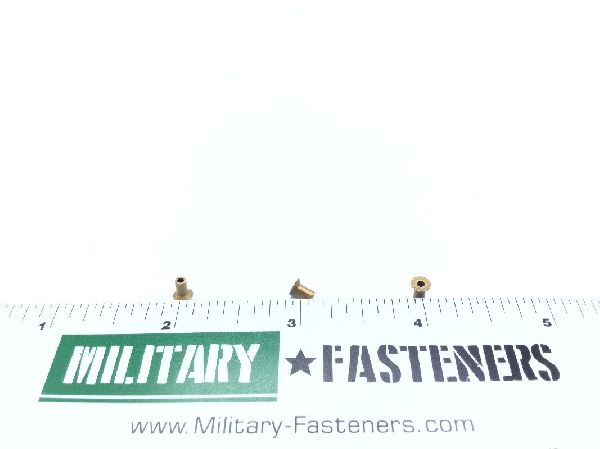

1204-0306 Blind Rivet (5)

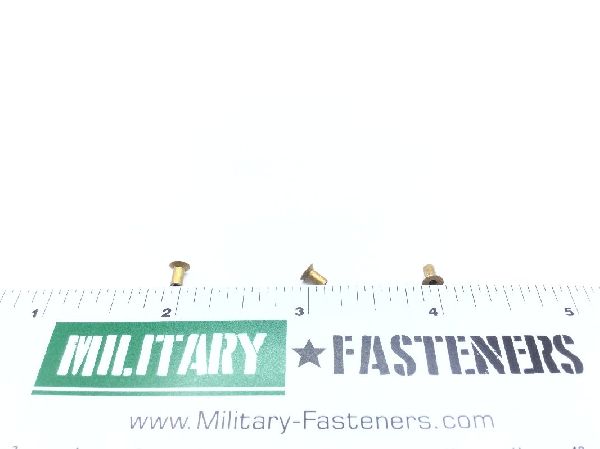

1204-0306 Blind Rivet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

1204-0306 Blind Rivet

ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Flush (flat) countersunk (included angle - less than 135 degrees w or w/o chamfer)

Material

Steel comp 1012

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Countersink Angle: 100.0 degrees
Expansion Device: Knob stem-type k
Fastener Length: Between 0.183 inches and 0.193 inches
Grip Length: Between 0.063 inches and 0.125 inches
Head Major Diameter: Between 0.178 inches and 0.186 inches
Shank Diameter: Between 0.095 inches and 0.097 inches
Shank Style: Pull through hollow shank
