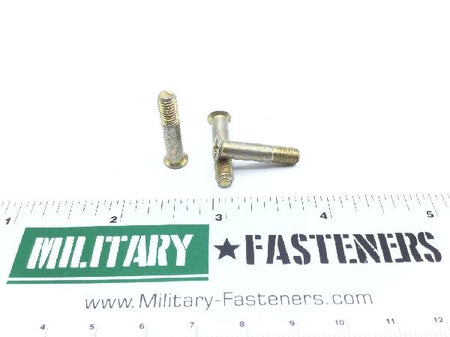

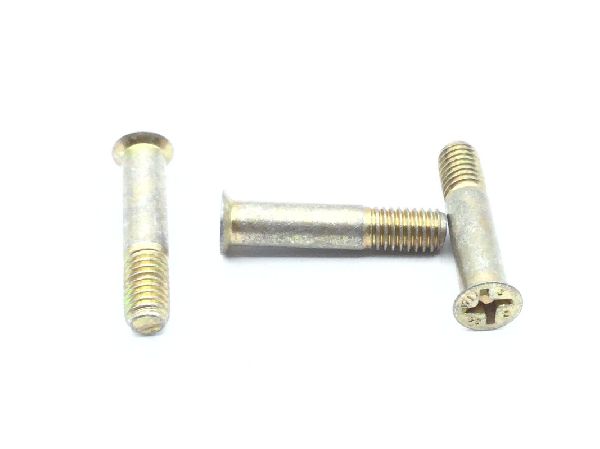

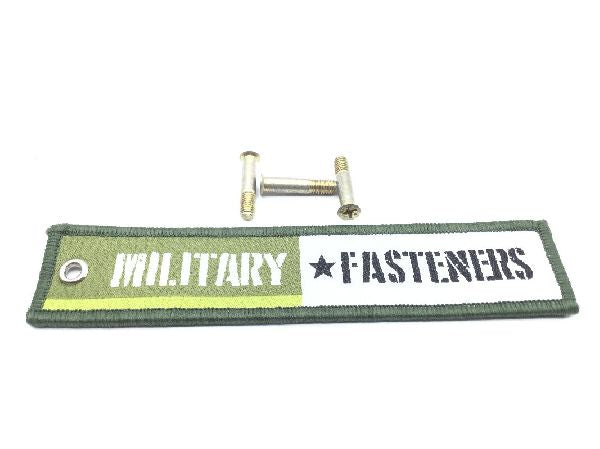

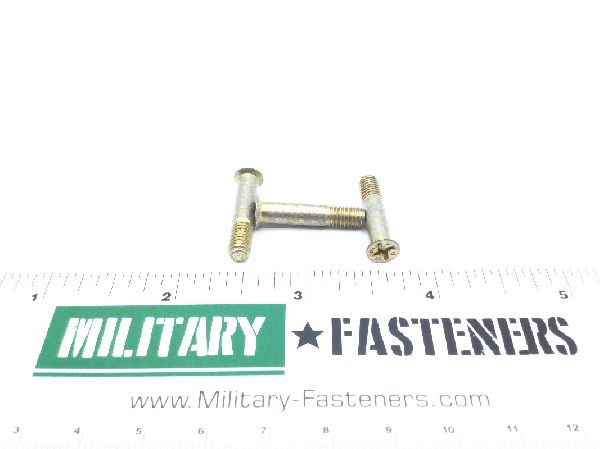

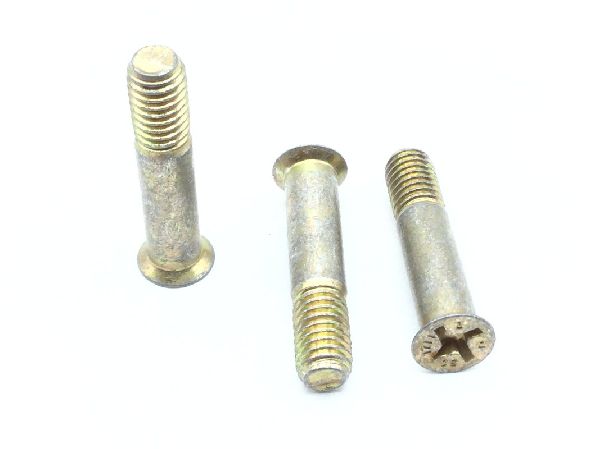

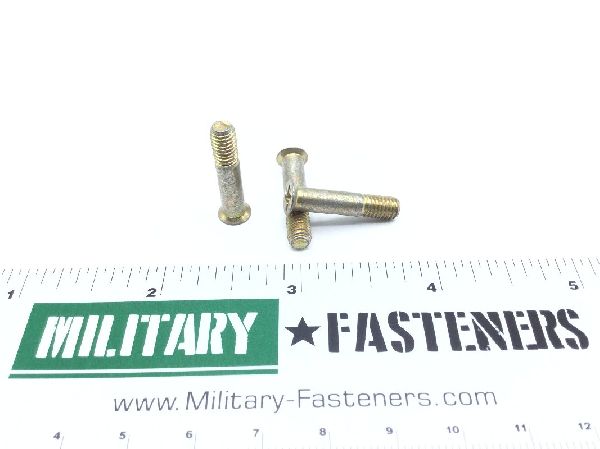

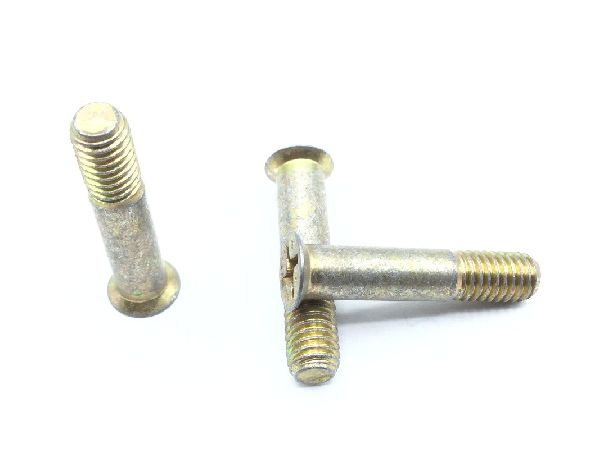

202-15523-3-9 Machine Bolt

ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $15.59

Units per Pack 5

Price per Pack $77.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $77.95

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.890 inches and 0.937 inches
Hardness Rating: Between 36.0 rockwell c and 40.0 rockwell c
Internal Drive Style: Torque set
Min. Tensile Strength (psi): 160000 pounds per square inch
Screw Material: Steel comp 4140 or steel comp e4340 or steel comp 6150 or steel comp 8735 or steel comp 8740
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification all treatment responses type 2 qq-b-416
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.317 inches and 0.384 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.270 inches and 0.302 inches
