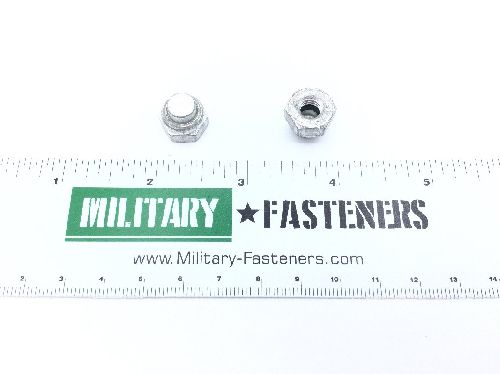

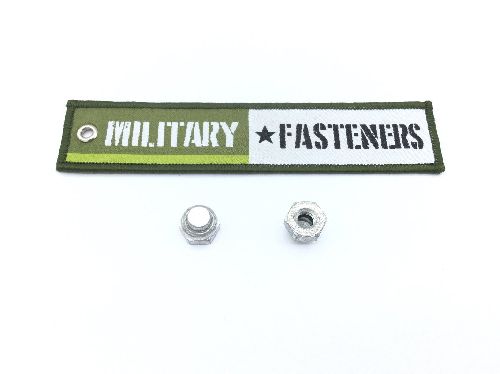

22K1-048 Self-Locking Cap Nut

ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel cap
Surface Treatment
Class 3 federal specification single treatment response nut type 1 qq-p-416
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.250 inches
Bearing Surface Type
Washer faced
Locking Feature
Prevailing torque with nonmetallic insert
Nut Height
Between 0.407 inches and 0.469 inches
Nut Style
Cap
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
28
Width Across Flats
Between 0.490 inches and 0.502 inches
