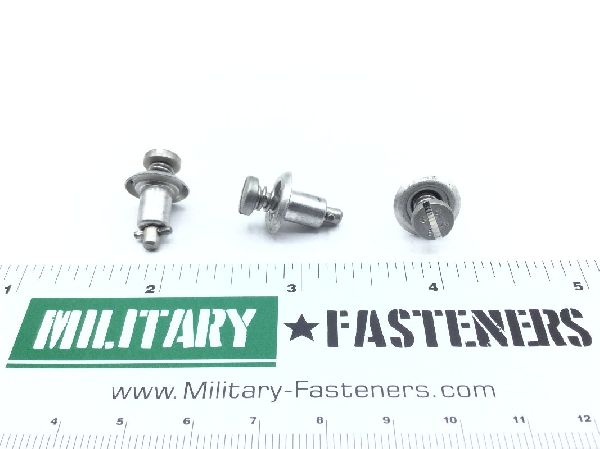

2600-2S Turnlock Fastener Stud Assembly

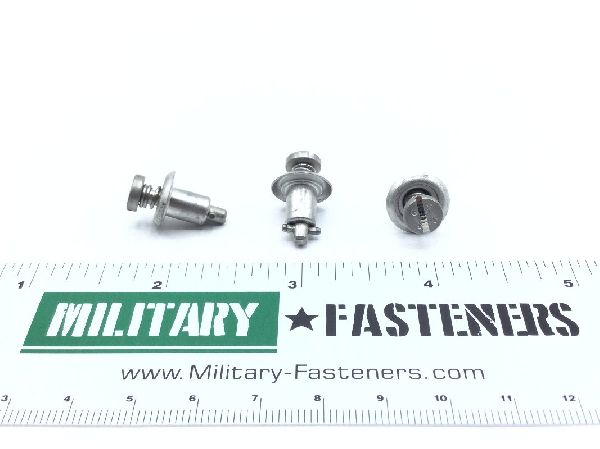

2600-2S Turnlock Fastener Stud Assembly (2)

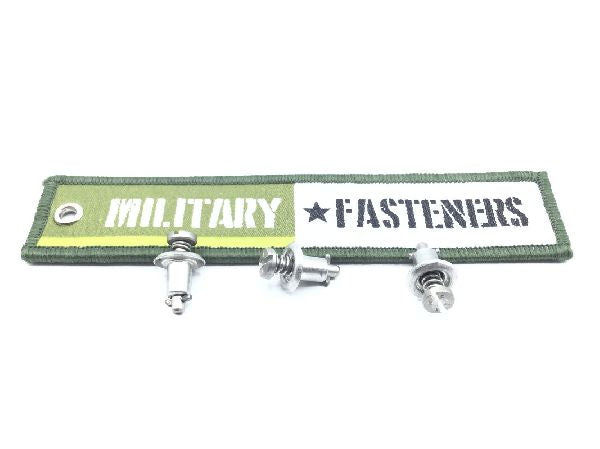

2600-2S Turnlock Fastener Stud Assembly (3)

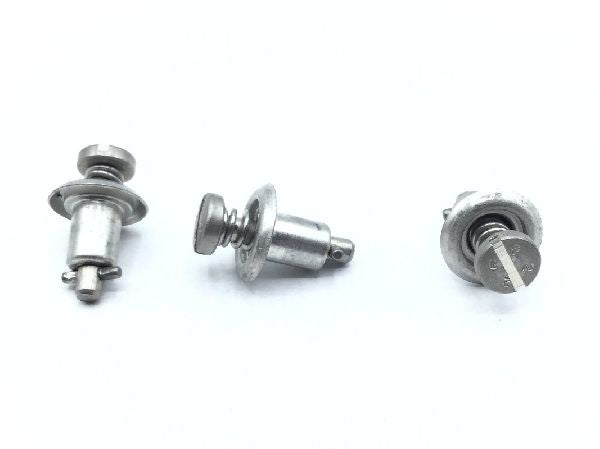

2600-2S Turnlock Fastener Stud Assembly (4)

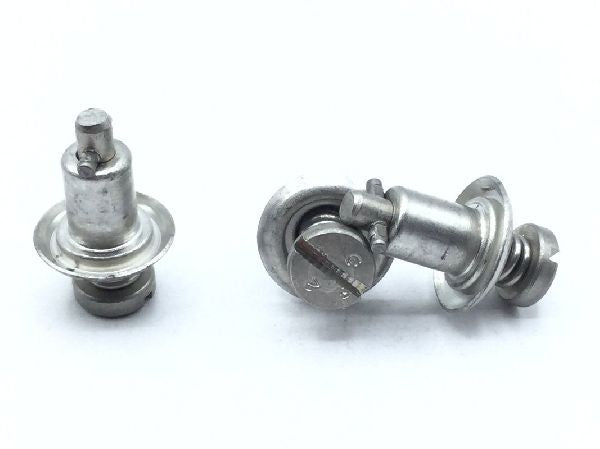

2600-2S Turnlock Fastener Stud Assembly (5)

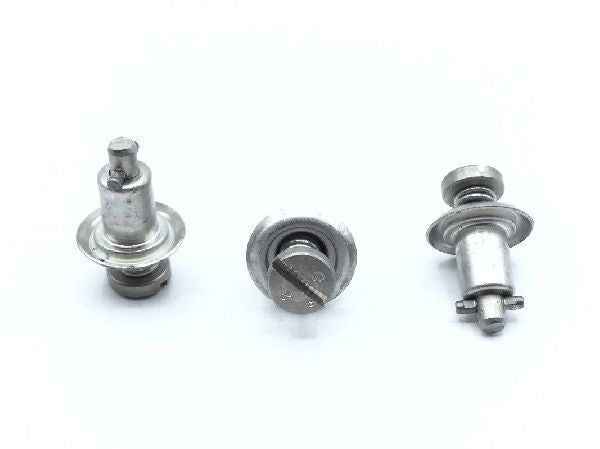

2600-2S Turnlock Fastener Stud Assembly (6)
2600-2S Turnlock Fastener Stud Assembly
2600-2S Turnlock Fastener Stud Assembly (2)
2600-2S Turnlock Fastener Stud Assembly (3)
2600-2S Turnlock Fastener Stud Assembly (4)
2600-2S Turnlock Fastener Stud Assembly (5)
2600-2S Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

2600-2S Turnlock Fastener Stud Assembly

ECCN
EAR99
Schedule
7318.15.5000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 302 ejector spring or stainless steel ejector spring
Surface Treatment
Qq-p-35 federal specification single treatment response
Distance From Engaging Member To Largest Bearing Surface Of Head
Between 0.572 inches and 0.588 inches
Drive Type
Slotted
Eyelet Length
0.322 inches
Eyelet Outside Diameter
Between 0.244 inches and 0.250 inches
Material Accommodated Thickness
Between 0.060 inches and 0.089 inches
Material Specification
Qq-s-766 federal specification single material response eyelet
Securing Device Type
Spring
Stud Assembly Style
Stud assembly
Stud Head Height
Between 0.088 inches and 0.098 inches
Turnlock Stud Head Style
Flat fillister
Diameter
Between 0.298 inches and 0.308 inches
