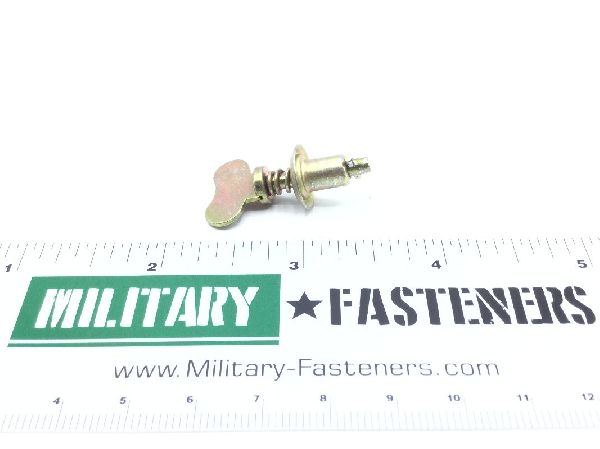

2600-5W Turnlock Fastener Stud Assembly

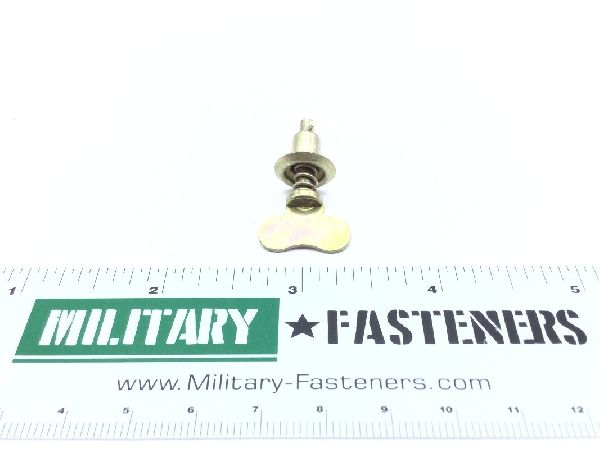

2600-5W Turnlock Fastener Stud Assembly (2)

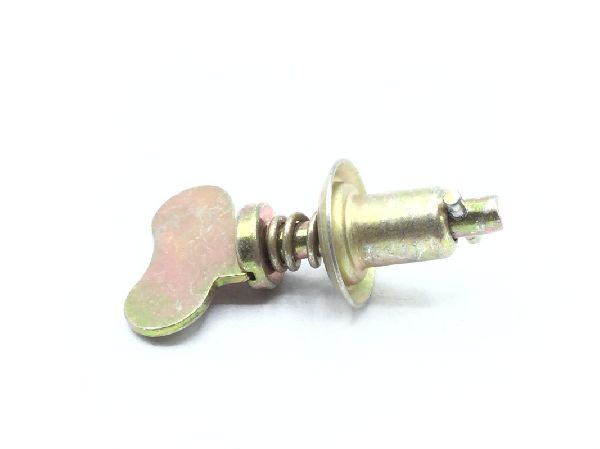

2600-5W Turnlock Fastener Stud Assembly (3)

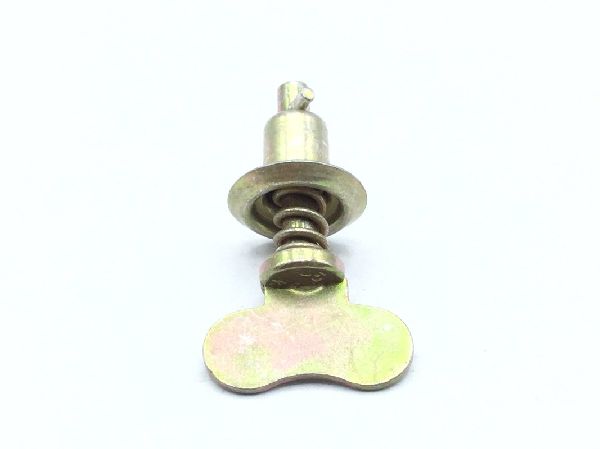

2600-5W Turnlock Fastener Stud Assembly (4)
2600-5W Turnlock Fastener Stud Assembly (5)
2600-5W Turnlock Fastener Stud Assembly
2600-5W Turnlock Fastener Stud Assembly (2)
2600-5W Turnlock Fastener Stud Assembly (3)
2600-5W Turnlock Fastener Stud Assembly (4)
2600-5W Turnlock Fastener Stud Assembly (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

2600-5W Turnlock Fastener Stud Assembly

NSN
5325-00-298-7007
ECCN
EAR99
Schedule
7318.15.5000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel pin
Surface Treatment
Cl2 federal specification single treatment response type 2 qq-p-416
Distance From Engaging Member To Largest Bearing Surface Of Head
Between 0.662 inches and 0.677 inches
Eyelet Length
0.322 inches
Eyelet Outside Diameter
Between 0.244 inches and 0.250 inches
Head Length
0.720 inches
Material Accommodated Thickness
Between 0.120 inches and 0.179 inches
Material Specification
Qq-s-698 federal specification single material response eyelet
Stud Assembly Style
Stud assembly
Stud Head Height
0.440 inches
Turnlock Stud Head Style
Flat fillister wing
