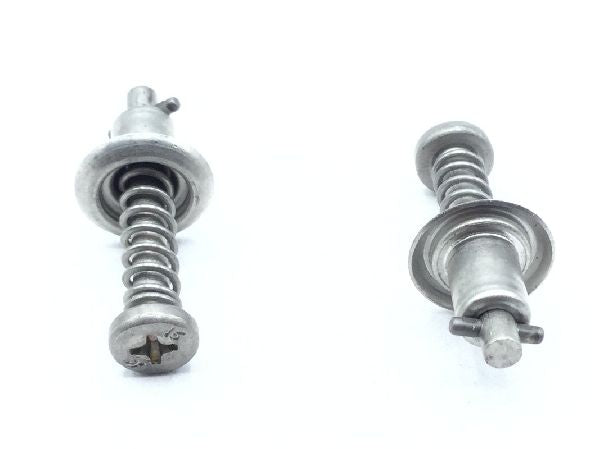

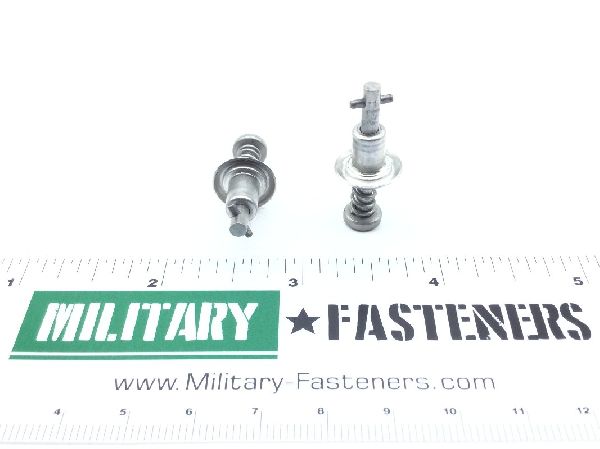

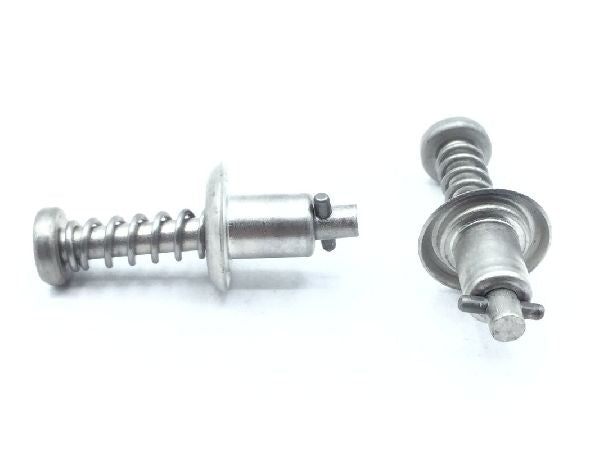

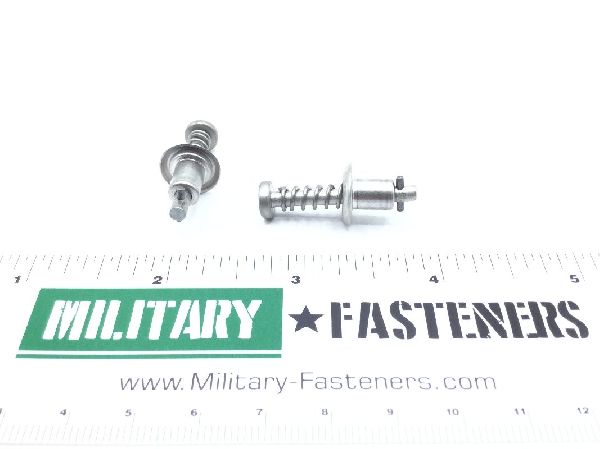

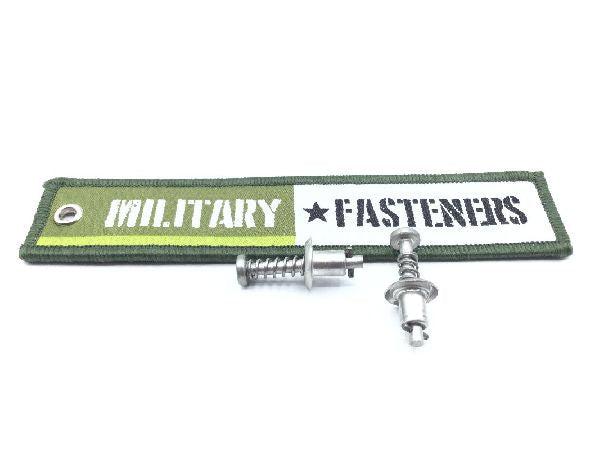

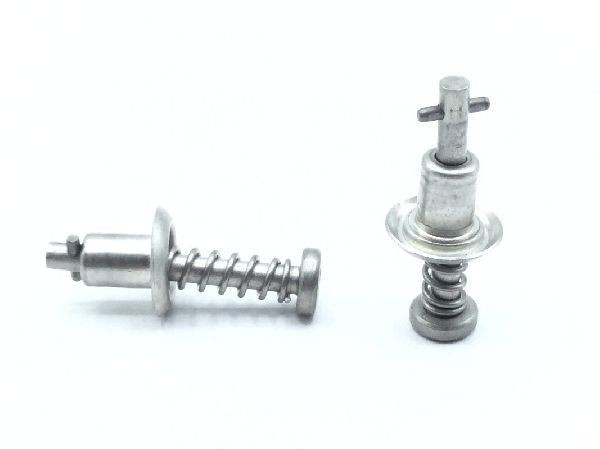

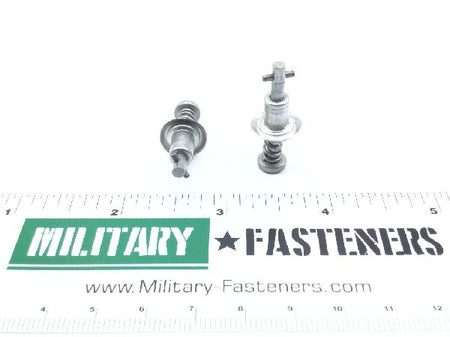

26S51-16 Turnlock Fastener Stud Assembly
26S51-16 Turnlock Fastener Stud Assembly (2)
26S51-16 Turnlock Fastener Stud Assembly (3)
26S51-16 Turnlock Fastener Stud Assembly (4)
26S51-16 Turnlock Fastener Stud Assembly (5)
26S51-16 Turnlock Fastener Stud Assembly (6)
26S51-16 Turnlock Fastener Stud Assembly
26S51-16 Turnlock Fastener Stud Assembly (2)
26S51-16 Turnlock Fastener Stud Assembly (3)
26S51-16 Turnlock Fastener Stud Assembly (4)
26S51-16 Turnlock Fastener Stud Assembly (5)
26S51-16 Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

26S51-16 Turnlock Fastener Stud Assembly

ECCN
EAR99
Schedule
7318.15.5000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 302 ejector spring
Surface Treatment
Qq-p-35 federal specification single treatment response
Distance From Engaging Member To Largest Bearing Surface Of Head
1.001 inches
Drive Type
Cross recess
Eyelet Length
0.332 inches
Eyelet Outside Diameter
Between 0.244 inches and 0.250 inches
Material Accommodated Thickness
Between 0.480 inches and 0.509 inches
Material Specification
Wqq-w-423 federal specification single material response ejector spring
Securing Device Type
Spring
Stud Assembly Style
Stud assembly
Turnlock Stud Head Style
Fillister
Diameter
Between 0.298 inches and 0.308 inches
