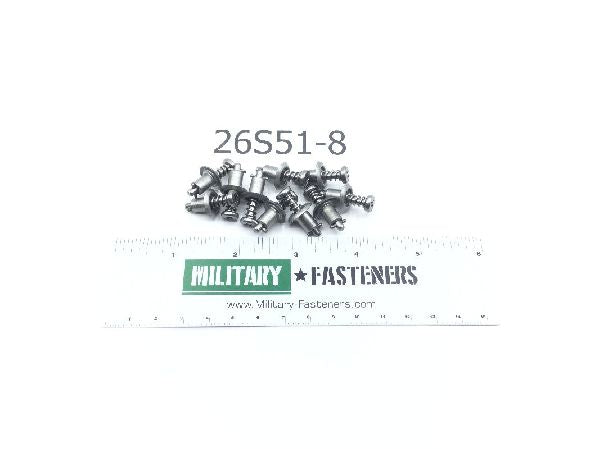

26S51-8 Turnlock Fastener Stud Assembly (3)

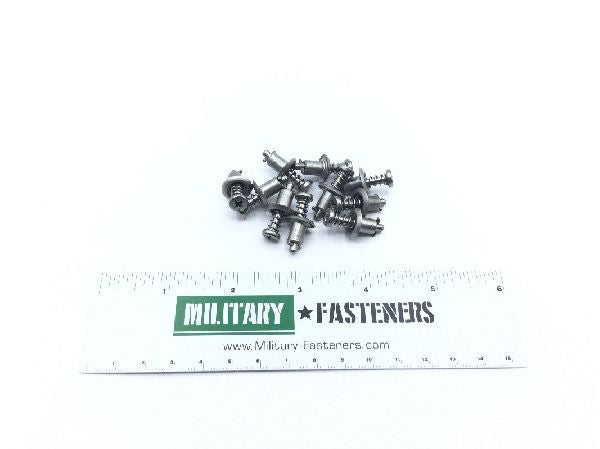

26S51-8 Turnlock Fastener Stud Assembly (4)

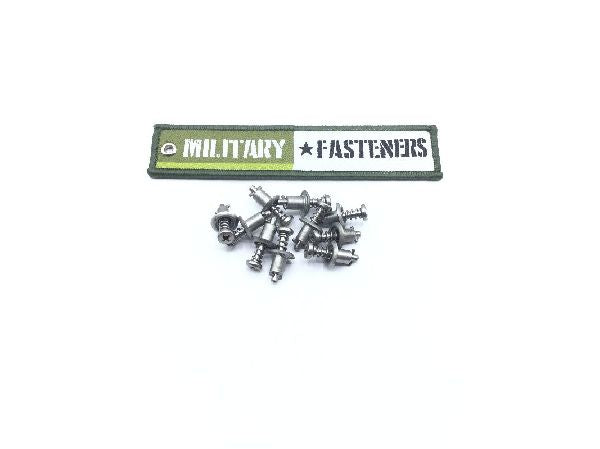

26S51-8 Turnlock Fastener Stud Assembly (5)

26S51-8 Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

26S51-8 Turnlock Fastener Stud Assembly

ECCN: EAR99
Schedule: 7318.15.5000

Price per Unit $9.01

Units per Pack 10

Price per Pack $90.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $90.10

Add item to quote

Material

Steel comp 302 pin

Surface Treatment

Qq-p-35 federal specification single treatment response

Distance From Engaging Member To Largest Bearing Surface Of Head: 0.761 inches
Drive Type: Cross recess
Eyelet Length: 0.332 inches
Eyelet Outside Diameter: Between 0.244 inches and 0.250 inches
Material Accommodated Thickness: Between 0.240 inches and 0.269 inches
Material Specification: Qq-s-766 federal specification single material response eyelet
Securing Device Type: Spring
Stud Assembly Style: Stud assembly
Turnlock Stud Head Style: Fillister
Diameter: Between 0.298 inches and 0.308 inches
