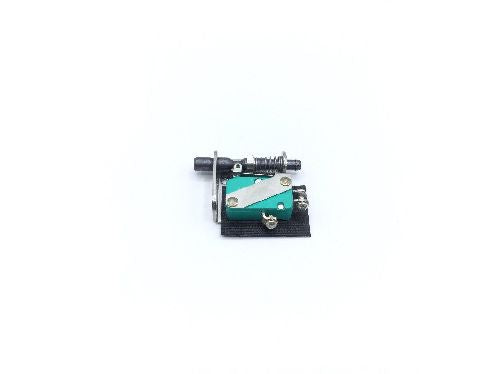

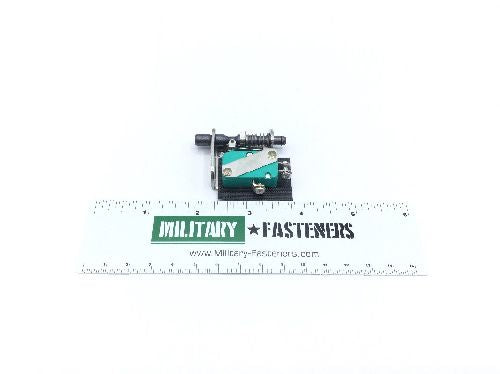

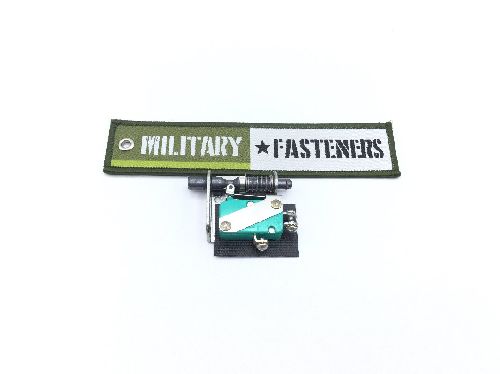

2AC59 Sensitive Switch

NSN: 5930-00-519-8144
ECCN: EAR99
Schedule: 8535.30.0080

Price per Unit $121.89

Units per Pack 1

Price per Pack $121.89

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $121.89

Add item to quote

Overall Length

2.035 inches

Thread Class

Thread Size

0.138 inches

Actuator Diameter: 0.250 inches
Actuator Free Position Height: 0.375 inches
Actuator Height: 0.375 inches
Actuator Movement: 0.172 pretravel inches
Actuator Style: Round
Body Height: 1.300 inches
Body Length: 1.660 inches
Body Style: Hole mounted
Body Width: 0.520 inches
Center To Center Distance Between Mounting Facilities Parallel T: 0.500 inches
Contact Load Current Rating At Maximum Rated Voltage: 500.000 milliamperes resistive dc and 100.000 milliamperes inductive dc and 10.000 amperes resistive ac and 10.000 amperes inductive ac
End Application: Missminuteman leg-30
Inclosure Type: Uninclosed
Maximum Voltage Rating In Volts: 115.0 ac and 125.0 dc
Mounting Method: Threaded hole
Nonpile-up Contact Arrangement: one position momentary single switch unit double throw 1 pole
Overall Height: 1.640 inches
Overall Width: 0.520 inches
Specification Data: 81349-mil-prf 8805/56 government specification
Switch Actuating Force: 144.0 ounc (coarse thread)es
Switch Release Force: 4.0 ounc (coarse thread)es
Terminal Type And Quantity: 3 tab w/screw
Test Data Document: Etc.).
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
