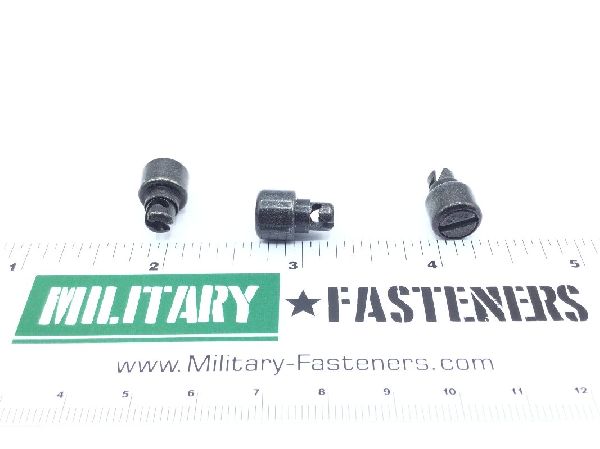

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly

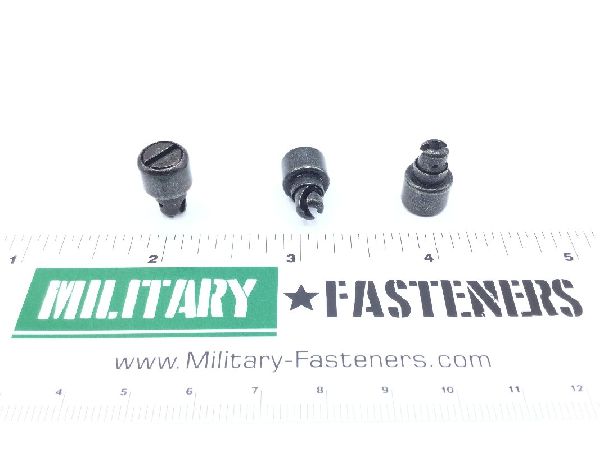

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly (2)

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly (3)

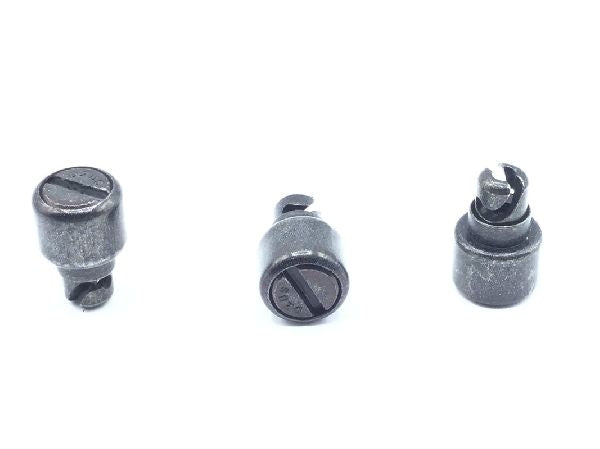

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly (4)

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly (5)

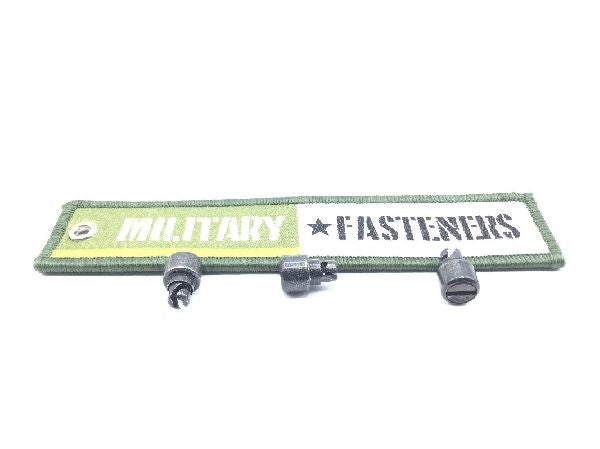

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

3506-SC41A-Z3BT Turnlock Fastener Stud Assembly

ECCN: EAR99
Schedule: 7318.15.5000

Price per Unit $9.01

Units per Pack 10

Price per Pack $90.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $90.10

Add item to quote

Material

Steel

Surface Treatment

Astm-b-633 type 2 assn standard single treatment response

Distance From Engaging Member To Largest Bearing Surface Of Head: 0.410 inches
Drive Type: Slotted
Eyelet Length: Between 0.100 inches and 0.120 inches
Eyelet Outside Diameter: Between 0.373 inches and 0.377 inches
Material Accommodated Thickness: 0.094 inches
Stud Assembly Style: Stud assembly
Stud Diameter: Between 0.212 inches and 0.215 inches
Stud Head Height: 0.285 inches
Turnlock Stud Head Style: Flat fillister
Diameter: Between 0.373 inches and 0.377 inches
