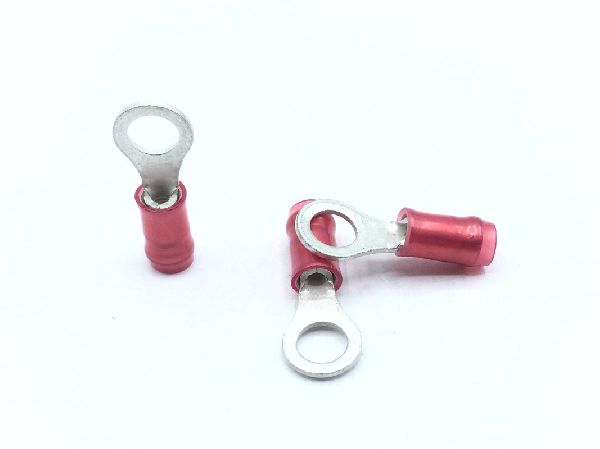

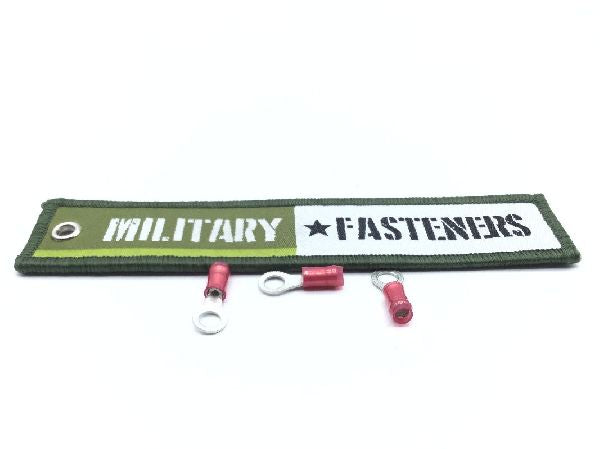

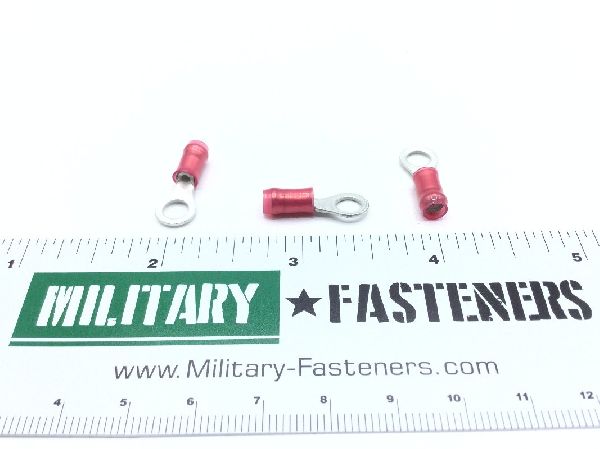

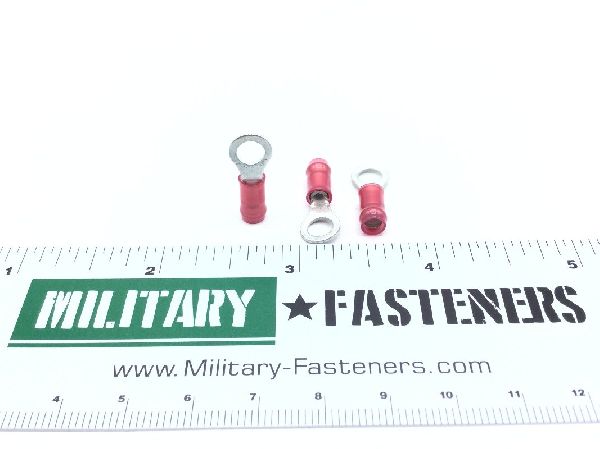

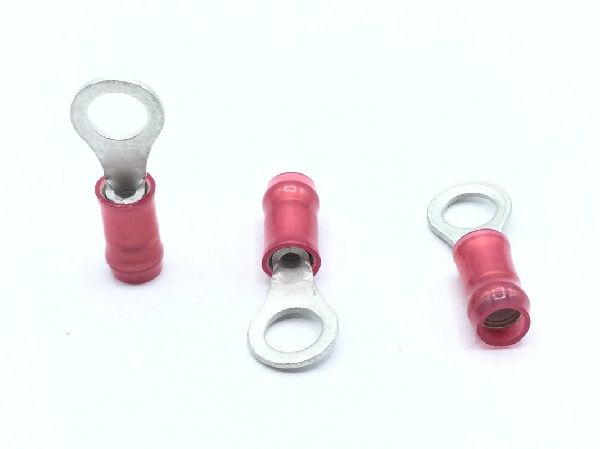

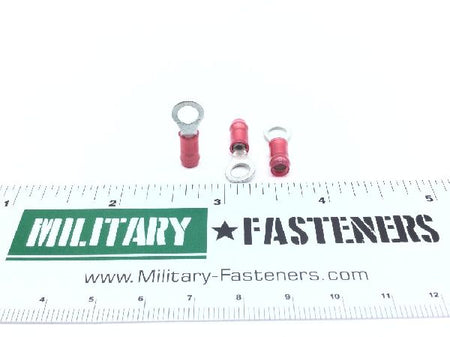

36154 Terminal Lug

NSN: 5940-00-144-1530
ECCN: EAR99
Schedule: 8536.90.4000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Copper alloy except insulation

Overall Length

0.844 inches

Surface Treatment

Type i military specification single treatment response except insulation single layer mil-t-10727

Basic Shape Style: Crimp
Conductor Accommodation Type: Straight barrel single end
Electrical Insulation Feature: Insulating sleeve
Identification Code Color: 11136 federal standard 595 red
Material Specification: Type i military specification single material response insulation comp a mil-m-20693
Material Thickness: 0.033 inches
Maximum Conductor Size Accommodated: 16 awg
Mounting Facility Thickness: 0.033 inches
Mounting Hole Diameter: 0.201 inches
Mounting Method Style: Ring
Mounting Tongue Width: 0.312 inches
Overall Width: 0.312 inches
