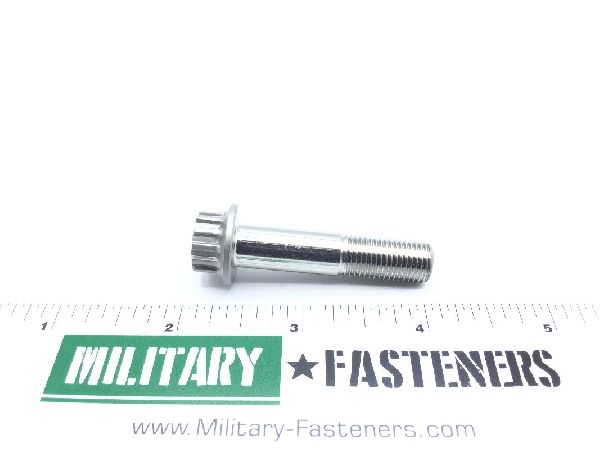

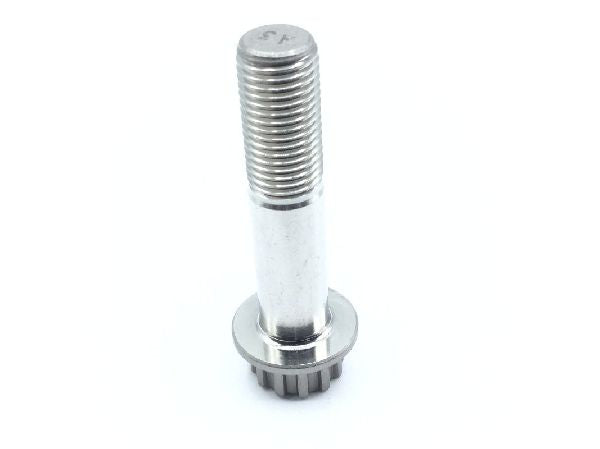

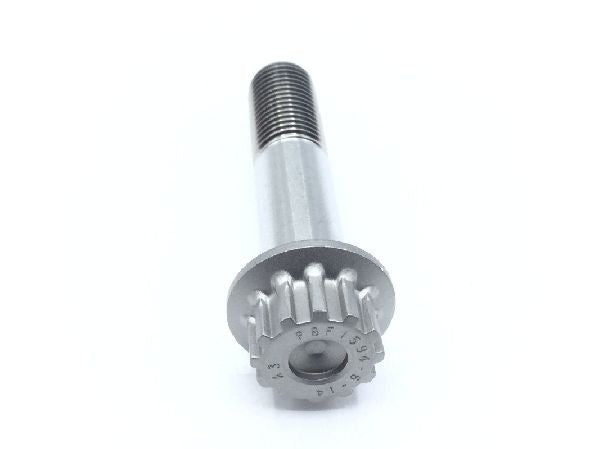

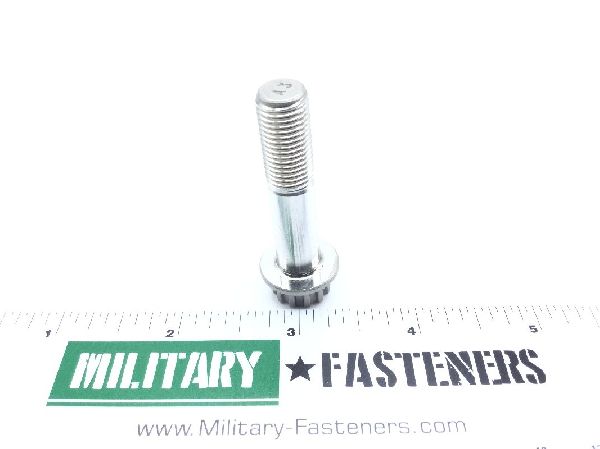

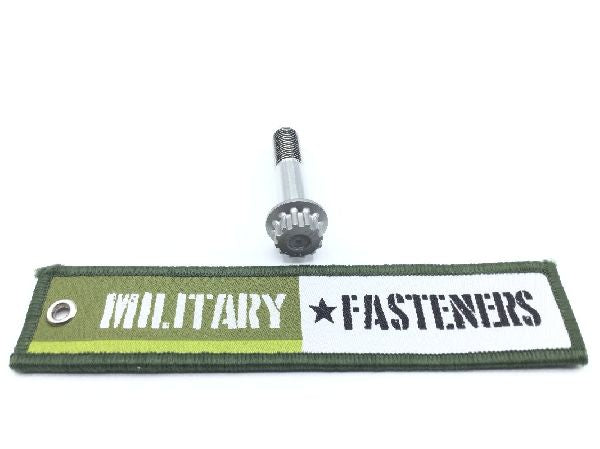

3D0073-6-14 Machine Bolt

ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $77.54

Units per Pack 1

Price per Pack $77.54

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $77.54

Add item to quote

Head Style

Spline extended washer

Material

Nickel alloy 718

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Extended Washer Diameter: Between 0.691 inches and 0.701 inches
Extended Washer Thickness: 0.054 inches
Fastener Length: Between 1.546 inches and 1.676 inches
Grip Diameter: Between 0.3735 inches and 0.3745 inches
Grip Length: 0.875 inches
Head Height: 0.337 inches
Head Minor Diameter: Between 0.438 inches and 0.453 inches
Material Specification: Ams 5662 assn standard single material response
Min. Tensile Strength (psi): 220000 pounds per square inch
Minimum Yield Strength: 125000 pounds per square inch
Surface Finish: 32.0 microinches grip
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.786 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
