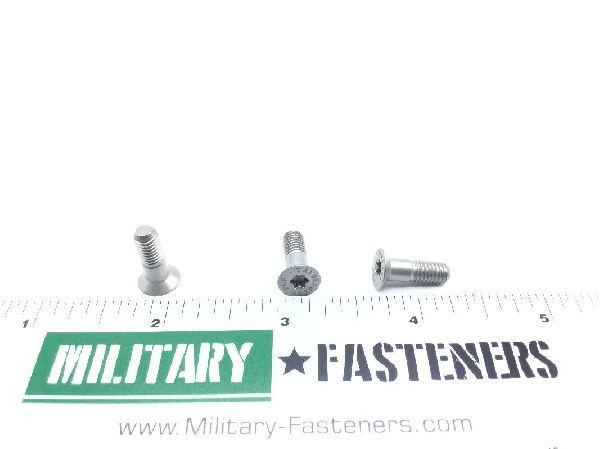

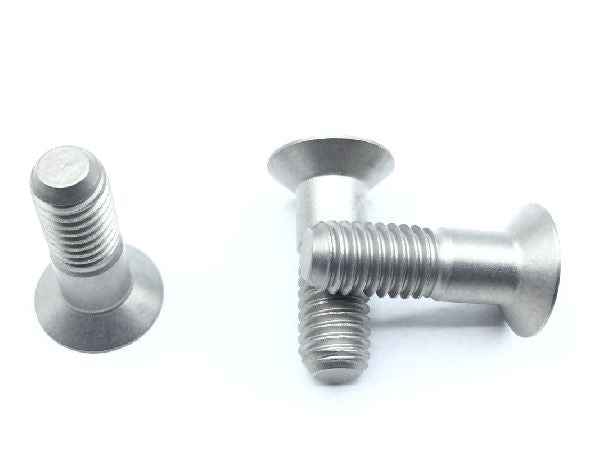

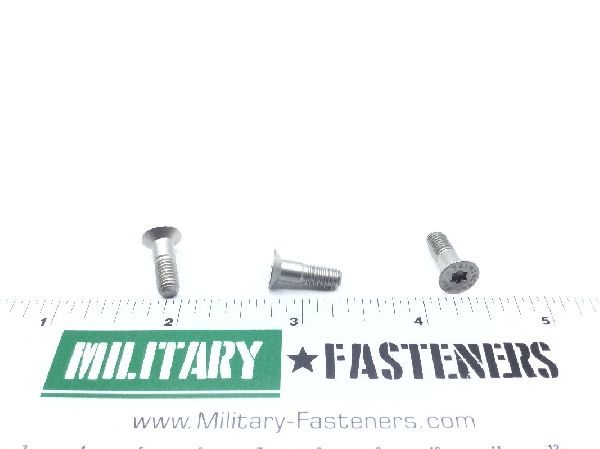

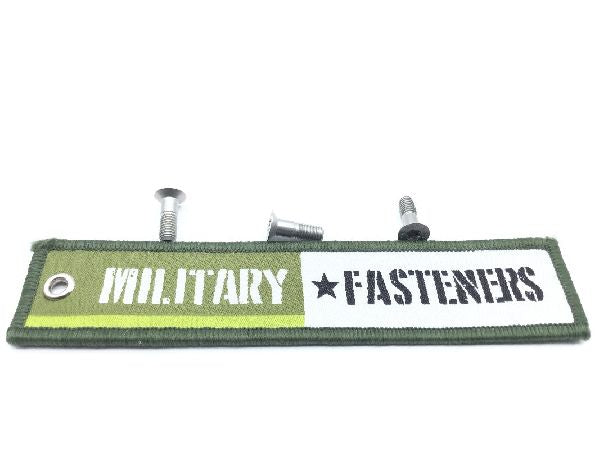

3M1169C3-4A Close Tolerance Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $20.10

Units per Pack 5

Price per Pack $100.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $100.50

Add item to quote

Head Style

Flat countersunk

Material

Nickel alloy 718

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: F18 e/f
Fastener Length: Between 0.580 inches and 0.610 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.240 inches and 0.260 inches
Internal Drive Style: Torx
Material Specification: Aams 5662 assn standard single material response
Part Name Assigned By Controlling Agency: gear drive recess 100 degree tension head bolt
Point Style: Flat
Special Features: 125 ksi shear strength
Spline Major Diameter: Between 0.1540 inches and 0.1560 inches
Spline Minor Diameter: Between 0.1105 inches and 0.1125 inches
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.3729 inches and 0.3813 inches
