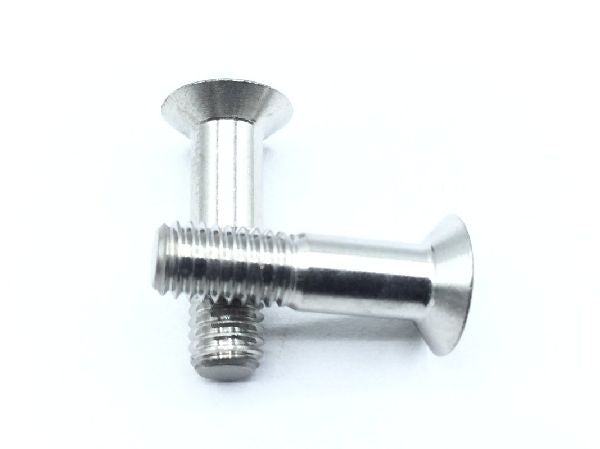

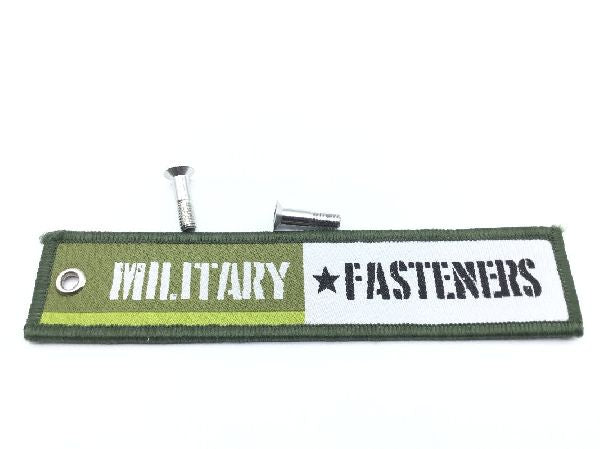

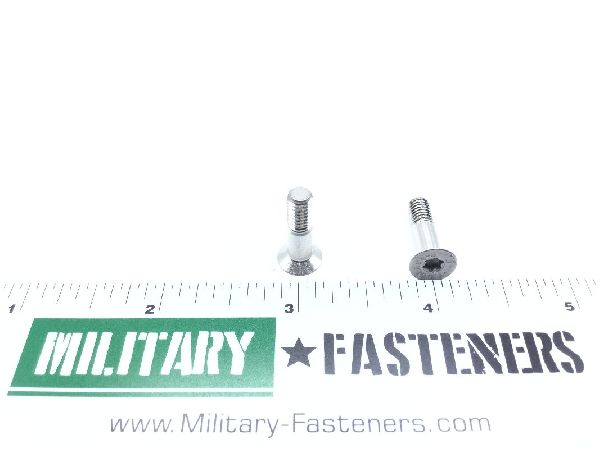

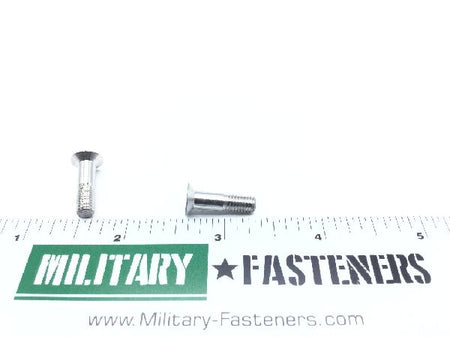

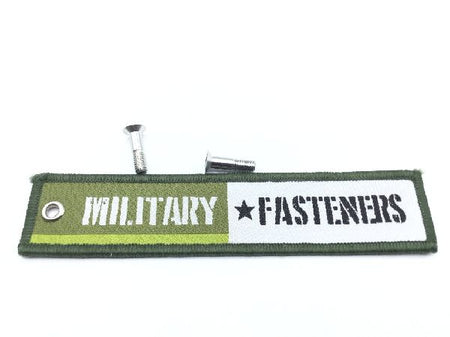

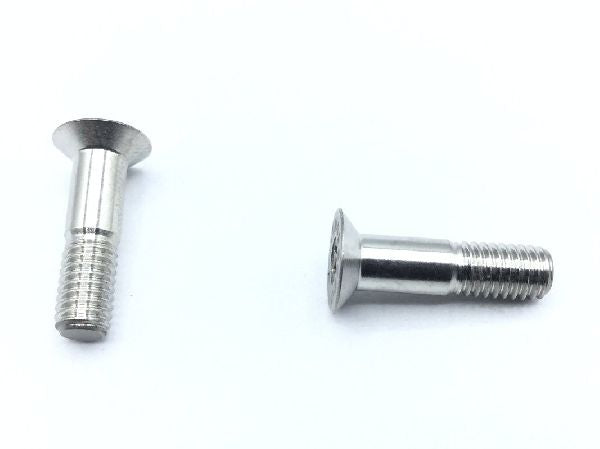

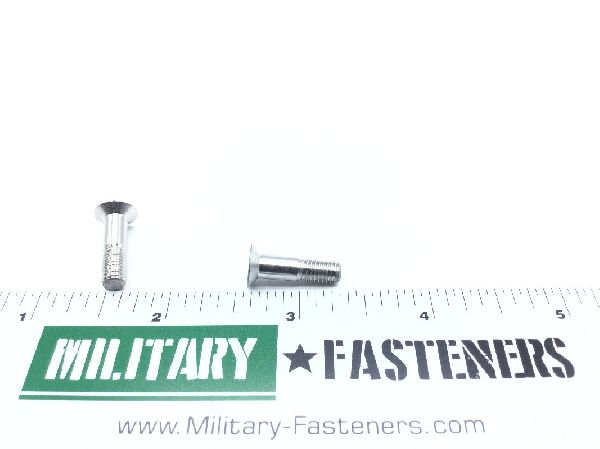

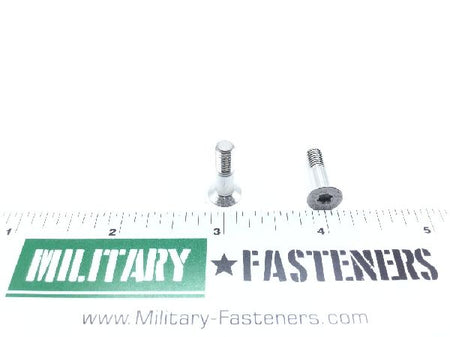

3M1169C3-6A Machine Screw

ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $22.05

Units per Pack 2

Price per Pack $44.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $44.10

Add item to quote

Head Style

Flat countersunk

Material

Stainless Steel

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Criticality Code Justification: Agav
End Application: F18 e/f
Fastener Length: 0.720 inches
Grip Diameter: Between 0.188 inches and 0.189 inches
Grip Length: 0.375 inches
Internal Drive Style: Torx
Material Specification: Per 23-118 mfr ref 1st material response inconel 718
Part Name Assigned By Controlling Agency: 6al-4v titanium (95 ksi shear) inconel 718 (125 ksi shear) gear drive recess-ph13-8mo (125 ksi shear) 100 degree tension head bolt
Point Style: Flat
Special Features: 125 ksi ulimate shear strength
Spline Major Diameter: Between 0.1540 inches and 0.1560 inches
Spline Minor Diameter: Between 0.1105 inches and 0.1125 inches
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.372 inches and 0.381 inches
