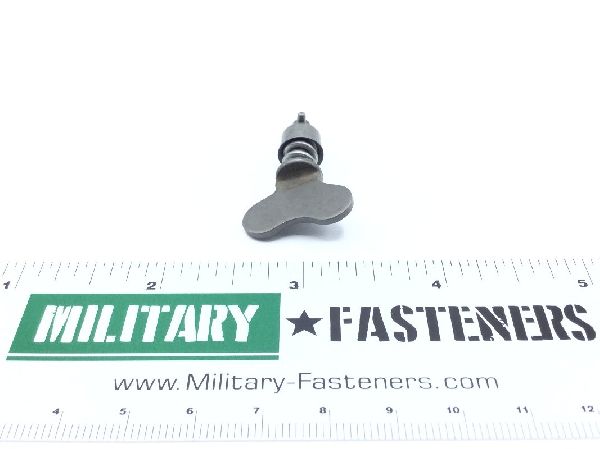

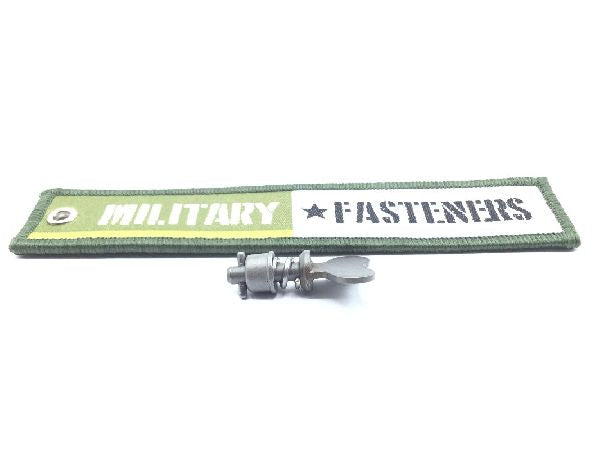

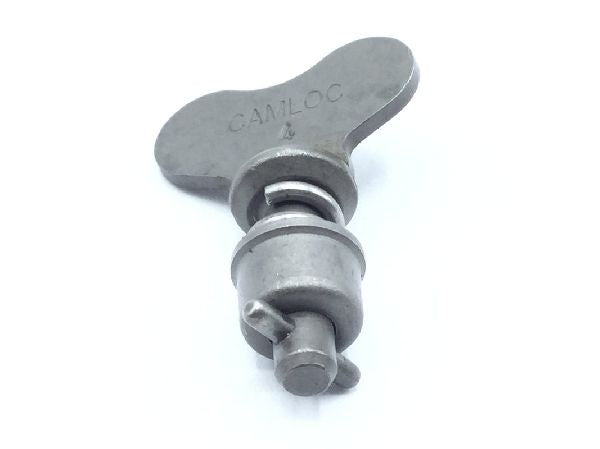

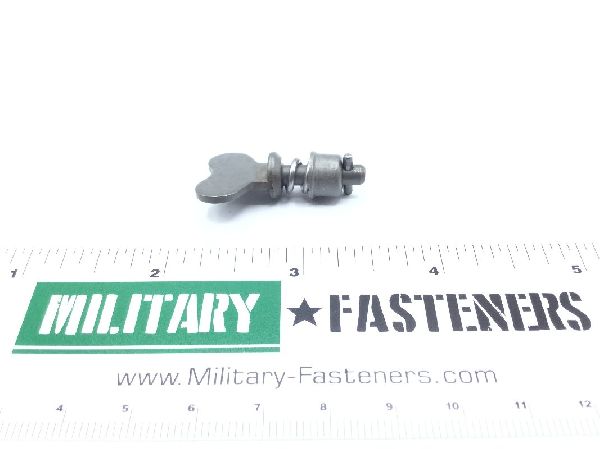

4002-4SW Turnlock Fastener Stud Assembly
4002-4SW Turnlock Fastener Stud Assembly (2)
4002-4SW Turnlock Fastener Stud Assembly (3)
4002-4SW Turnlock Fastener Stud Assembly (4)
4002-4SW Turnlock Fastener Stud Assembly (5)
4002-4SW Turnlock Fastener Stud Assembly (6)
4002-4SW Turnlock Fastener Stud Assembly
4002-4SW Turnlock Fastener Stud Assembly (2)
4002-4SW Turnlock Fastener Stud Assembly (3)
4002-4SW Turnlock Fastener Stud Assembly (4)
4002-4SW Turnlock Fastener Stud Assembly (5)
4002-4SW Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

4002-4SW Turnlock Fastener Stud Assembly

ECCN
EAR99
Schedule
7318.15.5000
Price per Unit $55.73
Units per Pack 1
Price per Pack $55.73
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:
Total Packs 1
Total Price $55.73
Add item to quote
Material
Steel comp 302 stud or stainless steel stud
Surface Treatment
Qq-p-35 federal specification single treatment response
Distance From Engaging Member To Largest Bearing Surface Of Head
Between 0.730 inches and 0.770 inches
Eyelet Length
0.257 inches
Eyelet Outside Diameter
Between 0.341 inches and 0.348 inches
Head Length
Between 0.880 inches and 0.890 inches
Material Accommodated Thickness
Between 0.141 inches and 0.170 inches
Material Specification
Cagec 71321 mfr ref single material response stud qq-w-423 federal specification single material response stud or type 384
Stud Assembly Style
Stud assembly
Turnlock Stud Head Style
Flat countersunk wing
