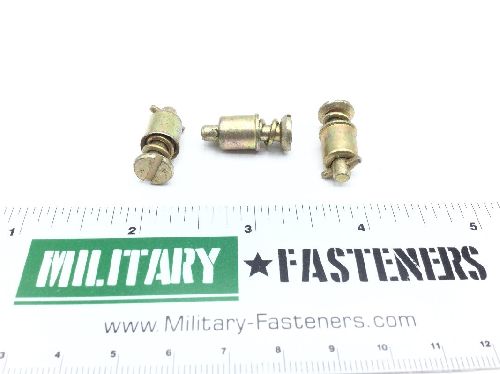

4002-9 Turnlock Fastener Stud Assembly

4002-9 Turnlock Fastener Stud Assembly (2)

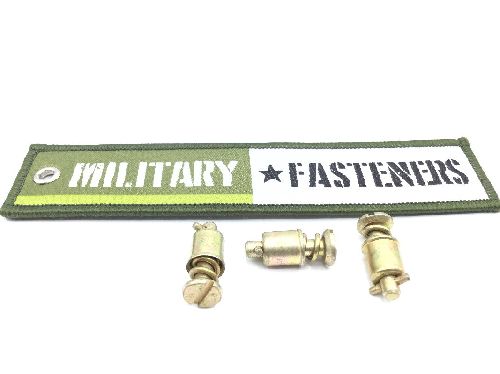

4002-9 Turnlock Fastener Stud Assembly (3)

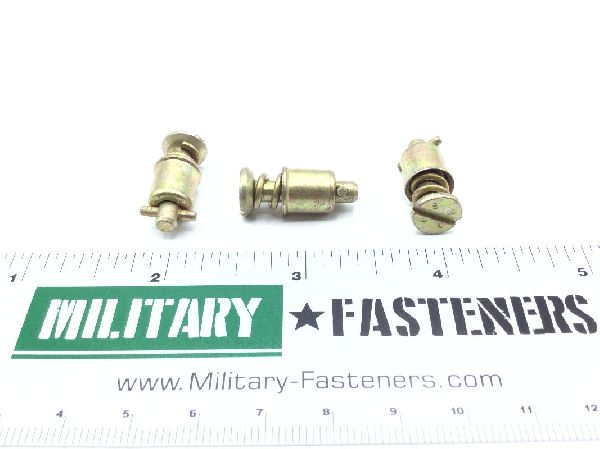

4002-9 Turnlock Fastener Stud Assembly (4)

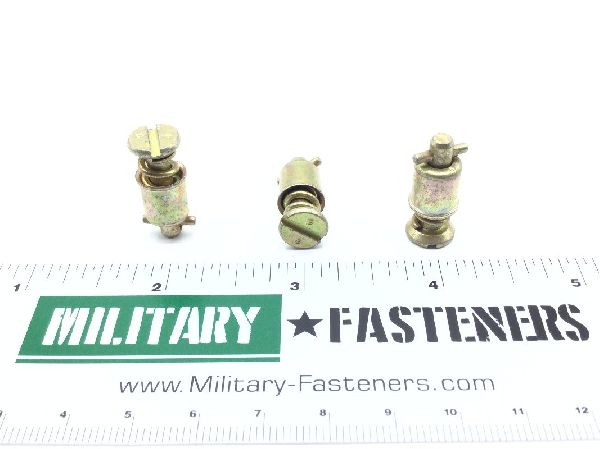

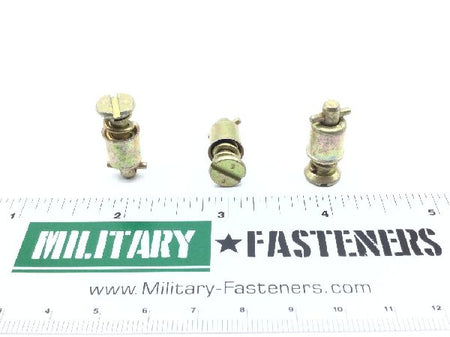

4002-9 Turnlock Fastener Stud Assembly (5)

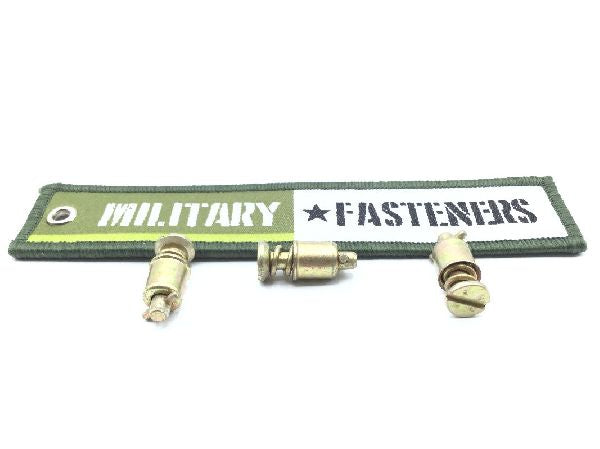

4002-9 Turnlock Fastener Stud Assembly (6)

4002-9 Turnlock Fastener Stud Assembly (7)

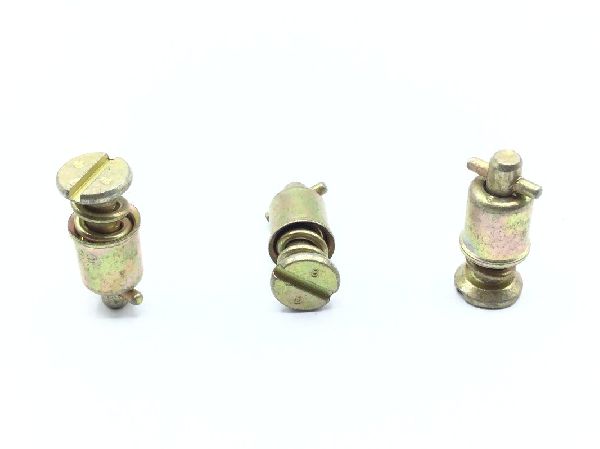

4002-9 Turnlock Fastener Stud Assembly (8)

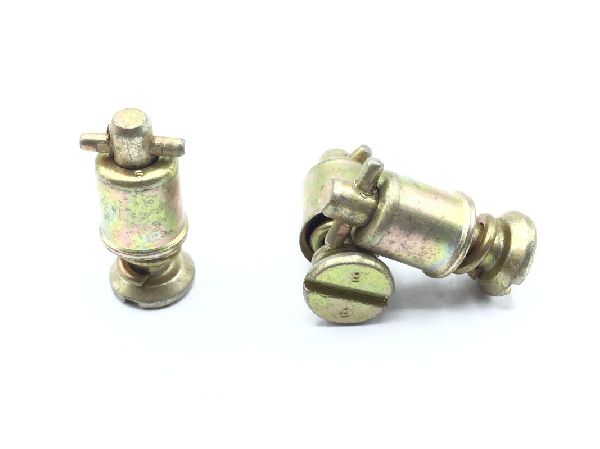

4002-9 Turnlock Fastener Stud Assembly (9)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

4002-9 Turnlock Fastener Stud Assembly

ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $10.05

Units per Pack 10

Price per Pack $100.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $100.50

Add item to quote

Material

Steel pin

Surface Treatment

type 2 cl 2 federal specification all treatment responses qq-p-41

Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.663 inches and 0.673 inches
Drive Type: Slotted
Eyelet Length: 0.412 inches
Eyelet Outside Diameter: Between 0.341 inches and 0.348 inches
Material Accommodated Thickness: Between 0.291 inches and 0.320 inches
Material Specification: Qq-w-470 federal specification single material response pin
Securing Device Type: Spring
Stud Assembly Style: Stud assembly
Turnlock Stud Head Style: Flat countersunk
Diameter: Between 0.377 inches and 0.384 inches
