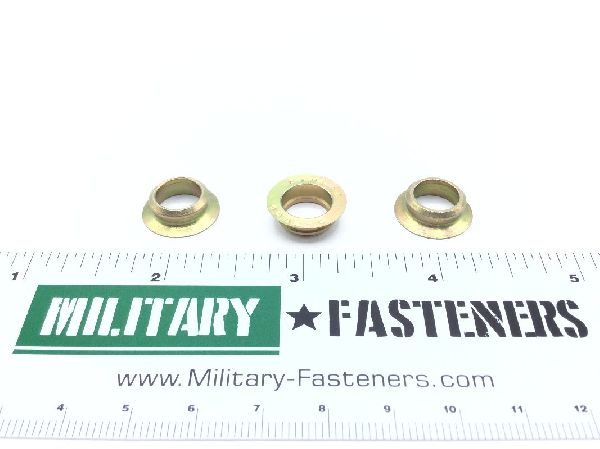

4002-G Turnlock Fastener Eyelet

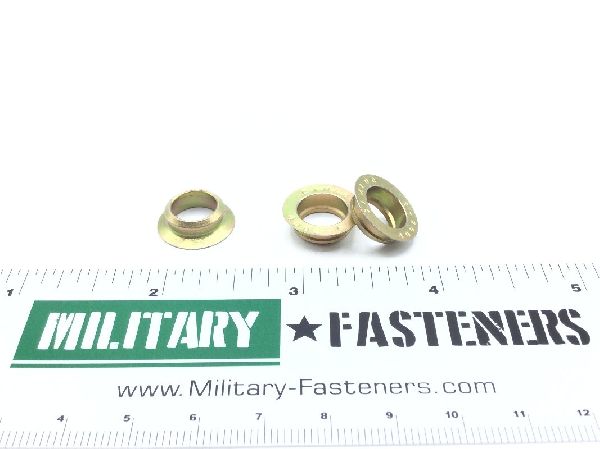

4002-G Turnlock Fastener Eyelet (2)

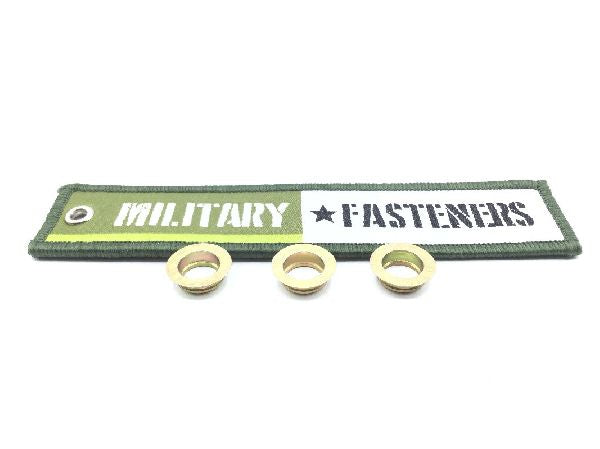

4002-G Turnlock Fastener Eyelet (3)

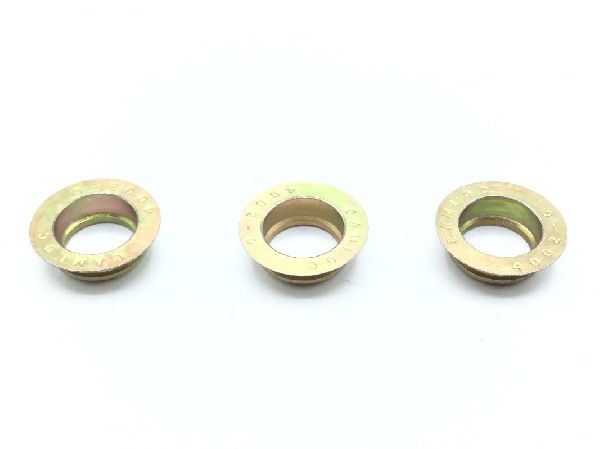

4002-G Turnlock Fastener Eyelet (4)

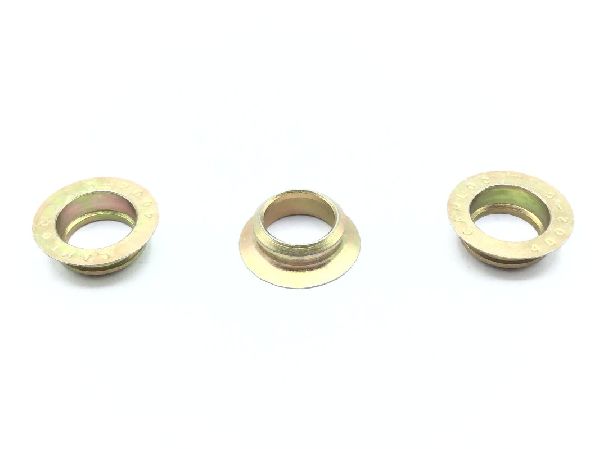

4002-G Turnlock Fastener Eyelet (5)

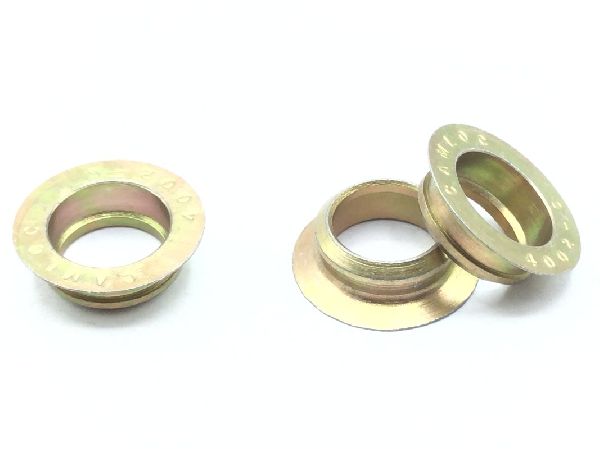

4002-G Turnlock Fastener Eyelet (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

4002-G Turnlock Fastener Eyelet

ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Surface Treatment

Type 3 assn standard single treatment response astm b633

Distance Between Flanges: Between 0.124 inches and 0.132 inches
Eyelet Height: Between 0.183 inches and 0.191 inches
Eyelet Inside Diameter: 0.344 inches
Iii Material: Steel
Largest Outside Diameter: Between 0.617 inches and 0.625 inches
Material Specification: Astm a547 assn standard single material response
Smallest Outside Diameter: Between 0.467 inches and 0.473 inches
Turnlock Eyelet Style: Eyelet
