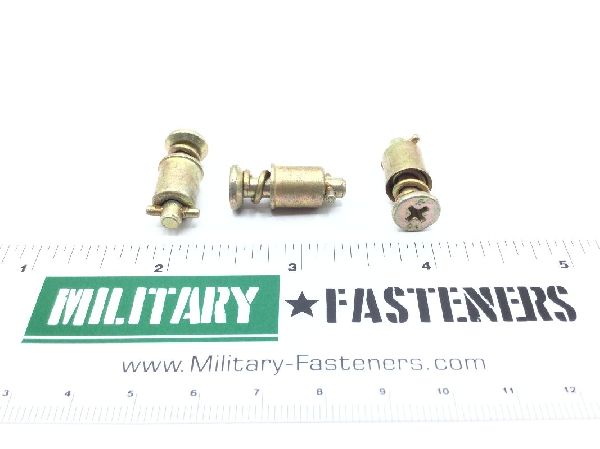

40S5-10 Turnlock Fastener Stud Assembly

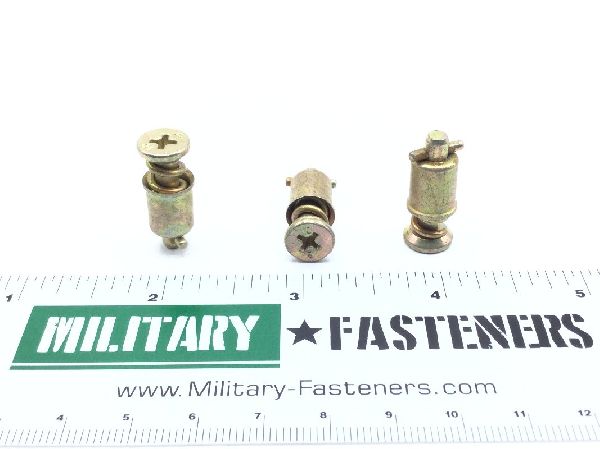

40S5-10 Turnlock Fastener Stud Assembly (2)

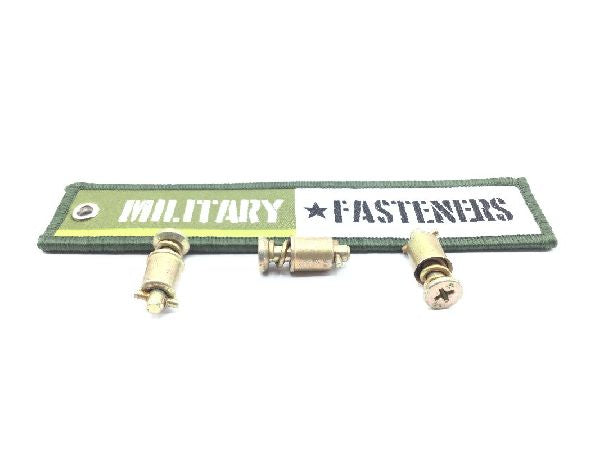

40S5-10 Turnlock Fastener Stud Assembly (3)

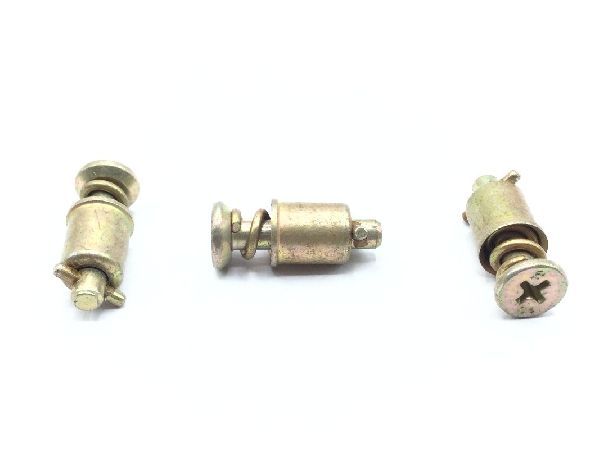

40S5-10 Turnlock Fastener Stud Assembly (4)

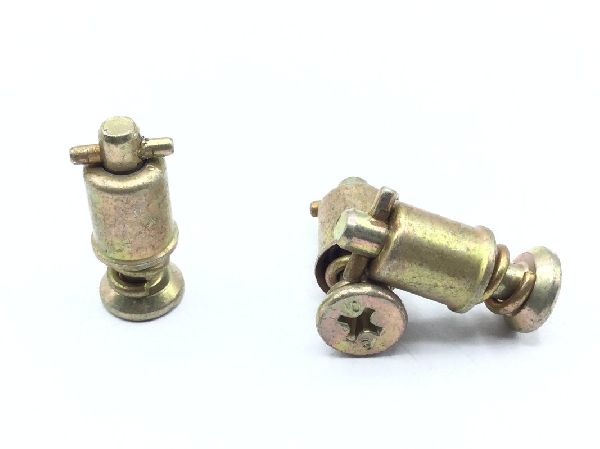

40S5-10 Turnlock Fastener Stud Assembly (5)

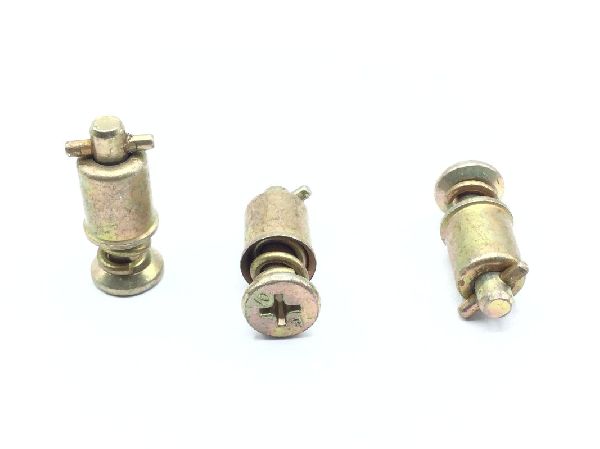

40S5-10 Turnlock Fastener Stud Assembly (6)
40S5-10 Turnlock Fastener Stud Assembly
40S5-10 Turnlock Fastener Stud Assembly (2)
40S5-10 Turnlock Fastener Stud Assembly (3)
40S5-10 Turnlock Fastener Stud Assembly (4)
40S5-10 Turnlock Fastener Stud Assembly (5)
40S5-10 Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

40S5-10 Turnlock Fastener Stud Assembly

NSN
5325-01-124-1299
ECCN
EAR99
Schedule
7318.15.5000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 4037 stud
Surface Treatment
Class 2 federal specification single treatment response type 2 qq-p-416
Distance From Engaging Member To Largest Bearing Surface Of Head
Between 0.693 inches and 0.703 inches
Drive Type
Cross recess
Eyelet Length
Between 0.432 inches and 0.452 inches
Eyelet Outside Diameter
Between 0.341 inches and 0.348 inches
Material Accommodated Thickness
Between 0.321 inches and 0.350 inches
Material Specification
Qq-w-470 federal specification single material response ejector spring
Securing Device Type
Spring
Stud Assembly Style
Stud assembly
Turnlock Stud Head Style
Flat countersunk
Diameter
Between 0.377 inches and 0.384 inches
