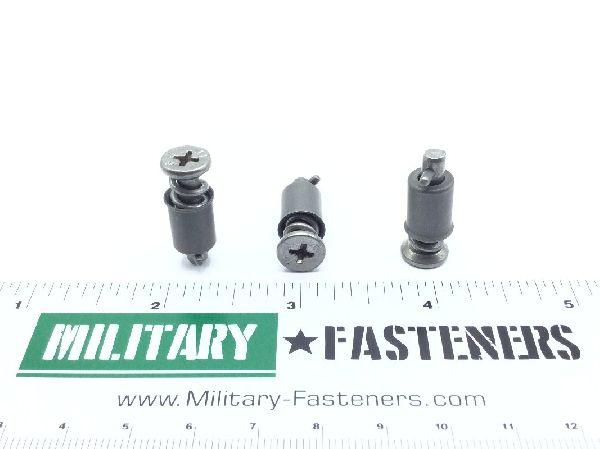

40S5-11S Turnlock Fastener Stud Assembly

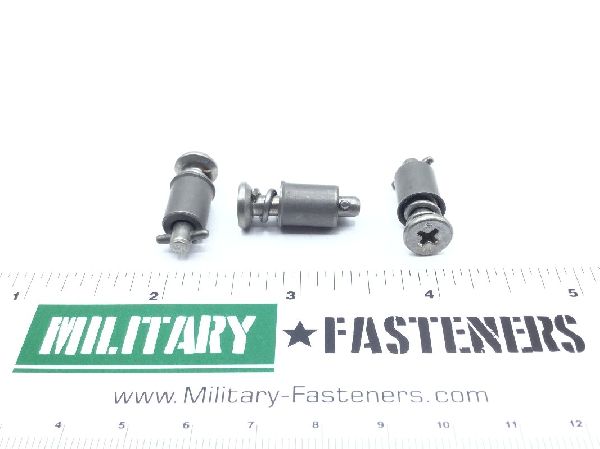

40S5-11S Turnlock Fastener Stud Assembly (2)

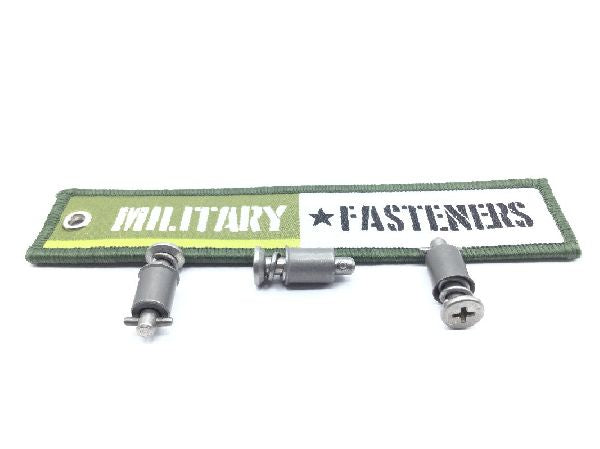

40S5-11S Turnlock Fastener Stud Assembly (3)

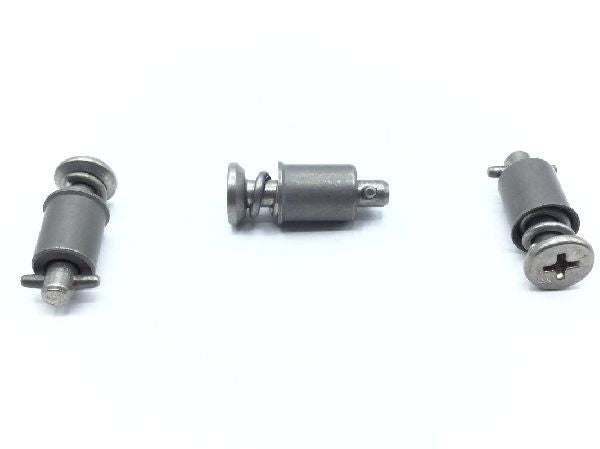

40S5-11S Turnlock Fastener Stud Assembly (4)

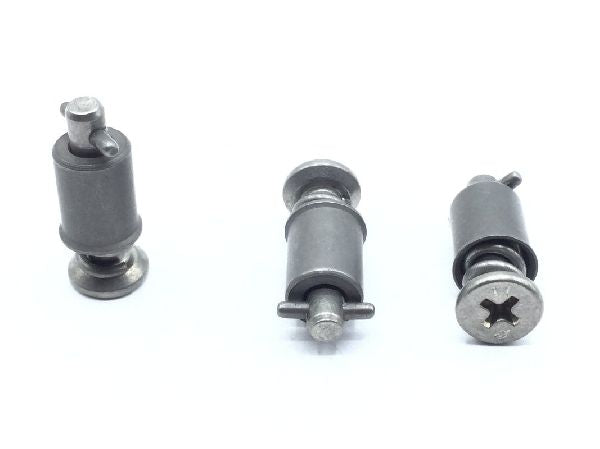

40S5-11S Turnlock Fastener Stud Assembly (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

40S5-11S Turnlock Fastener Stud Assembly

ECCN: EAR99
Schedule: 7318.15.5000

Price per Unit $20.44

Units per Pack 5

Price per Pack $102.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $102.20

Add item to quote

Material

Stainless steel stud

Surface Treatment

Astm a967 assn standard single treatment response or ams2700 national std/spec single treatment response

Distance From Engaging Member To Largest Bearing Surface Of Head: Between 0.683 inches and 0.693 inches
Drive Type: Cross recess
End Application: Ch-53a/d/e
Eyelet Length: 0.472 inches
Eyelet Outside Diameter: Between 0.341 inches and 0.348 inches
Material Accommodated Thickness: Between 0.231 inches and 0.380 inches
Material Specification: 300 series iaw astm a276 or astm a580 assn standard single material response or ams-qq-s-763 federal specification single material response stud
Part Name Assigned By Controlling Agency: Stud assembly flat head cross recess
Special Features: Astm a582 or astm a666 astm a240 spacer material is 300 series cres per astm a666 or astm a240;spring material is 302 cres per astm a313 or ams-qq-s-763;cup material is 300 series cres per astm a167
Stud Assembly Style: Stud assembly
Stud Head Height: 0.102 inches
Turnlock Stud Head Style: Stud head
Diameter: Between 0.377 inches and 0.384 inches
