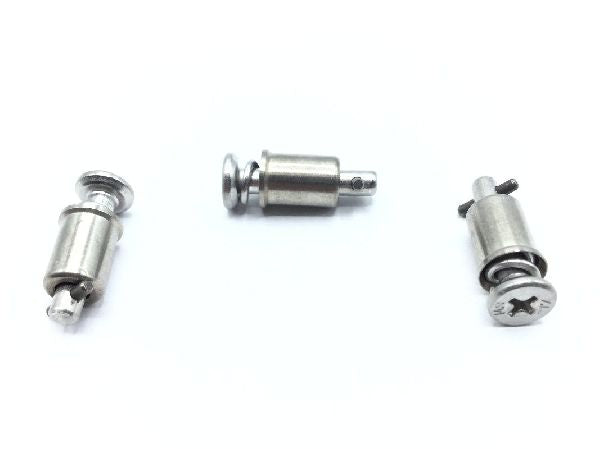

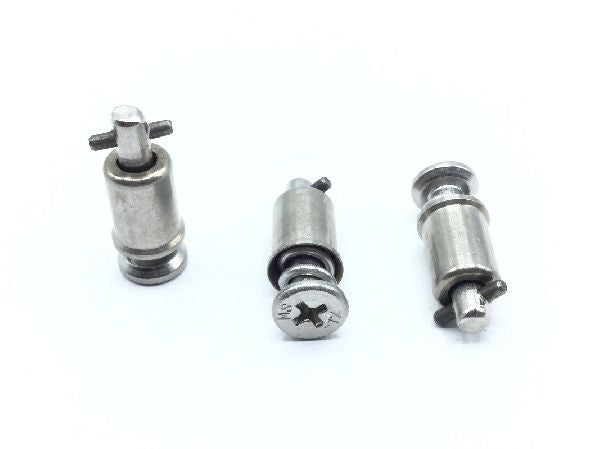

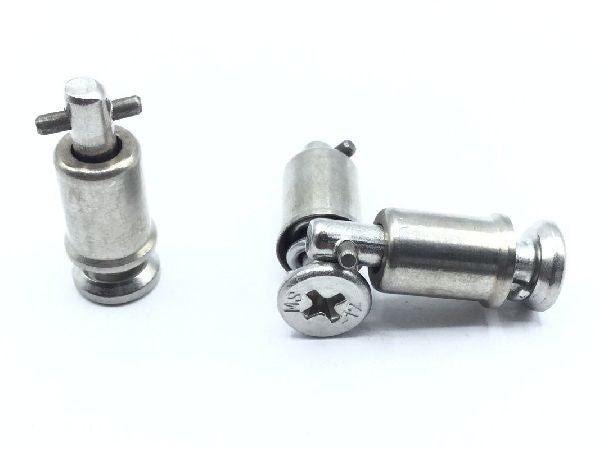

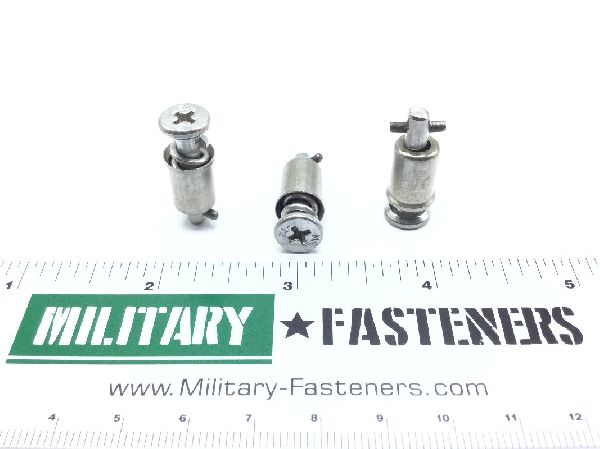

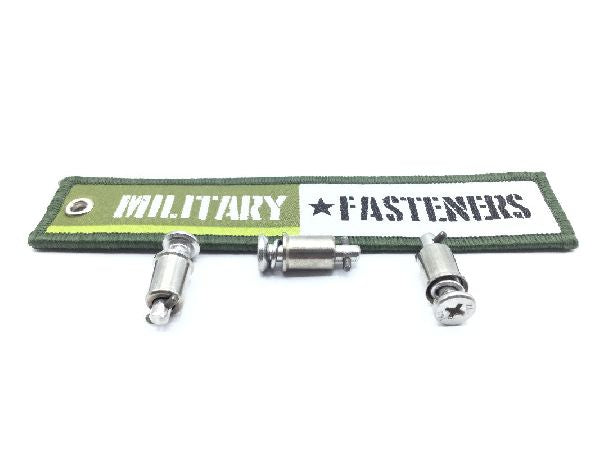

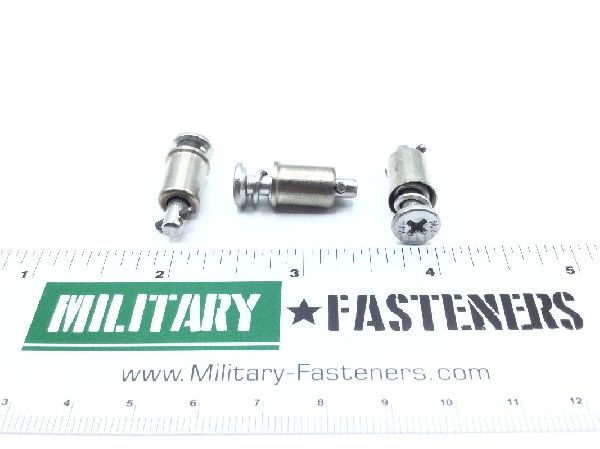

40S5-12S Turnlock Fastener Stud Assembly
- NSN
- 5325-01-625-3880
- ECCN
- EAR99
- Schedule
- 7318.15.5000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Distance From Engaging Member To Largest Bearing Surface Of Head
- Between 0.713 inches and 0.723 inches
- Drive Type
- Cross recess
- End Application
- Ch-53a/d/e
- Eyelet Length
- 0.502 inches
- Eyelet Outside Diameter
- Between 0.341 inches and 0.348 inches
- Material Accommodated Thickness
- Between 0.261 inches and 0.410 inches
- Material Specification
- Astm a313 assn standard single material response or ams-qq-s-763 federal specification single material response pin
- Part Name Assigned By Controlling Agency
- Stud assembly flat head cross recess
- Special Features
- Astm a582 or astm a666 astm a240 spacer material is 300 series cres per astm a666 or astm a240;spring material is 302 cres per astm a313 or ams-qq-s-763;cup material is 300 series cres per astm a167
- Stud Assembly Style
- Stud assembly
- Stud Head Height
- 0.102 inches
- Turnlock Stud Head Style
- Stud head
- Diameter
- Between 0.377 inches and 0.384 inches
