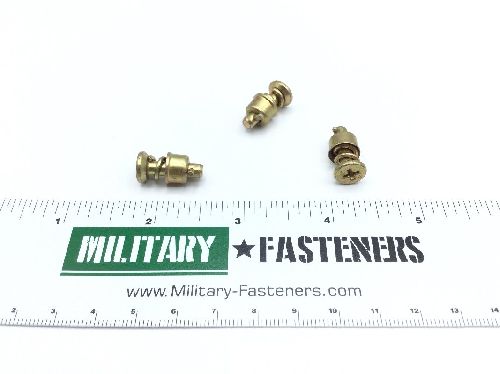

40S5-4 Turnlock Fastener Stud Assembly
40S5-4 Turnlock Fastener Stud Assembly (2)

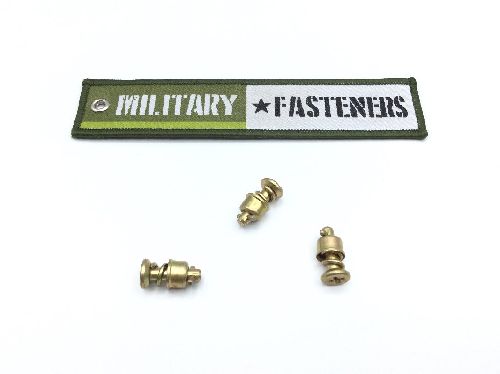

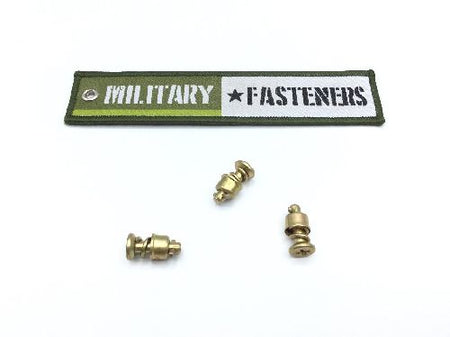

40S5-4 Turnlock Fastener Stud Assembly (3)

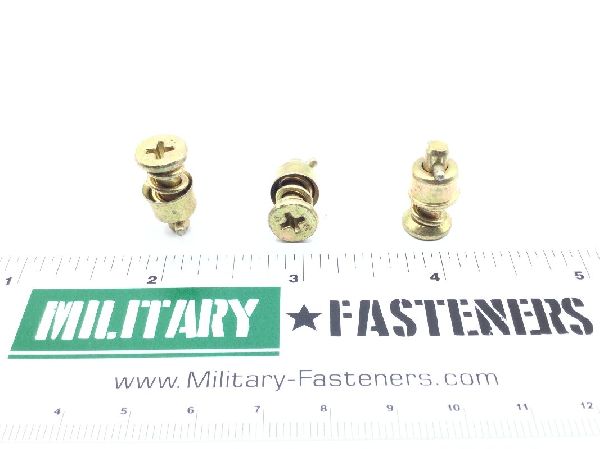

40S5-4 Turnlock Fastener Stud Assembly (4)

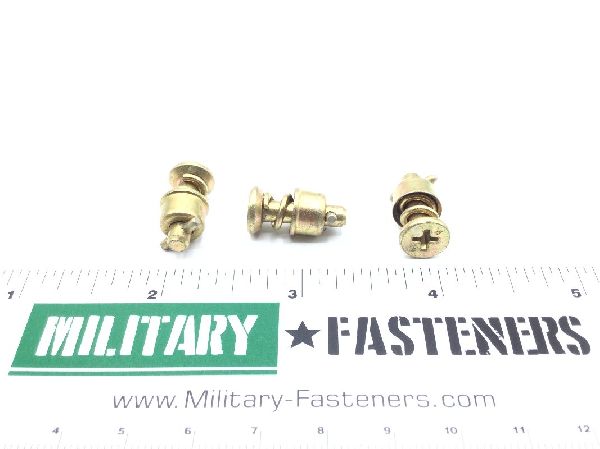

40S5-4 Turnlock Fastener Stud Assembly (5)

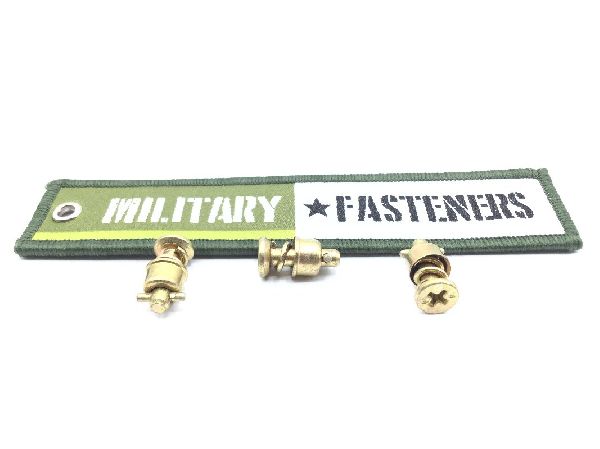

40S5-4 Turnlock Fastener Stud Assembly (6)

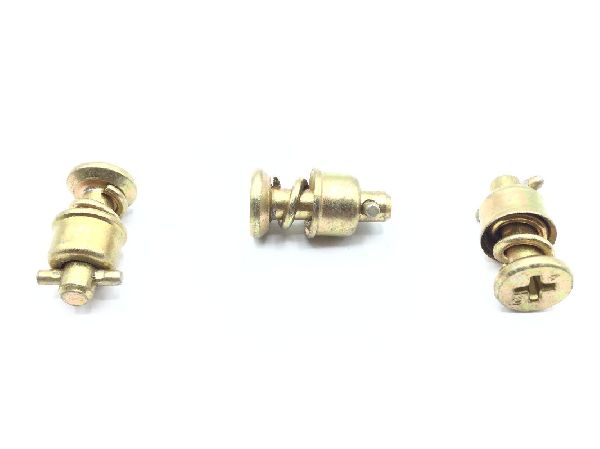

40S5-4 Turnlock Fastener Stud Assembly (7)

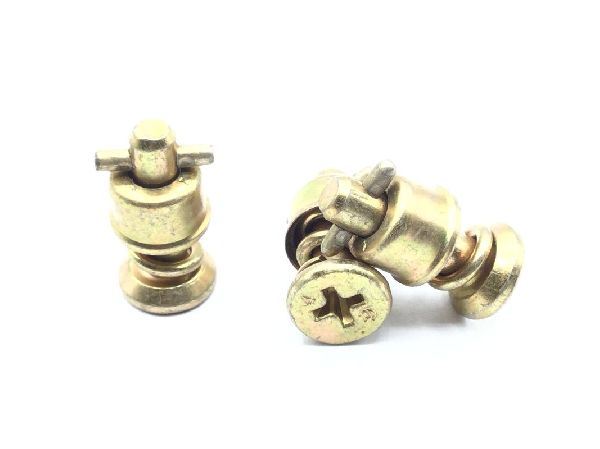

40S5-4 Turnlock Fastener Stud Assembly (8)

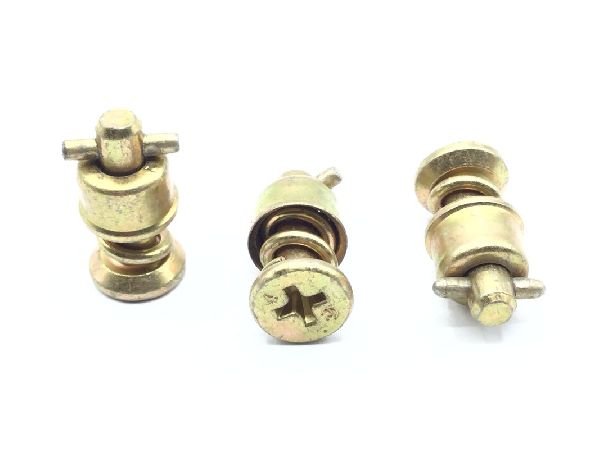

40S5-4 Turnlock Fastener Stud Assembly (9)
40S5-4 Turnlock Fastener Stud Assembly
40S5-4 Turnlock Fastener Stud Assembly (2)
40S5-4 Turnlock Fastener Stud Assembly (3)
40S5-4 Turnlock Fastener Stud Assembly (4)
40S5-4 Turnlock Fastener Stud Assembly (5)
40S5-4 Turnlock Fastener Stud Assembly (6)
40S5-4 Turnlock Fastener Stud Assembly (7)
40S5-4 Turnlock Fastener Stud Assembly (8)
40S5-4 Turnlock Fastener Stud Assembly (9)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

40S5-4 Turnlock Fastener Stud Assembly

ECCN
EAR99
Schedule
7318.15.5000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel pin
Surface Treatment
Cl 2 federal specification single treatment response type 2 qq-p-416
Distance From Engaging Member To Largest Bearing Surface Of Head
Between 0.433 inches and 0.443 inches
Drive Type
Cross recess
Eyelet Length
0.257 inches
Eyelet Outside Diameter
Between 0.341 inches and 0.348 inches
Material Accommodated Thickness
Between 0.141 inches and 0.170 inches
Material Specification
Qq-w-470 federal specification single material response pin
Stud Assembly Style
Stud assembly
Stud Head Height
0.102 inches
Turnlock Stud Head Style
Stud head
Diameter
Between 0.377 inches and 0.384 inches
