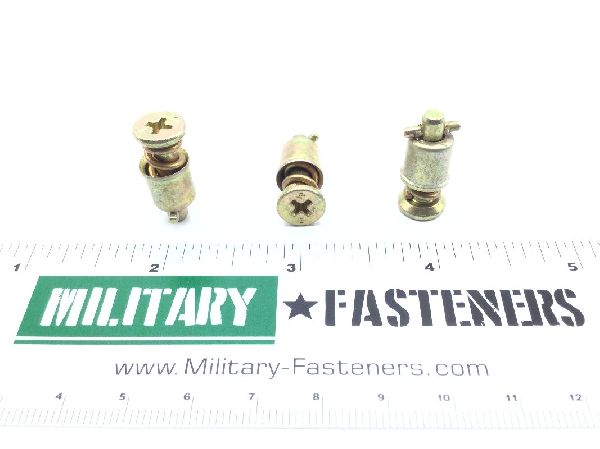

40S5-8 Turnlock Fastener Stud Assembly

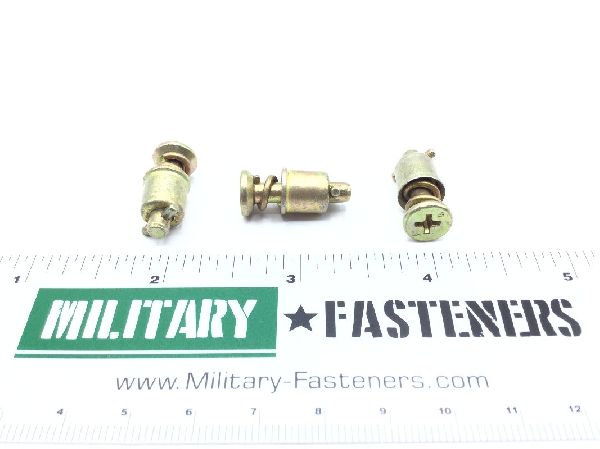

40S5-8 Turnlock Fastener Stud Assembly (2)

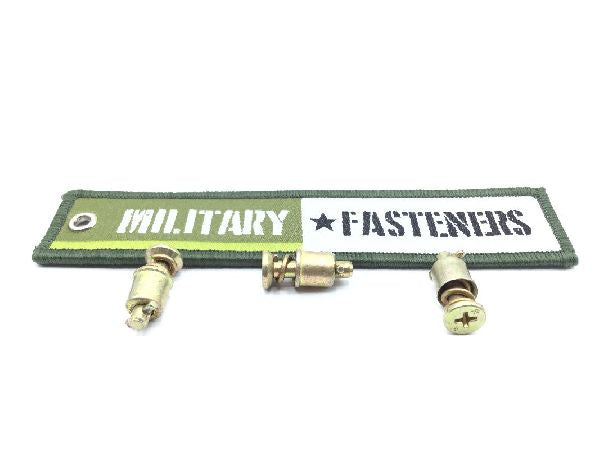

40S5-8 Turnlock Fastener Stud Assembly (3)

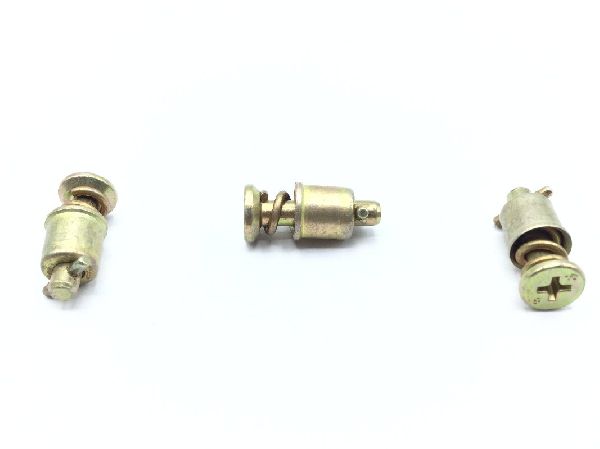

40S5-8 Turnlock Fastener Stud Assembly (4)

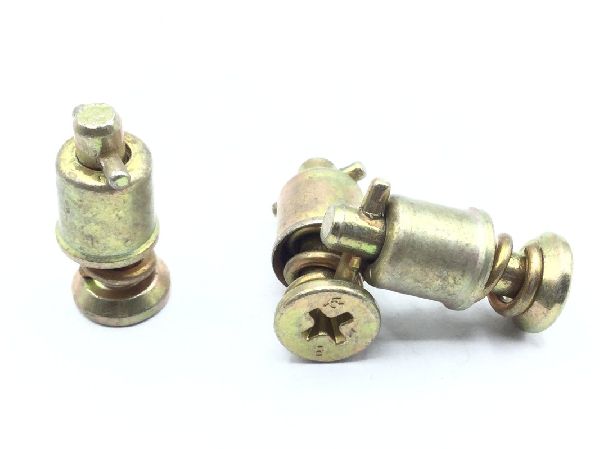

40S5-8 Turnlock Fastener Stud Assembly (5)

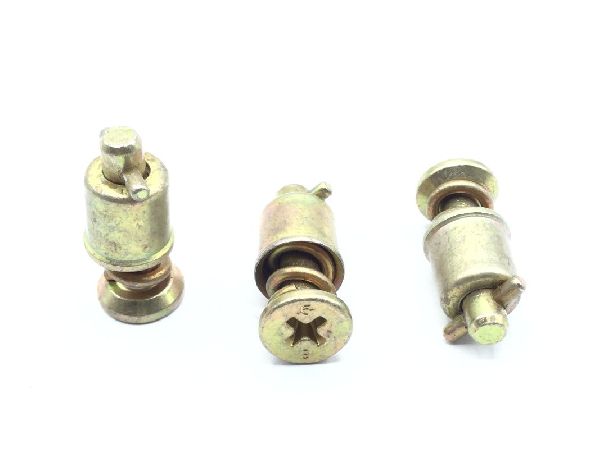

40S5-8 Turnlock Fastener Stud Assembly (6)
40S5-8 Turnlock Fastener Stud Assembly
40S5-8 Turnlock Fastener Stud Assembly (2)
40S5-8 Turnlock Fastener Stud Assembly (3)
40S5-8 Turnlock Fastener Stud Assembly (4)
40S5-8 Turnlock Fastener Stud Assembly (5)
40S5-8 Turnlock Fastener Stud Assembly (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

40S5-8 Turnlock Fastener Stud Assembly

ECCN
EAR99
Schedule
7318.15.5000
Price per Unit $6.35
Units per Pack 10
Price per Pack $63.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $63.50
Add item to quote
Material
Steel
Distance From Engaging Member To Largest Bearing Surface Of Head
Between 0.633 inches and 0.643 inches
Drive Type
Cross recess
Eyelet Length
0.382 inches
Eyelet Outside Diameter
Between 0.412 inches and 0.427 inches
Material Accommodated Thickness
Between 0.261 inches and 0.290 inches
Securing Device Type
Spring
Stud Assembly Style
Stud assembly
Stud Head Height
Between 0.082 inches and 0.102 inches
Turnlock Stud Head Style
Stud head
Diameter
Between 0.377 inches and 0.384 inches
