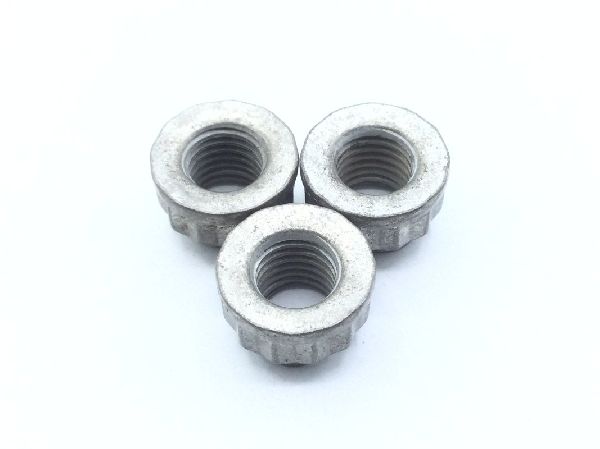

42FLW428 Self-Locking Extended Washer Nut

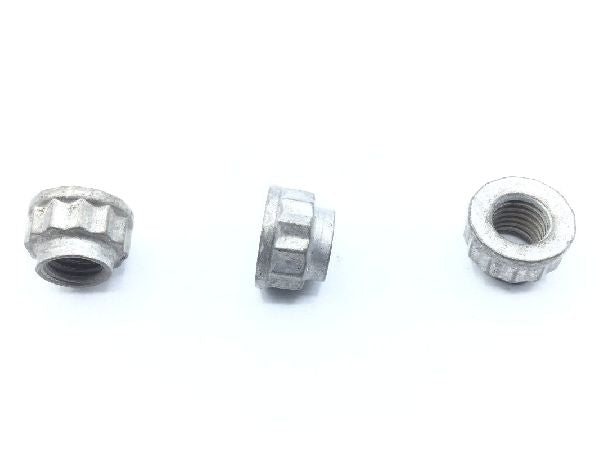

42FLW428 Self-Locking Extended Washer Nut (2)

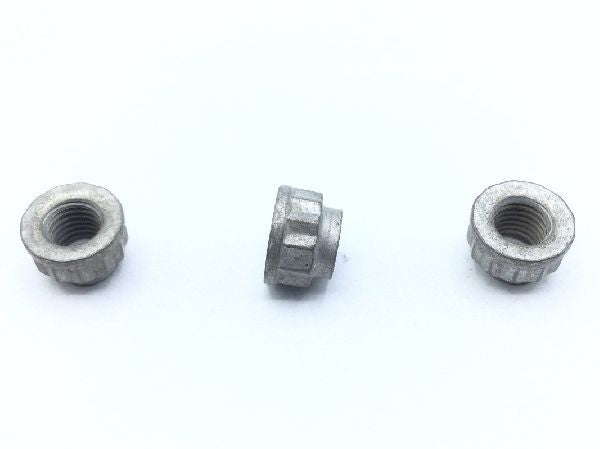

42FLW428 Self-Locking Extended Washer Nut (3)

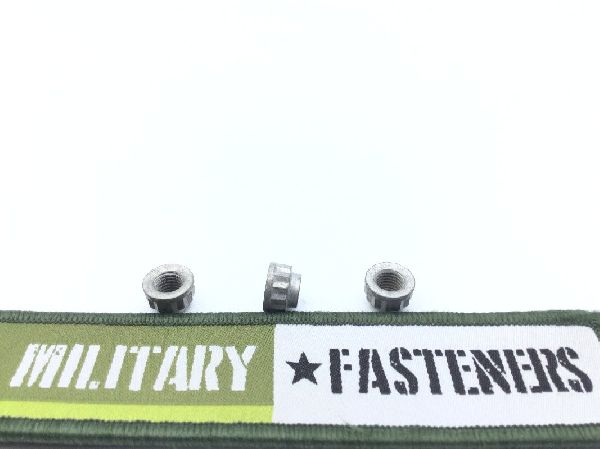

42FLW428 Self-Locking Extended Washer Nut (4)

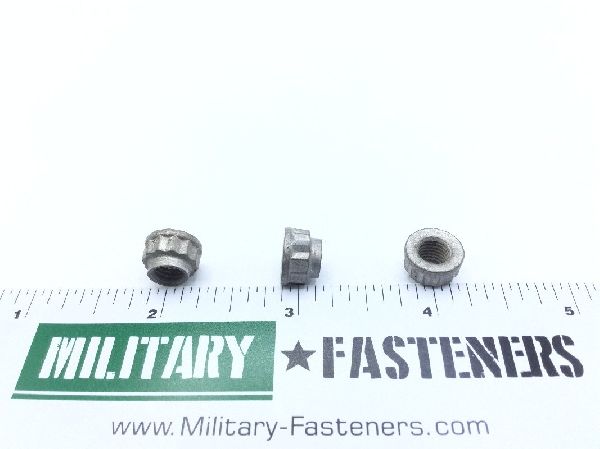

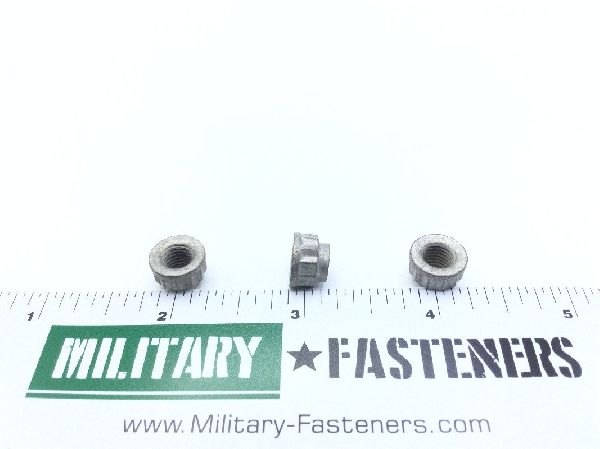

42FLW428 Self-Locking Extended Washer Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

42FLW428 Self-Locking Extended Washer Nut

ECCN: EAR99
Schedule: 7318.22.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Hardness Rating: Between 34.0 rockwell c and 43.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 6280 assn standard single material response or ams 6300 assn standard single material response or ams 6322 assn standard single material response
Nut Style: Double hexagon
Overall Height: 0.290 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Washer Outside Diameter: 0.444 inches
Washer Thickness: 0.040 inches
Width Across Flats: Between 0.367 inches and 0.376 inches
Lubrication: Dry film lubricant
