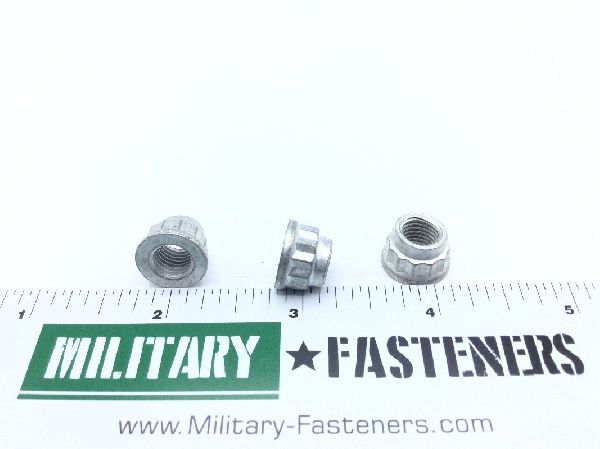

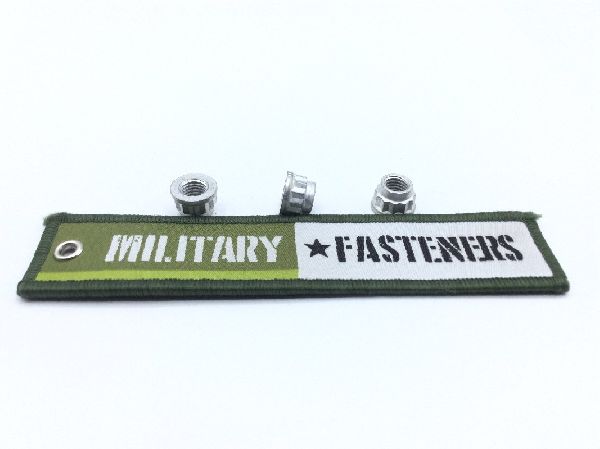

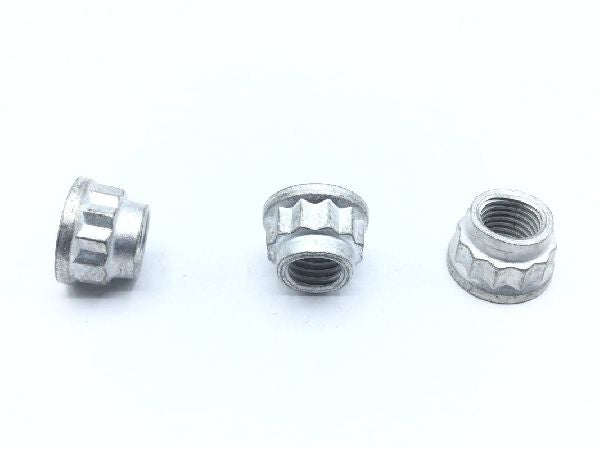

42FLW524 Self-Locking Extended Washer Nut

42FLW524 Self-Locking Extended Washer Nut (2)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

42FLW524 Self-Locking Extended Washer Nut

NSN: 5310-00-811-8050
ECCN: EAR99
Schedule: 7318.22.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 8630 or steel comp 4037 or steel comp 8740

Surface Treatment

Cl 3 federal specification single treatment response type 1 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Hardness Rating: Between 34.0 rockwell c and 43.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams6280 assn standard 1st material response or ams6300 assn standard 2nd material response or ams6322 assn standard 3rd material response
Nut Style: Double hexagon
Overall Height: 0.363 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.547 inches
Washer Thickness: 0.044 inches
Width Across Flats: Between 0.430 inches and 0.439 inches
Lubrication: Soluble lubricant
