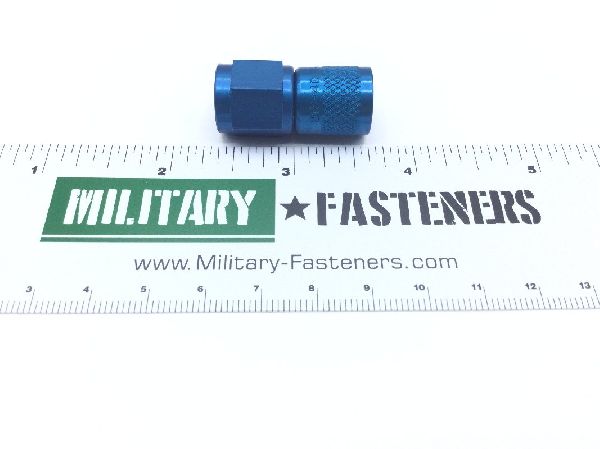

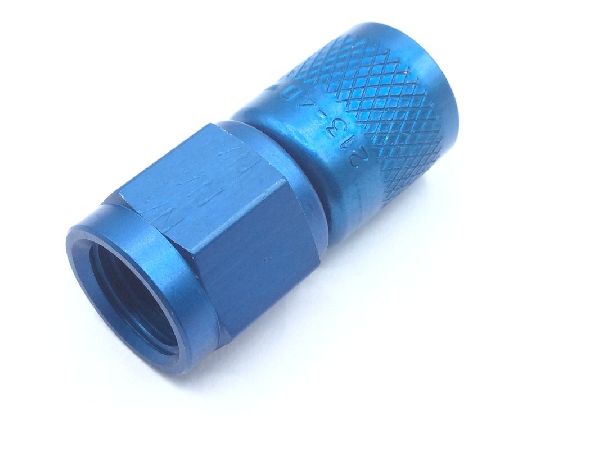

471-4D Straight Tube To Hose Adapter

ECCN: EAR99
Schedule: 8307.10.6000

Price per Unit $52.50

Units per Pack 2

Price per Pack $105.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $105.00

Add item to quote

Material

Aluminum alloy 2024 or aluminum alloy 7075

Surface Treatment

Type 2 military specification single treatment response mil-a-8625

Thread Class

3b 1st end

Thread Size

0.438 inches 1st end

Connection Style: Flare (tube) style 3 optional end 1st end swivel nut
Connection Type: Threaded external hose gripping 2nd end
End Application: Ohio class ssn (trident) 23n ship grumman a10 aircraft
Furnished Items And Quantity: 1 hose coupling nut
Inside Diameter Hose Accommodated: 0.250 inches 2nd end
Material Specification: T73 federal specification single material response t851 federal specification single material response or qq-a-225/9 qq-a-225/6
Maximum Operating Pressure: 200.0 pounds per square inch single response
Nominallength: 1.594 inches
Outside Diameter Hose Accommodated: 0.469 inches 2nd end
Outside Diameter Tube Accommodated: 0.250 inches 1st end
Seat Angle: 37.0 degrees 1st end
Specification Data: 96906-ms27404 government standard
Thread Series Designator: Unf (fine thread) 1st end
