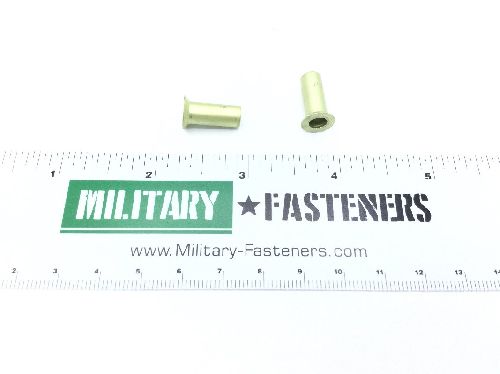

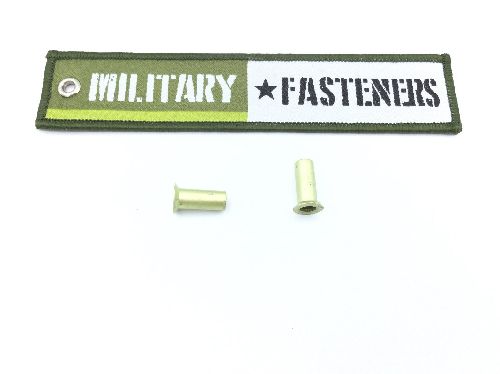

A10K166 Plain Blind Rivet Nut

ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk reverse keyed

Material

Aluminum alloy 6053

Surface Treatment

Mil-a-8625 military specification single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.190 inches

End Application: galaxy c-5; f117a aircraft viking s-3b; aircraft b-1 aircraft; aircraft minuteman lgm-30; support equipment prowler ea-6b; missile w/s: aircraft
Err Default: +0.116 to 0.166 inches
Head Countersink Angle: 100.0 degrees
Head Height: 0.065 inches
Key Length: 0.065 inches
Material Specification: Qq-a-430 federal specification single material response
Nut Diameter: Between 0.246 inches and 0.250 inches
Nut Length: Between 0.610 inches and 0.640 inches
Nut Style: Blind rivet w/smooth round shank
Shank End Type: Open
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Head Diameter: 0.391 inches
