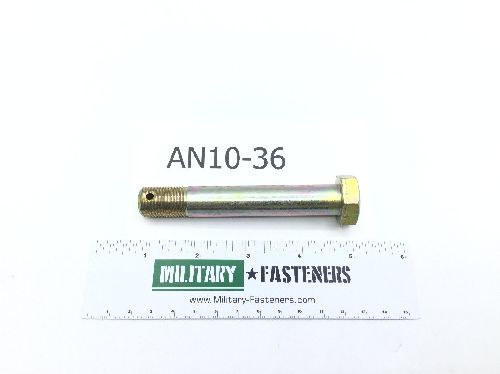

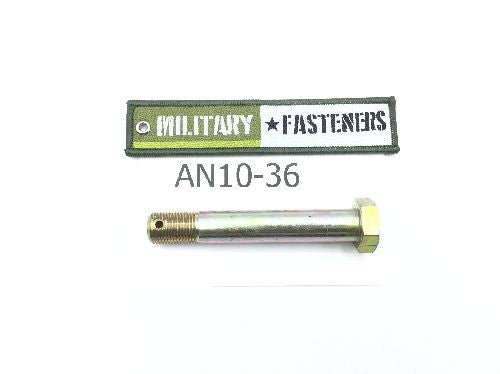

AN10-36 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $13.50

Units per Pack 5

Price per Pack $67.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $67.50

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Class 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Distance From Head Largest Surface To Shank Hole Center: 3.656 inches first hole and 3.688 inches first hole
Fastener Length: Between 3.875 inches and 3.922 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 2.922 inches and 2.953 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.328 inches and 0.360 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.141 inches first hole and 0.151 inches first hole
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: Between 0.922 inches and 1.000 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.928 inches and 0.940 inches
