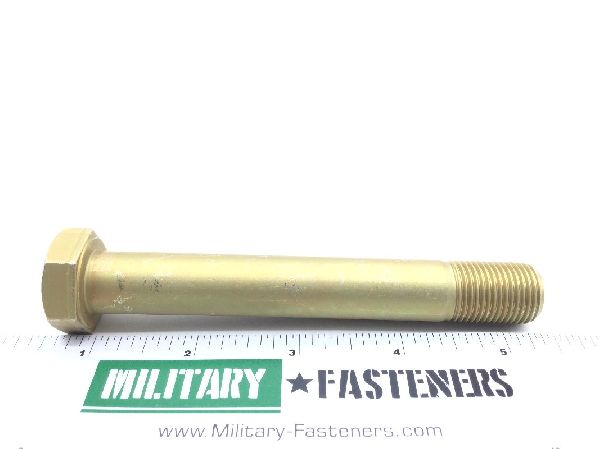

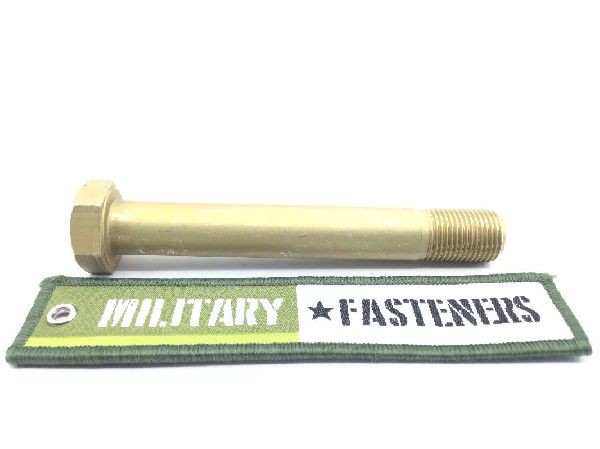

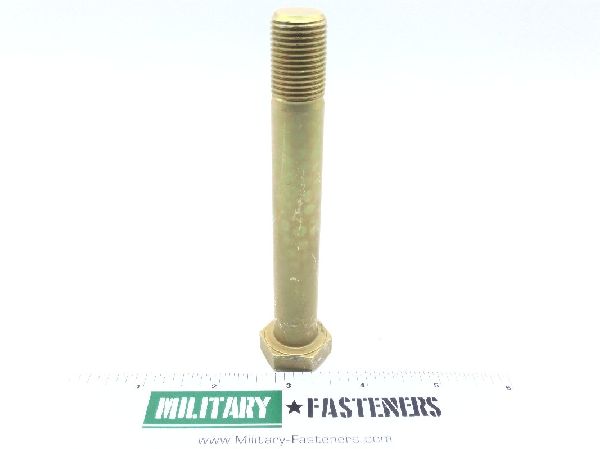

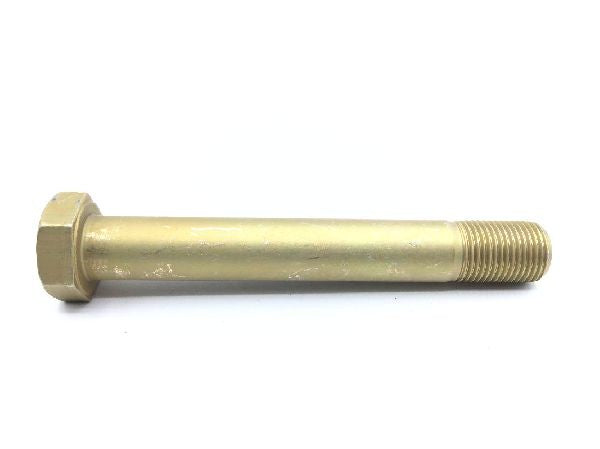

AN10-42A Machine Bolt

AN10-42A Machine Bolt (2)

AN10-42A Machine Bolt (3)

AN10-42A Machine Bolt (4)

AN10-42A Machine Bolt (5)

AN10-42A Machine Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN10-42A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $55.39

Units per Pack 1

Price per Pack $55.39

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $55.39

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

3a

Fastener Length: 4.391 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 3.438 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.328 inches and 0.360 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.625 inches
Thread Direction: Right-hand
Thread Length: 0.953 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.928 inches and 0.940 inches
