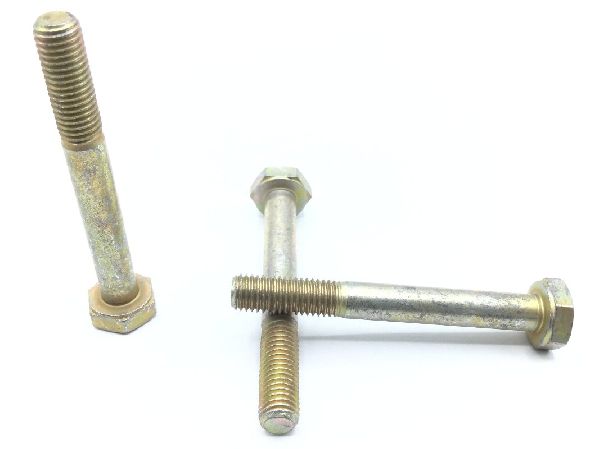

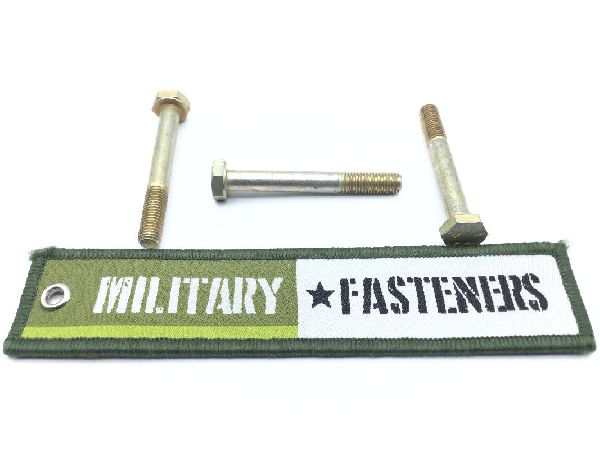

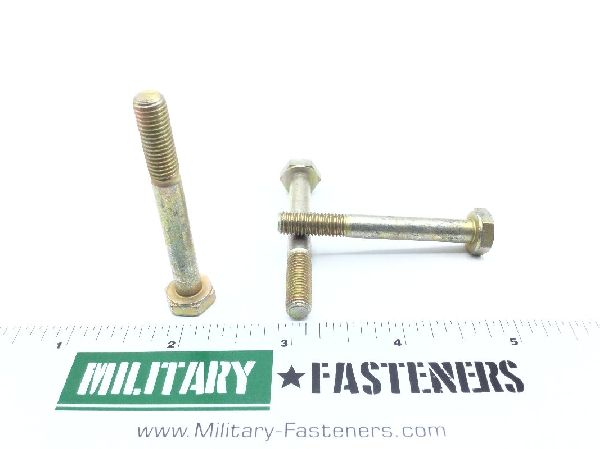

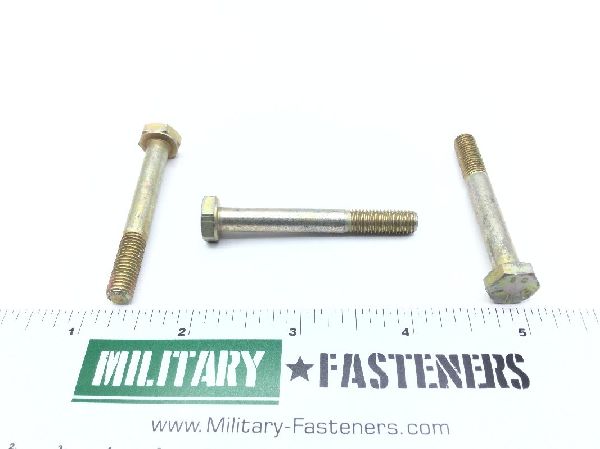

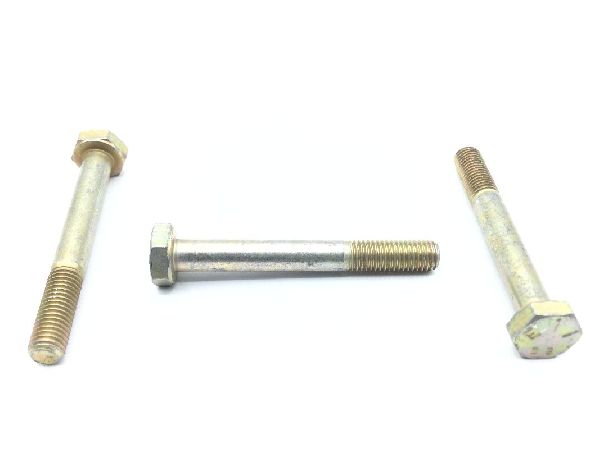

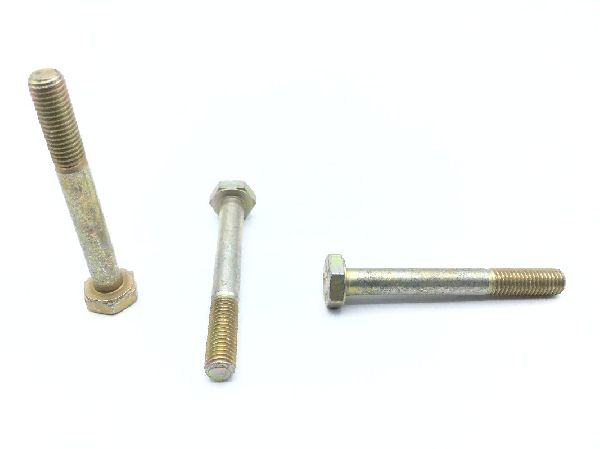

AN101128 Machine Bolt

AN101128 Machine Bolt (2)

AN101128 Machine Bolt (3)

AN101128 Machine Bolt (4)

AN101128 Machine Bolt (5)

AN101128 Machine Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN101128 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.19

Units per Pack 5

Price per Pack $40.95

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $40.95

Add item to quote

Head Style

Hexagon

Material

Steel

Thread Class

3a

Fastener Length: 2.0 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 1.446 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: 0.156 inches
Material Specification: Ams 6322 assn standard single material response
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.554 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: 0.438 inches
