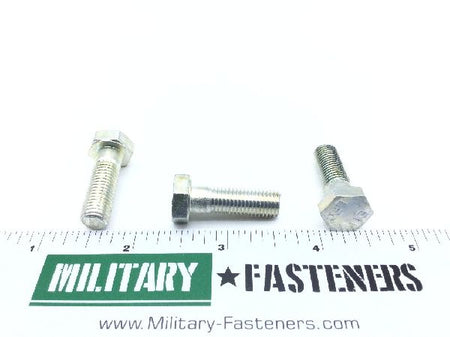

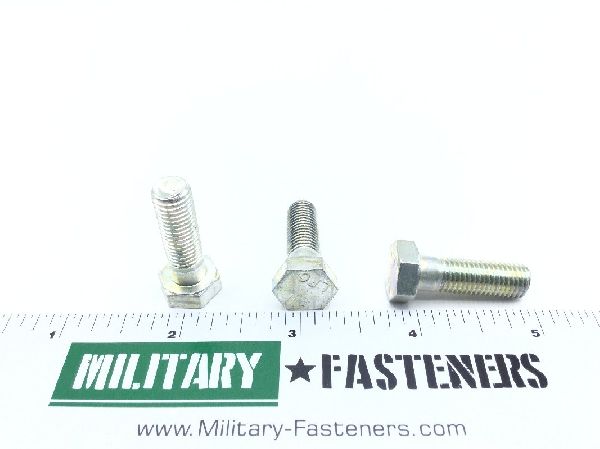

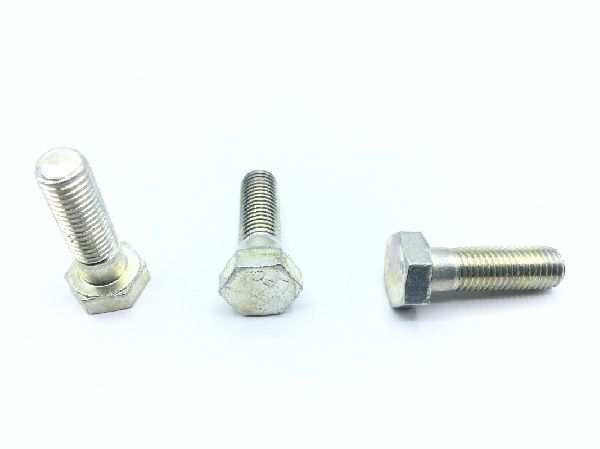

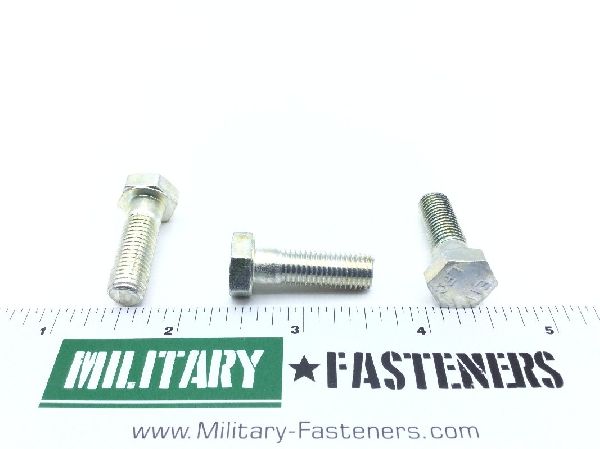

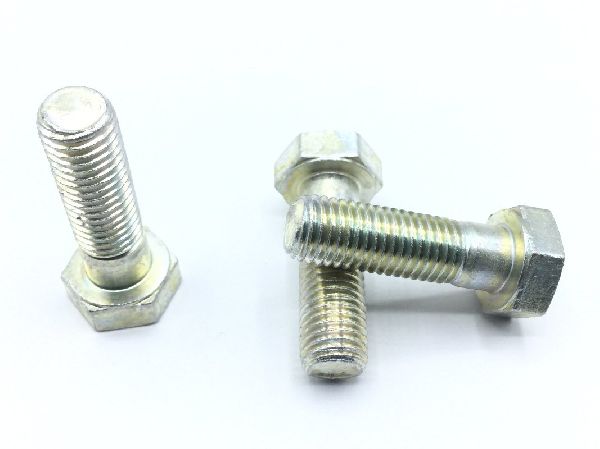

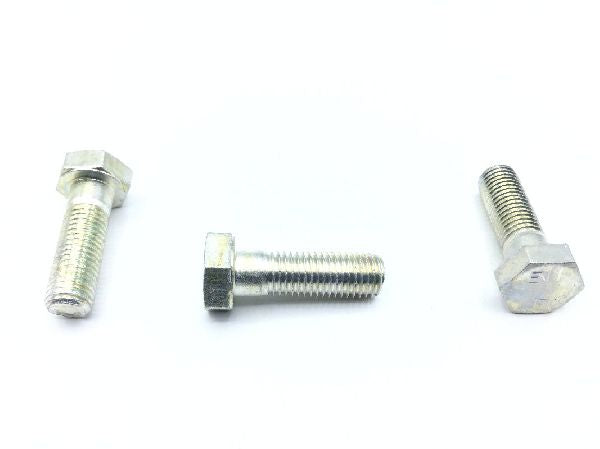

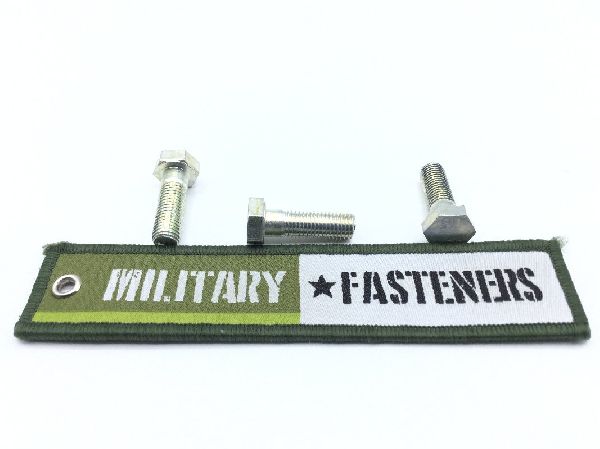

AN101212 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $8.32

Units per Pack 5

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Hexagon

Material

Steel comp 8740

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

Fastener Length: Between 0.990 inches and 1.010 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.252 inches and 0.312 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.178 inches and 0.198 inches
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.678 inches and 0.758 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
