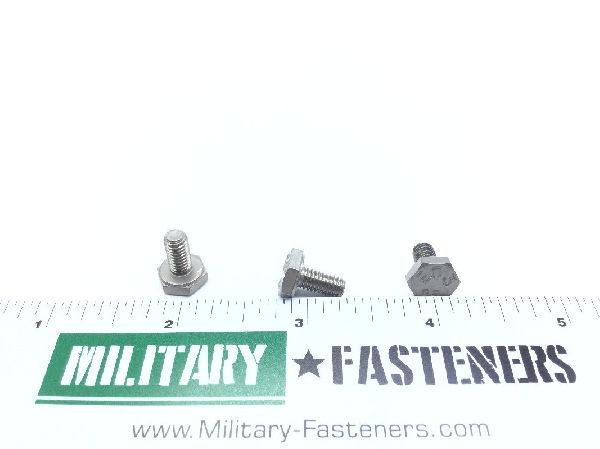

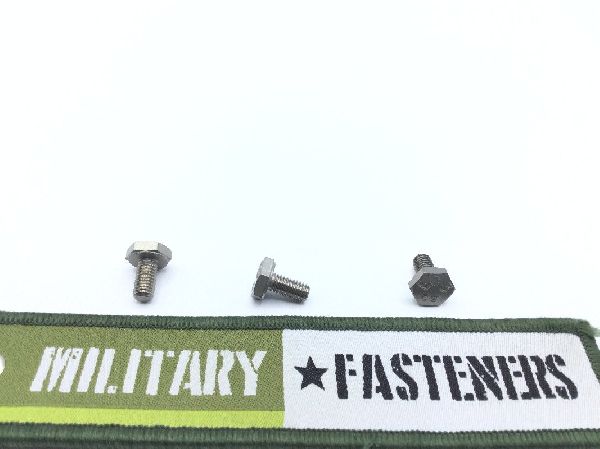

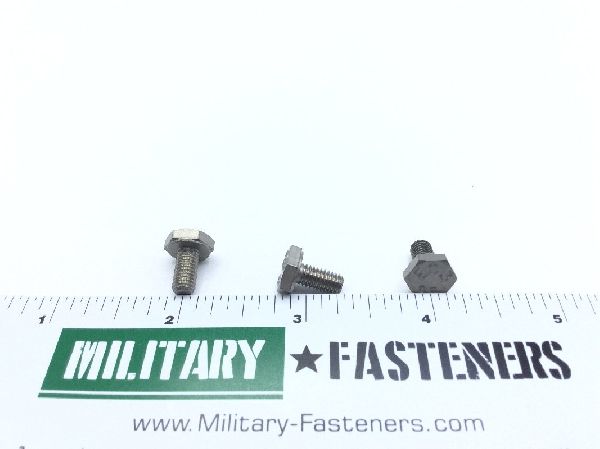

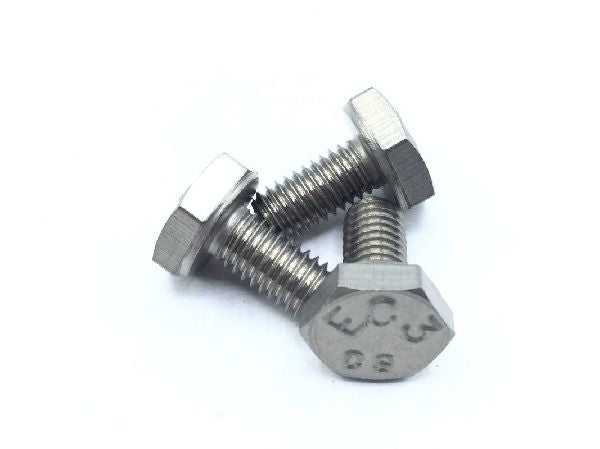

AN104606 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Head Style

Hexagon

Material

Steel comp 302

Thread Class

Fastener Length: Between 0.365 inches and 0.385 inches
Features: Finished head
Features Provided: Finished head
Head Height: Between 0.115 inches and 0.135 inches
Material Specification: Ams 5637 assn standard single material response
Surface Finish: 63.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.303 inches and 0.365 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
