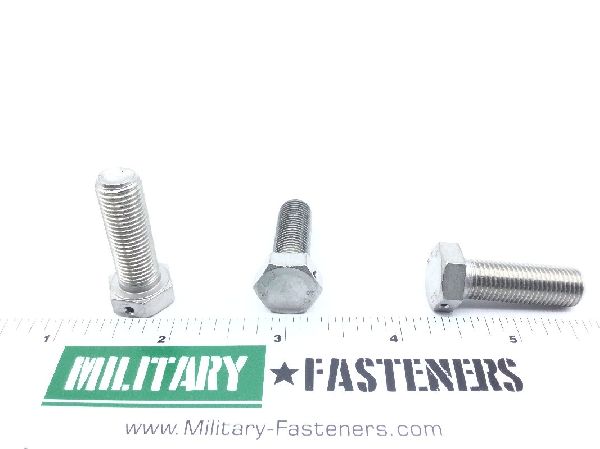

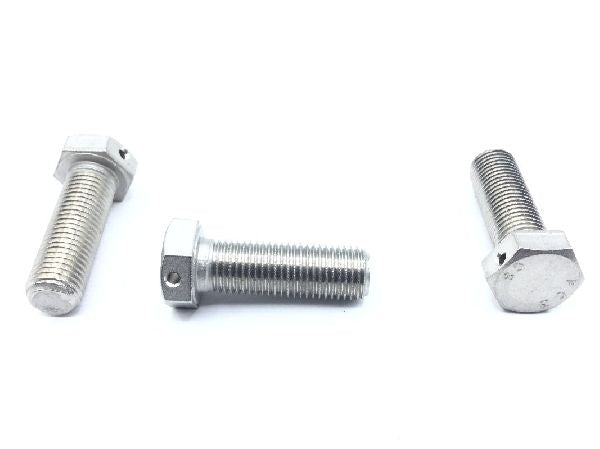

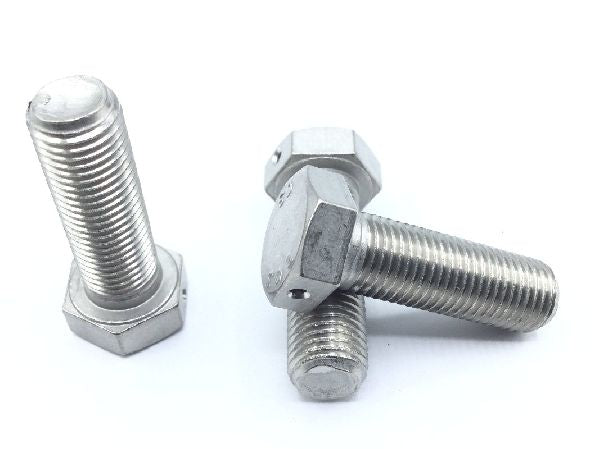

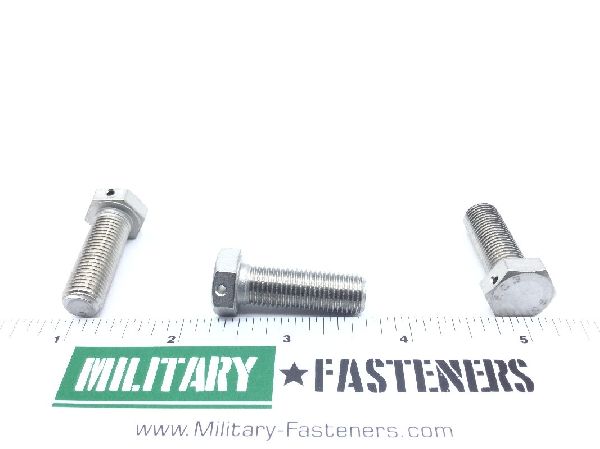

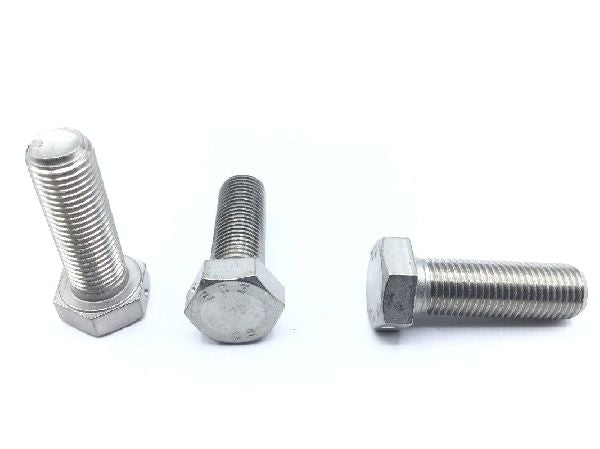

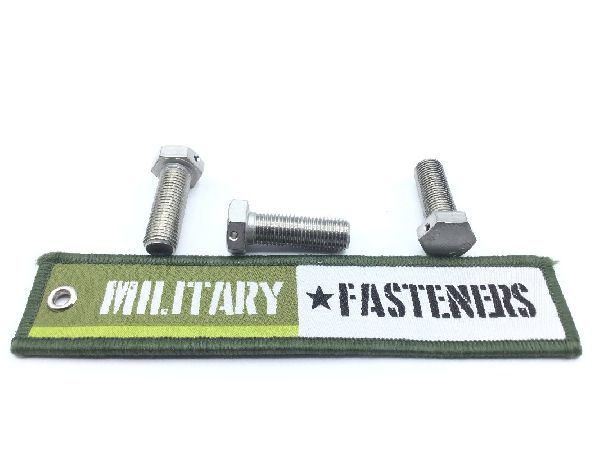

AN106714 Machine Bolt

Product Series: AN
ECCN: 9A991
Schedule: 7318.15.8085

Price per Unit $16.94

Units per Pack 5

Price per Pack $84.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $84.70

Add item to quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: 1.125 in
Features: Finished head
Features Provided: Finished head
Grip Length: 0.125 in
Head Height: 0.219 in
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Material Specification: Ams 7472 assn standard single material response
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.375 in
Thread Direction: Right-hand
Thread Length: 1.000 in
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.553 in and 0.564 in
Hole Diameter: 0.070 inches
