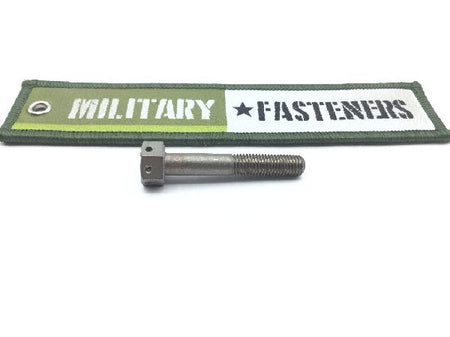

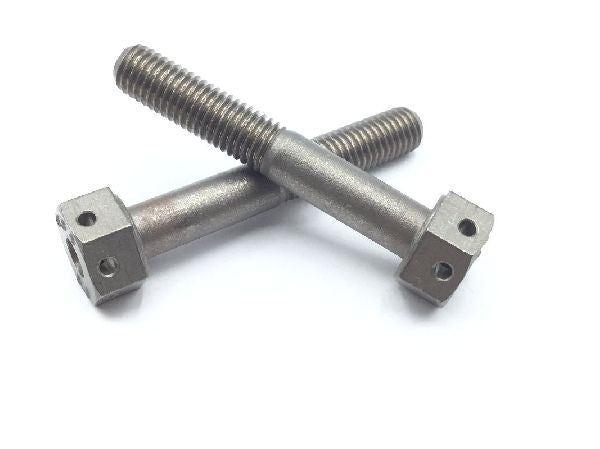

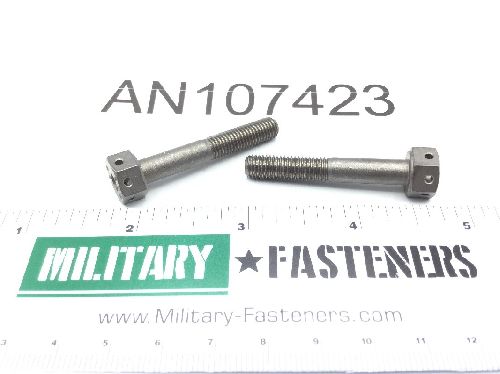

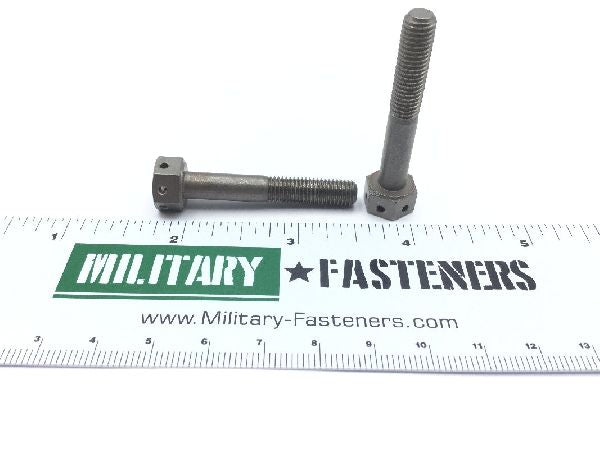

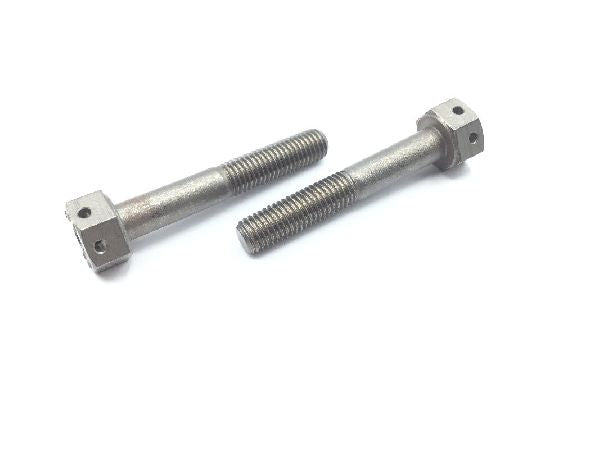

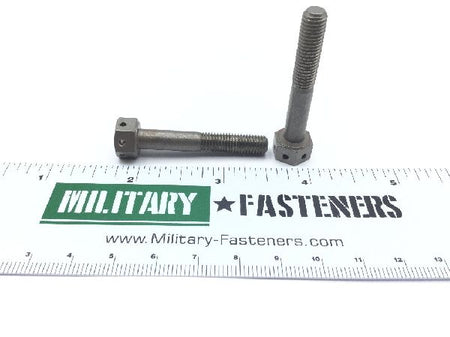

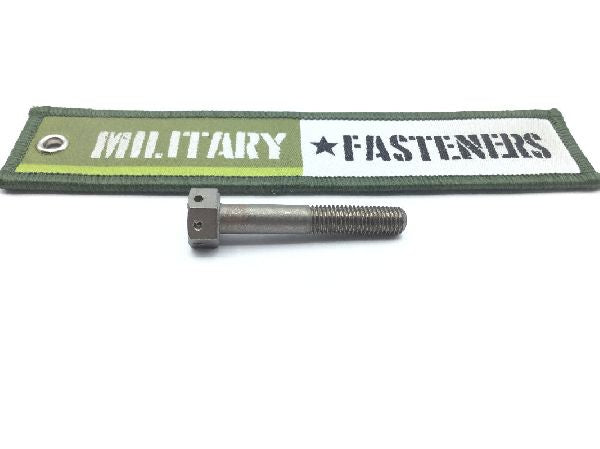

AN107423 Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $18.71

Units per Pack 5

Price per Pack $93.55

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $93.55

Add item to quote

Head Style

Dished hexagon

Material

Steel comp

Thread Class

Fastener Length: 1.562 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.752 inches and 0.812 inches
Head Height: 0.25 inches
Hole Configuration Style: Hexagon longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Material Specification: Ams 5637 assn standard single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Surface Finish: 63.0 microinches surface of head
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.750 inches and 0.810 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.070 inches
