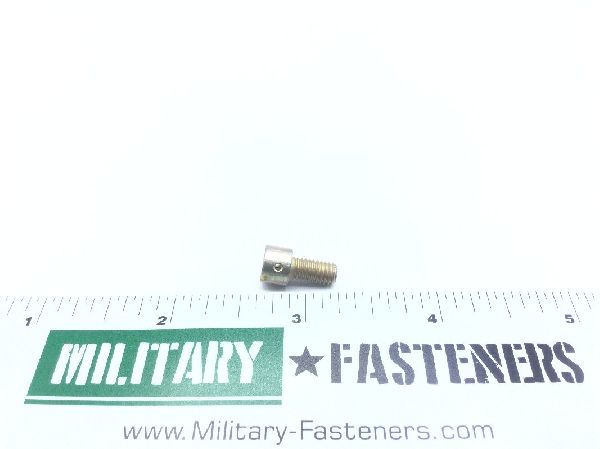

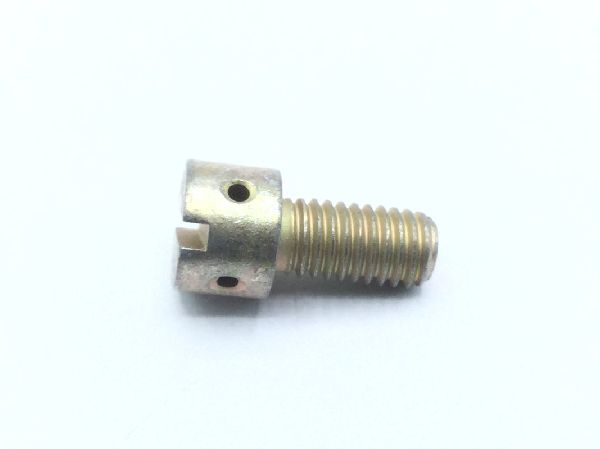

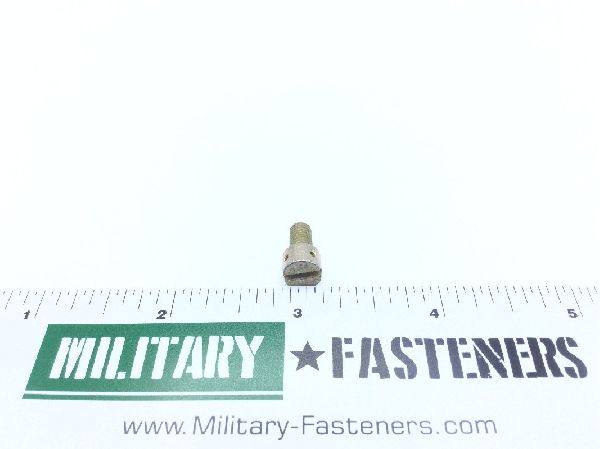

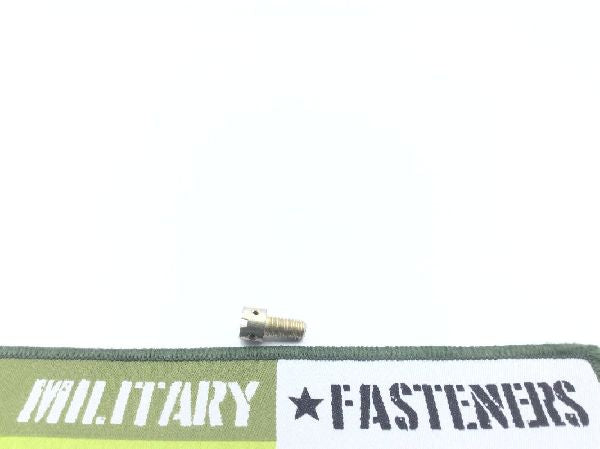

AN115807 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Flat chamfer

Thread Class

Fastener Length: Between 0.365 inches and 0.385 inches
Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.209 inches and 0.229 inches
Head Hole Configuration Style: Round
Hole Quantity: 2
Internal Drive Style: Slot
Min. Tensile Strength (psi): 125000 pounds per square inch
Screw Material: Steel comp 8740
Screw Material Specification: Ams 6322 assn standard single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Ams 2400 assn standard single treatment response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.323 inches and 0.385 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.292 inches and 0.313 inches
Hole Diameter: Between 0.042 inches and 0.052 inches
