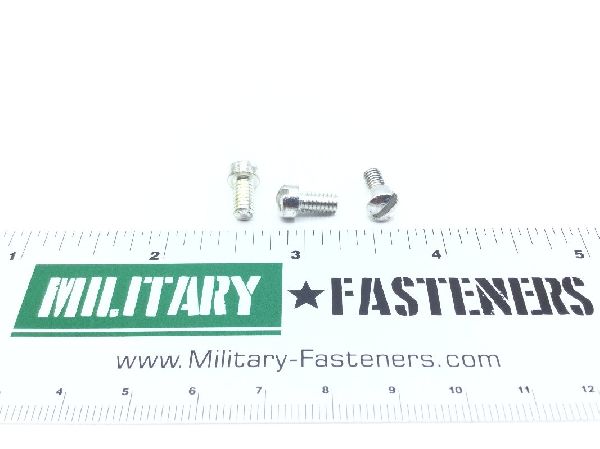

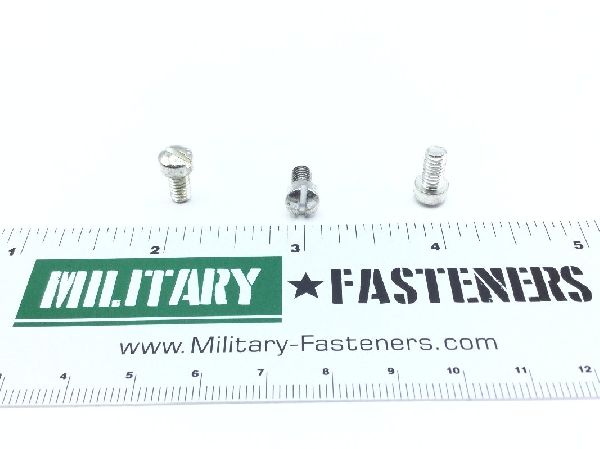

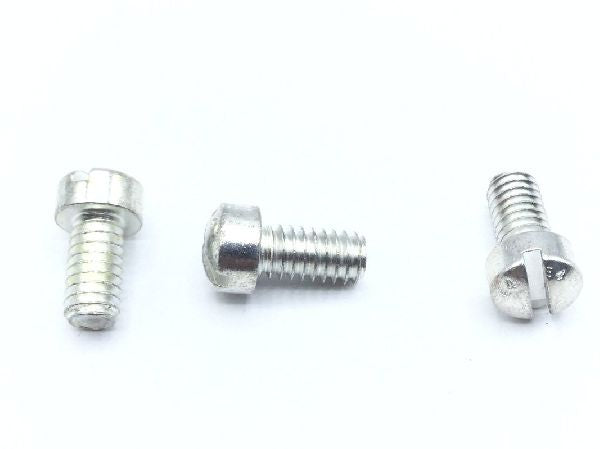

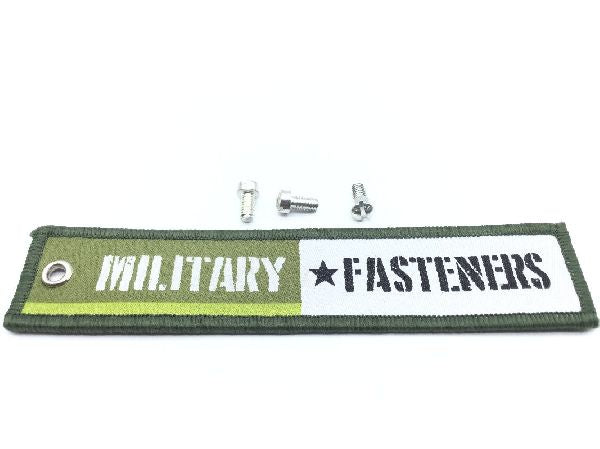

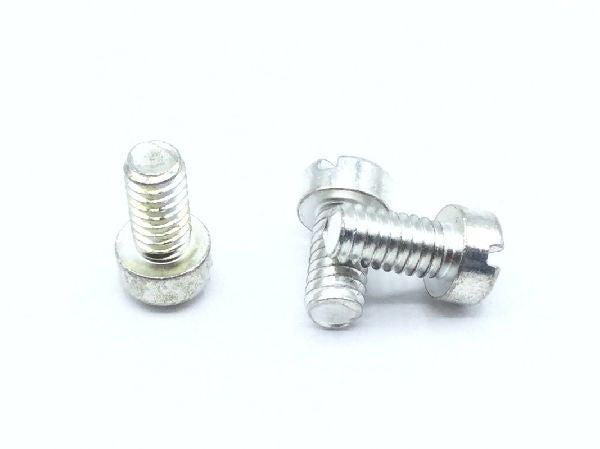

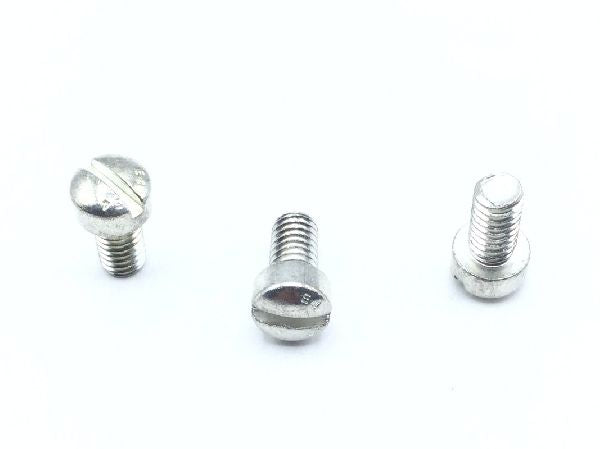

AN117003 Machine Screw

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.20

Units per Pack 20

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Head Style

Fillister

Thread Class

Fastener Length: Between 0.302 inches and 0.322 inches
Hardness Rating: Between 80.0 rockwell b and 100.0 rockwell b
Head Height: Between 0.102 inches and 0.113 inches
Internal Drive Style: Slot
Min. Tensile Strength (psi): 70000 pounds per square inch
Screw Material: Steel
Screw Material Specification: Ams 5061 assn standard single material response
Screw Surface Treatment: Cadmium
Screw Surface Treatment Specification: Ams 2400 assn standard single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.240 inches and 0.302 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.25 inches and 0.27 inches
