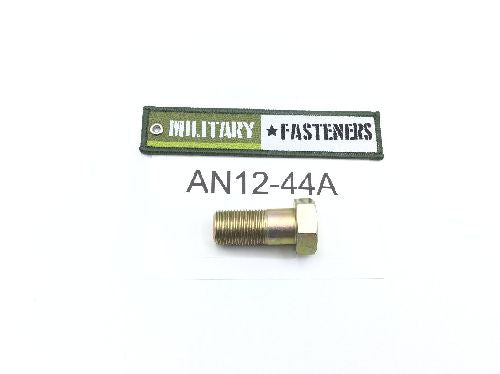

AN12-44A Machine Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $63.00

Units per Pack 2

Price per Pack $126.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $126.00

Add item to quote

Head Style

Hexagon

Material

Steel comp

Surface Treatment

Qq-p-416 type 2 class 3 federal specification single treatment response

Thread Class

Departure From Cited Designator: As mod by material spec
Fastener Length: 4.656 inches
Features: Finished head
Features Provided: Finished head
Grip Length: 3.562 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.390 inches and 0.422 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.750 inches
Thread Direction: Right-hand
Thread Length: 1.094 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 1.053 inches and 1.066 inches
