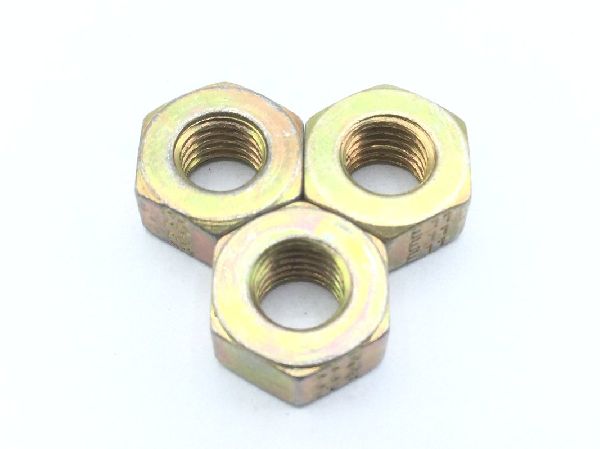

AN121502 Plain Hexagon Nut

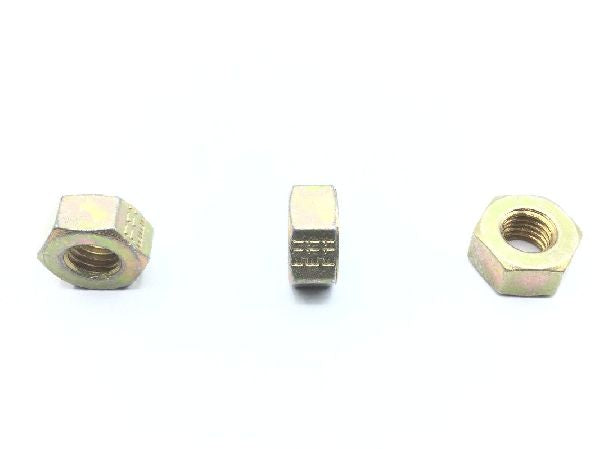

AN121502 Plain Hexagon Nut (2)

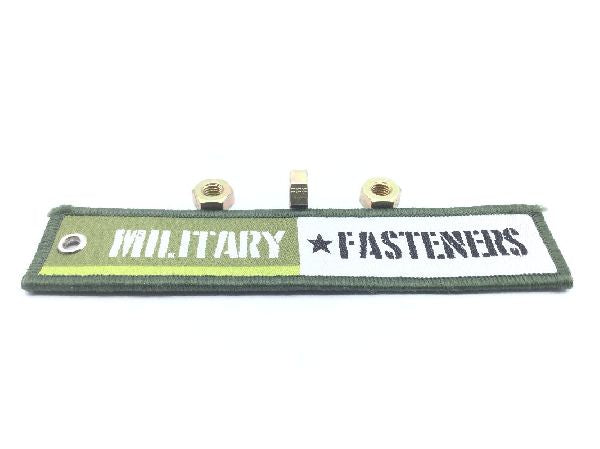

AN121502 Plain Hexagon Nut (3)

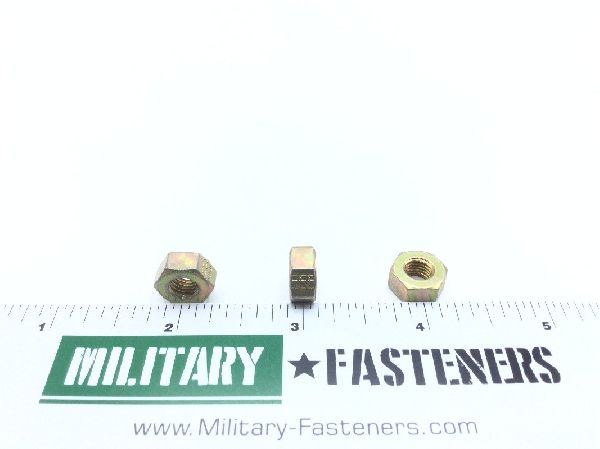

AN121502 Plain Hexagon Nut (4)
AN121502 Plain Hexagon Nut
AN121502 Plain Hexagon Nut (2)
AN121502 Plain Hexagon Nut (3)
AN121502 Plain Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN121502 Plain Hexagon Nut

Product Series
AN
ECCN
EAR99
Schedule
7318.16.0085
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel comp 8740
Surface Treatment
Ams 2400 assn standard single treatment response
Thread Class
3b
Thread Series
Unf (fine thread)
Thread Size
0.250 inches
Bearing Surface Finish
63.0 microinches
Bearing Surface Type
Chamfered or washer faced
Countersink Angle
85.0 degrees nut and 95.0 degrees nut
Material Specification
Ams 6322 assn standard single material response
Nut Height
Between 0.209 inches and 0.229 inches
Nut Style
Hexagon
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
28
Width Across Flats
Between 0.430 inches and 0.439 inches
