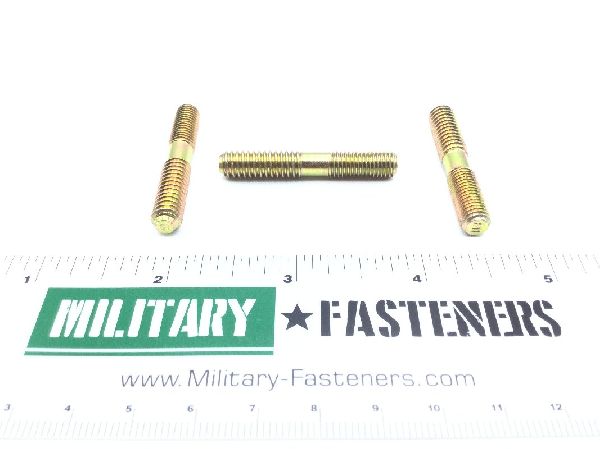

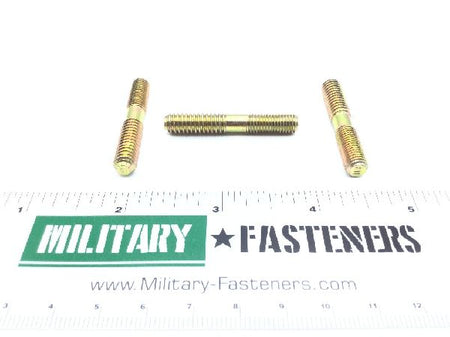

AN126022 Plain Stud

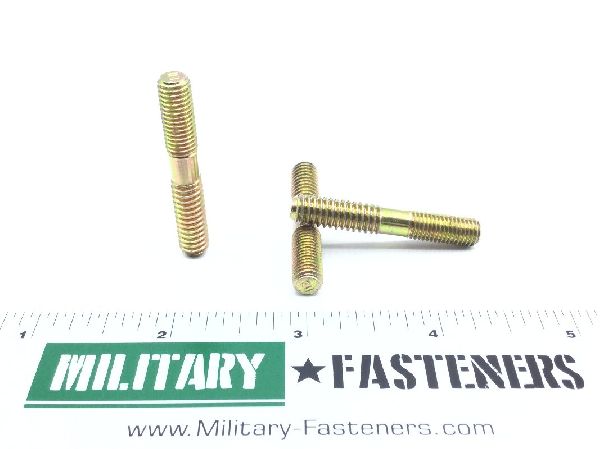

AN126022 Plain Stud (2)

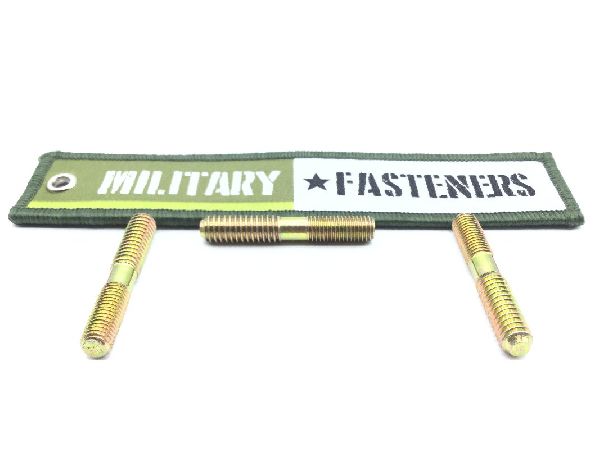

AN126022 Plain Stud (3)

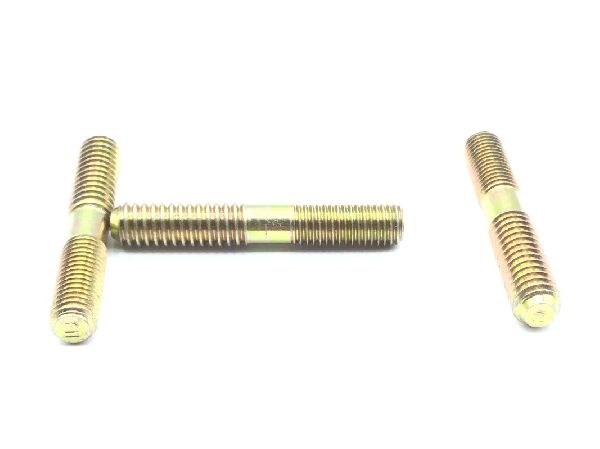

AN126022 Plain Stud (4)

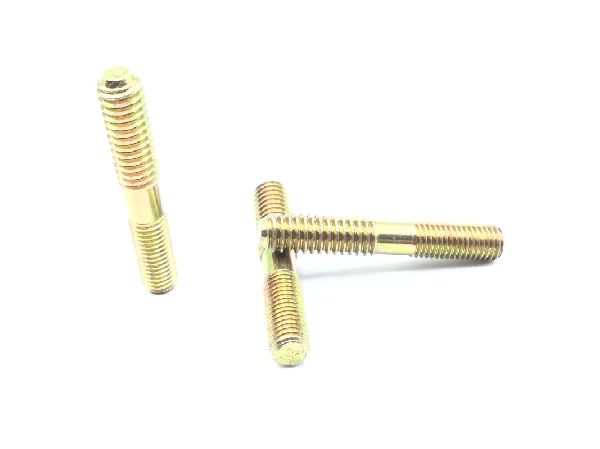

AN126022 Plain Stud (5)

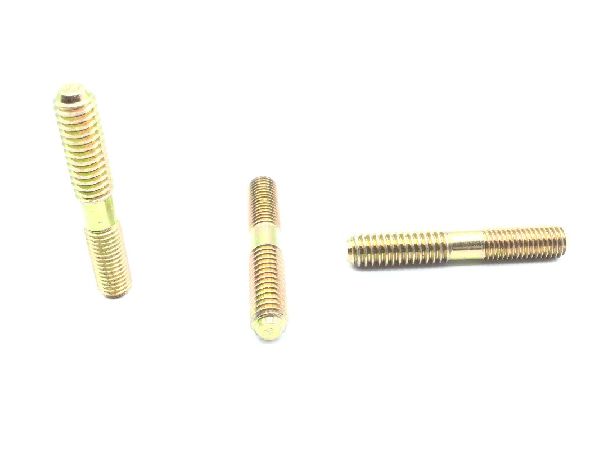

AN126022 Plain Stud (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

AN126022 Plain Stud

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.5030

Price per Unit $30.98

Units per Pack 2

Price per Pack $61.96

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $61.96

Add item to quote

Material

Steel

Overall Length

Between 1.615 inches and 1.635 inches

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

3a nut thread

Thread Size

0.25 inches stud thread

Hardness Rating: Between 26.0 rockwell c and 32.0 rockwell c
Material Specification: Ams 6322 assn standard single material response
Surface Finish: 32.0 microinches nut thd
Thread Direction: Right-hand nut thread
Thread Length: 0.688 inches stud thread
Thread Pitch Diameters: +0.2338/+0.2353 inches stud thread
Thread Qty Per Inch (tpi): 20 stud thread
Thread Series Designator: Unf (fine thread) nut thread
