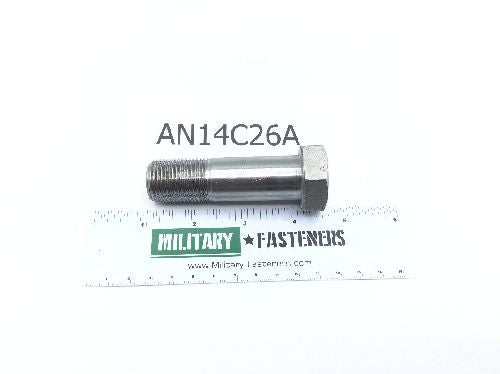

AN14C26A Machine Bolt

Product Series: AN
ECCN: 9A991
Schedule: 7318.15.8085

Price per Unit $117.74

Units per Pack 1

Price per Pack $117.74

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $117.74

Add item to quote

Head Style

Hexagon

Material

Steel comp 431

Surface Treatment

Mil-b-6812 military specification single treatment response

Thread Class

Fastener Length: Between 2.922 inches and 2.969 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.453 inches and 0.485 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Specification Data: 88044-an-14 government specification
Surface Finish: 63.0 microinches grip
Thread Diameter: 0.875 inches
Thread Direction: Right-hand
Thread Length: 1.250 inches
Thread Qty Per Inch (tpi): 14
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 1.240 inches and 1.253 inches
