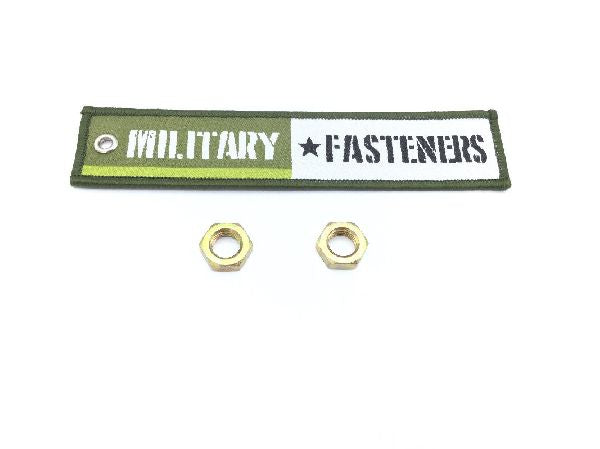

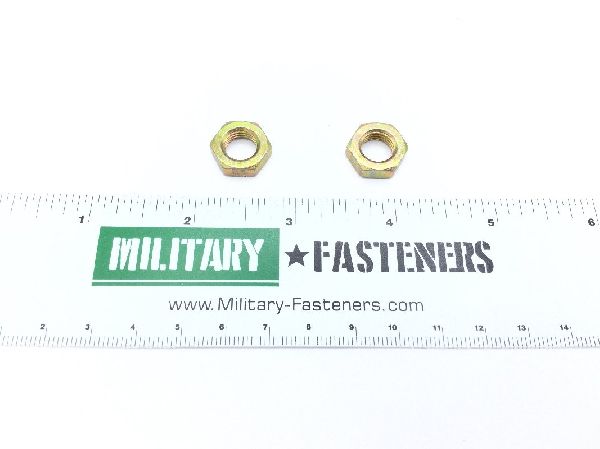

AN150410 Plain Hexagon Nut

Product Series: AN
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $6.24

Units per Pack 10

Price per Pack $62.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $62.40

Add item to quote

Material

Steel comp 8735 or steel comp 8740

Surface Treatment

Ams 2400 assn standard single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Bearing Surface Finish: 60.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut and 92.0 degrees nut
Hardness Rating: Between 19.0 rockwell c and 26.0 rockwell c
Material Specification: Ams6320 assn standard 1st material response or ams6325 assn standard 2nd material response
Nut Height: Between 0.178 inches and 0.198 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.555 inches and 0.564 inches
