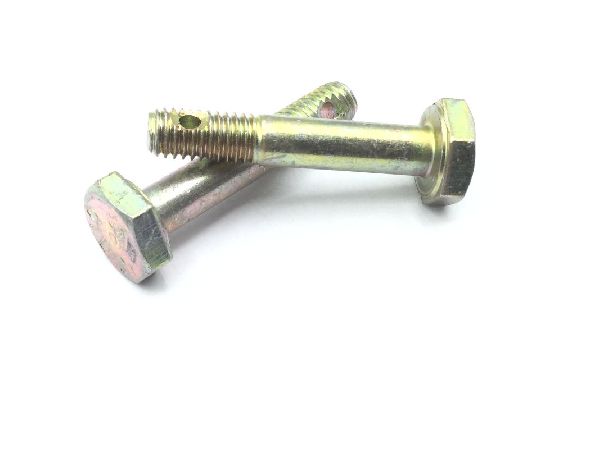

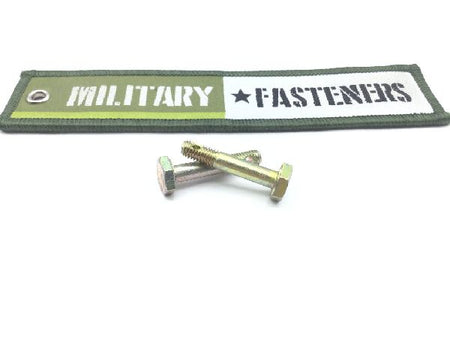

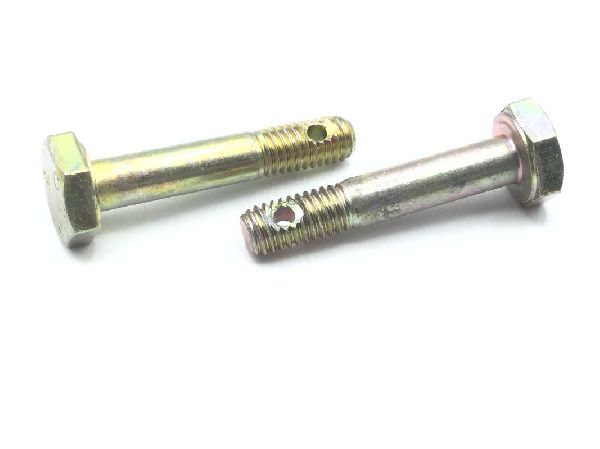

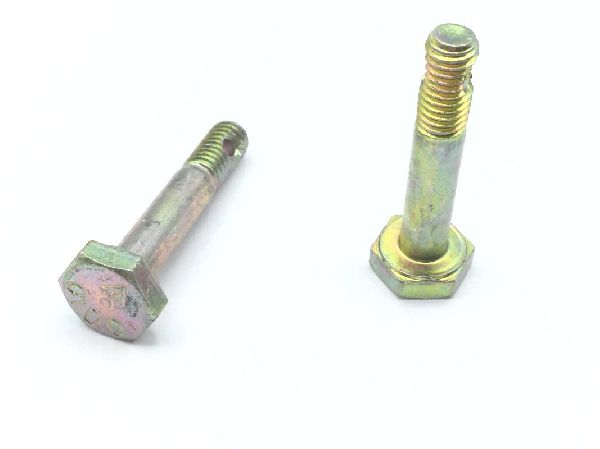

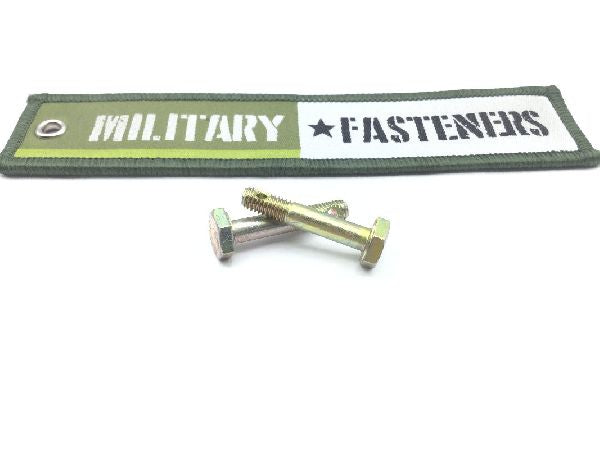

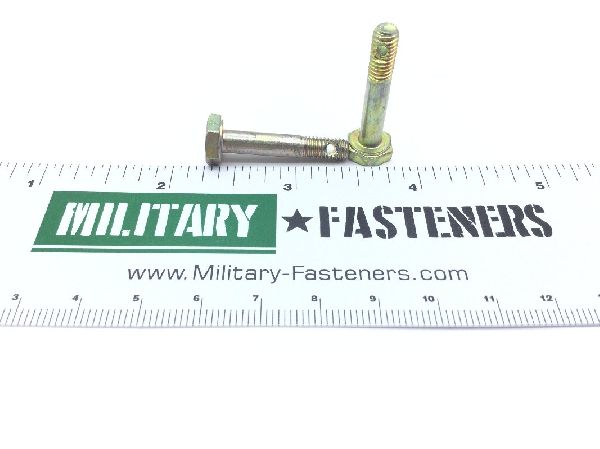

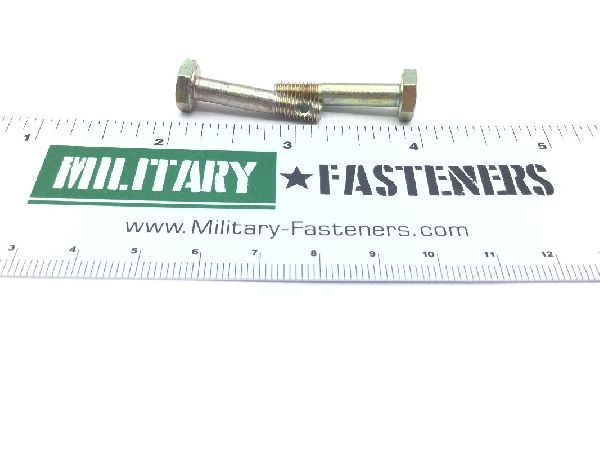

AN173-10 Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $1.73

Units per Pack 20

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Hexagon

Material

Steel comp 8740 or steel comp 8630 or steel comp 8735 or steel comp 4037 or steel comp 4140 or steel comp 4130

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Distance From Head Largest Bearing Surface To Shank Hole Center: 0.891 inches all holes
Fastener Length: Between 1.016 inches and 1.062 inches
Grip Diameter: Between 0.1889 inches and 0.1894 inches
Grip Length: 0.625 inches
Hardness Rating: 26.0 rockwell and 32.0 rockwell
Head Height: Between 0.109 inches and 0.141 inches
Min. Tensile Strength (psi): 125000 pounds per square inch
Shank Unthreaded Hole Diameter: 0.070 inches all holes
Surface Finish: 63.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
