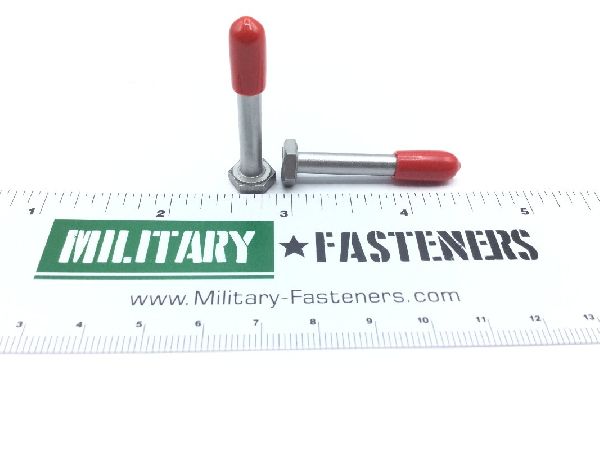

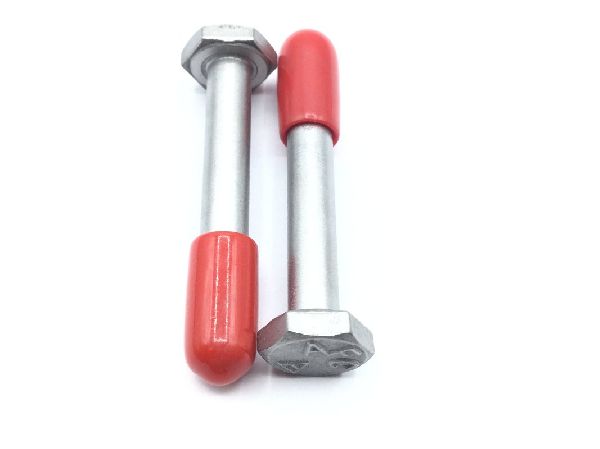

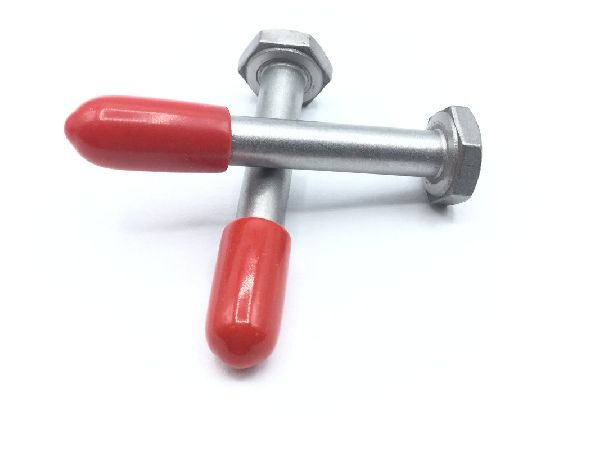

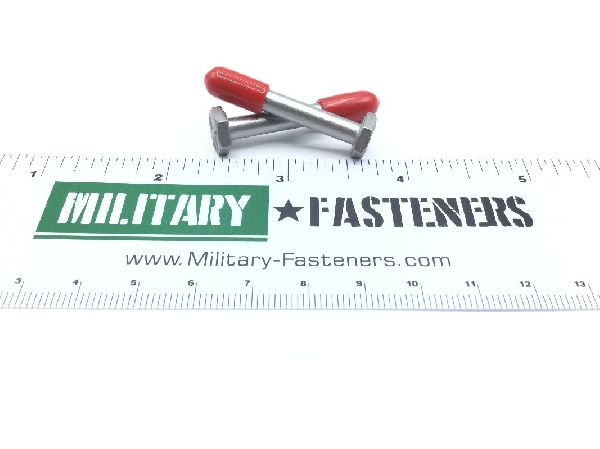

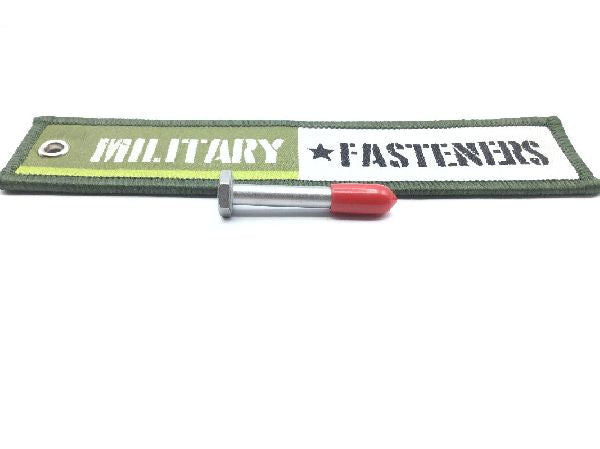

AN173C12A Close Tolerance Bolt

Product Series: AN
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $4.10

Units per Pack 10

Price per Pack $41.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.00

Add item to quote

Head Style

Hexagon

Material

Steel comp 431

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 1.265 inches and 1.312 inches
Grip Diameter: Between 0.1889 inches and 0.1894 inches
Grip Length: Between 0.859 inches and 0.891 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.109 inches and 0.141 inches
Material Specification: Mil-s-18732 military specification single material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.374 inches and 0.453 inches
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.365 inches and 0.377 inches
